  • Black Box Products
Prices listed do not include shipping and/or tax charges. Please call for quote.

Cables > Copper Bulk Cables


click photo to enlarge

EYN0737A-B

Photo may show similar product

Other views

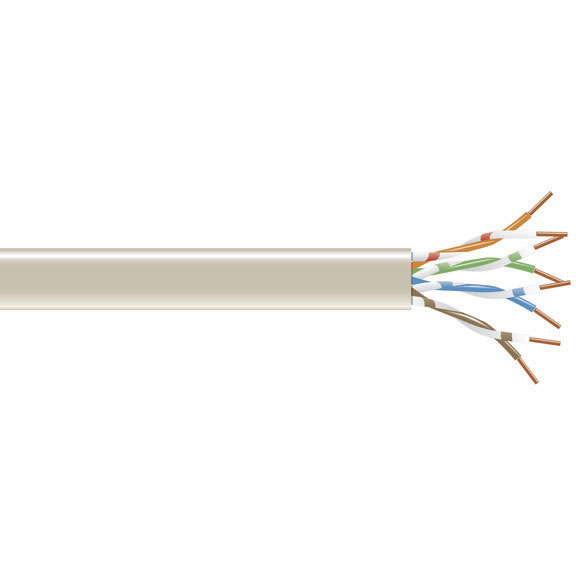

GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Beige, 1000-ft. (304.8-m) Box

High-quality CAT5e cable for 200-MHz runs.

EYN0737A-B

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • The right cable for long horizontal and backbone CAT5e runs.
  • 24-AWG, solid conductor.
  • Guaranteed for life!


  • Description

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Beige, 1000-ft. (304.8-m) Box


    Quick Facts

  • The right cable for long horizontal and backbone CAT5e runs.
  • 24-AWG, solid conductor.
  • Guaranteed for life!

  • Further Details

  • Supports applications such as 10BASE-T, 100BASE-TX, 155-Mbps ATM as well as applications such as 622-Mbps ATM and Gigabit Ethernet. Certified for use in the WideBand™ networking system.
  • Meets or exceeds minimum standards for CAT5e.
  • Tested to 200 MHz.
  • For custom colors, contact our FREE Tech Support.


  • NOTE: Cable comes in a box.

    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • CAT5e Termination Kit
  • CAT5e Modular Plugs
  • Color-coded Flex Plugs and Pre-Plugs
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Beige, 1000-ft. (304.8-m) Box:

    Attenuation (Maximum) 22 dB/100 m typical at 100 MHz
    Cable Type 4-pair UTP
    Capacitance (Nominal) 15 pF/ft. at 1 kHz
    Conductors — 24 AWG, solid copper
    Delay Skew (Maximum) — 45 ns/100 m
    Impedance 100 ± 15 ohms at 100 MHz; 100 ± 25 ohms at 200 MHz
    NEXT (Minimum) 35.3 dB at 100 MHz
    PS-ACR — 11 dB at 100 MHz
    PS-ELFEXT (Minimum) 20.8 dB/100 m at 100 MHz
    PS-NEXT (Minimum) — 32.3 dB at 100 MHz
    Return Loss (Minimum) 20.1 dB at 100 MHz
    Velocity of Propagation (Nominal) 70%
    Weight 22 lb./1000 ft. (10 kg/304.8 m)
    NOTE: Cable comes in a box.

    This product works with:
  • GigaStation High-Density Multimedia Patch Panels
  • GigaBase CAT5e Patch Panels
  • GigaBase CAT5e Jacks
  • GigaBase2 CAT5e Jacks
  • GigaStation Wallplates
  • GigaStation2 Wallplates
  • CAT5e Termination Kit
  • CAT5e Modular Plugs
  • Color-coded Flex Plugs and Pre-Plugs
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Beige, 1000-ft. (304.8-m) Box:


    Connect your GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Beige, 1000-ft. (304.8-m) Box with:

    Accessory: JPM192A

    GigaStation High-Density Multimedia Patch Panel, 24-Port

    GigaStation High-Density Multimedia Patch Panel, 24-Port

    Accessory: FM920

    GigaBase CAT5e Jack, Universal Wiring, Single-Pack, Blue

    GigaBase™ CAT5e Jack, Universal Wiring, Single-Pack, Blue

    Accessory: WP462

    GigaStation Wallplate, 2-Port, Single-Gang, Office White

    GigaStation Wallplate, 2-Port, Single-Gang, Office White

    Accessory: WPT478

    GigaStation2 Wallplate, 6-Port Single-Gang, Ivory

    GigaStation2 Wallplate, 6-Port Single-Gang, Ivory

    Accessory: FMTP5E-50PAK

    CAT5e Modular Plugs, RJ-45, 50-Pack

    CAT5e Modular Plugs, RJ-45, 50-Pack

    Accessory: FMT717

    Color-Coded Snagless Pre-Plug - Blue, 50-Pack

    Color-Coded Snagless Pre-Plug - Blue, 50-Pack

    Double Diamond Warranty

    Extended LIFETIME Warranty Available


    Protect your purchase with an additional LIFETIME Double Diamond™ warranty!
    Cost: $0.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Beige, 1000-ft. (304.8-m) Box comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, 500-ft. (152.4-m), Beige EYN0737A-0500 $219.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, Plenum, 1000-ft. (304.8-m), Beige EYN0738A-1000 $445.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, (Box) 1000-ft. (304.8-m), Blue EYN0739A-B $298.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Blue, 1000-ft. (304.8-m) EYN0739A-R $284.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, (Box), Green, 1000-ft. (304.8-m) EYN0740A-B $284.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, (Box) 1000-ft. (304.8-m), Yellow EYN0742A-B $284.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, 1000-ft. (304.8-m), Yellow EYN0742A-R $284.95

    GigaBase 200 CAT5e, 200-MHz Bulk Cable, PVC, Custom Lengths, Beige EYN737A $0.20
    GigaBase 200 CAT5e, 200-MHz Bulk Cable, Plenum, Custom Lengths, Beige EYN738A $0.43
    GigaBase 200 CAT5e, 200-MHz Bulk Cable, Plenum, 1000-ft. (304.8-m), Yellow EYN744A-1000 $258.95
    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $284.95

    Quantity Available: 14

    Quantity

    Warranty

    Total

    (14 available)

    Shipping Info

    Weight: 21 lbs.
    HxWxD: 13.5 x 10 x 14.5 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
