Testers & Tools > Testers

click photo to enlarge

FOFSCA

Photo may show similar product

Other views

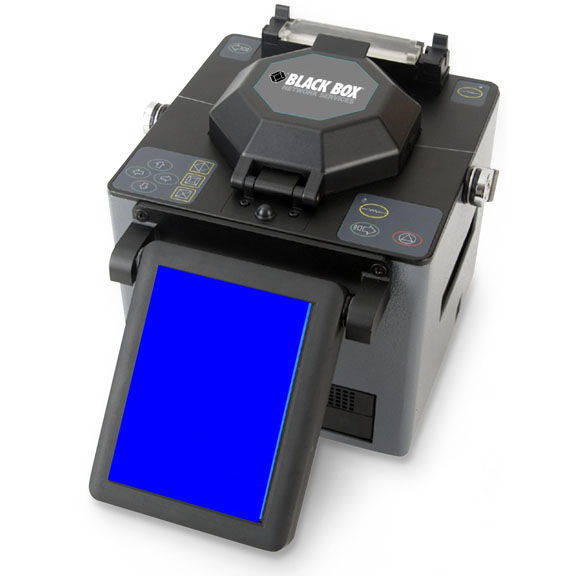

Fusion Splicer with Core Alignment

Get free calibration for three years with this economically smart splicer.

FOFSCA

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Free annual calibration and cleaning for three years.
  • Get performance associated with much higher priced splicers.
  • Automatically aligns the core.


    • Description

    Fusion Splicer with Core Alignment


    Quick Facts

  • Free annual calibration and cleaning for three years.
  • Get performance associated with much higher priced splicers.
  • Automatically aligns the core.

    • Further Details

  • Boasts a reversible color LCD monitor with a control panel on each side.
  • Features 256 magnification.
  • Maximum wind velocity is 15 m/s.
  • Offers 8-second splice times and 40-second tube-heat times.
  • Has simultaneous X and Y axis views.
  • The large-capacity internal battery works for 200 splices.
  • A system test ensures optimal performance.
  • Automatically checks the fiber end face.
  • Automatically calibrates parameters.
  • Stores 8000 splice results.
  • For more details, contact our FREE Tech Support.

    • The Fusion Splicer with Core Alignment offers you functionality and features associated with much more expensive splicers. Plus, you also get free calibration and cleaning once a year for three years. The dual-axis view and reversible color monitor with control panels on each side ensures you’ll make quality, efficient splices. The Splicer is designed to work with all types of fiber cable.


    Technical Specifications for Fusion Splicer with Core Alignment:

    Auto Calibrate — Yes
    Auto Check Fiber End Face— Yes
    Camera Axis — X and Y axis
    Cladding — 100–150-µm
    Cleaved Length —16 mm (standard)
    Coating —100–1000-µm
    Data Storage — 8000 splices
    Fiber Type —Multimode and single-mode, dispersion shifted (DS), non-zero dispersion shifted (NZ-DS), and erbuim doped fiber (EDF)
    Languages—English, Spanish, Russian, Chinese, Korean
    Protection Sleeve Length — 20 mm, 40 mm, 60 mm
    Splice Loss (Average) — Multimode: 0.01 dB;
    Single-mode: 0.02 dB;
    DS and NZDS: 0.04 dB
    Splicing Mode —Auto, manual
    Temperature — Operating: -13 to +122° F (-25 to +50° C);
    Storage: -40 to +176° F (-40 to +80° C)
    Tension Test — 2.0 N (standard)
    Time — Heater: 40 seconds (best);
    Splice: 8 seconds
    User Programmable— Yes
    Wind Velocity (Maximum) — 15 mph
    Interface— RS-232, video output (VGA)
    Power — Internal 12V battery (200 splices; DC adapter)
    Size — 5.5"H x 6.5"W x 6.5"D (13.9 x 16.5 x 16.5 cm)
    Weight — 7.3 lb. (3.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
