Cabinets & Racks > Open Racks

click photo to enlarge

RM082A

Photo may show similar product

Other views

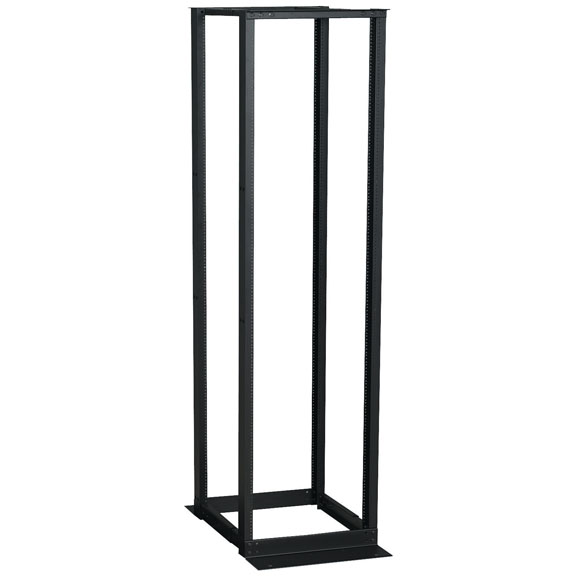

Freedom Rack Plus with 12-24 Rails, 38U, 19"

Freedom and flexibility in an adjustable 6-foot-high rack with 12-24 rails.

RM082A


Lifetime Warranty

Product Highlights

  • Weight capacity of 2500 pounds.
  • A four-post 19" adjustable rack with 12-24 rails.
  • Combines the economy and accessibility of a rack with the mounting capacity and shape of a cabinet.
  • Guaranteed for life!

  • Description

    Freedom Rack Plus with 12-24 Rails, 38U, 19"


    Quick Facts

  • Weight capacity of 2500 pounds.
  • A four-post 19" adjustable rack with 12-24 rails.
  • Combines the economy and accessibility of a rack with the mounting capacity and shape of a cabinet.
  • Guaranteed for life!

  • Further Details

  • Change the depth in this adjustable four-post rack in 1" increments from 17" to more than 41" to fit different equipment.
  • Open design provides you with access to all sides of mounted equipment and cables when troubleshooting.
  • Cross-connects aren’t hindered by cabinet walls.
  • Strong enough to hold heavy servers and equipment up to 2500 pounds.
  • Holds 19" wide servers, panels, and other components.
  • Has 12-24 (tapped hole) rails. The 5/8", 5/8", and 1/2" spaced hole pattern meets EIA standards.
  • Uprights and top and bottom angles are constructed of lightweight 6063-T6 alloy extruded aluminum, so setup or relocation isn’t a back-breaking job.
  • Ships to you unassembled, allowing for easy transport to a job site.
  • Predrilled mounting holes at the base enable you to anchor the rack to the floor for a safe and secure installation.
  • Link multiple racks side-to-side with the joining kit (order separately). Waterfall kit and various shelves also available.
  • Smooth black polyester powder paint finish.
  • UL® 1863 listed.
  • Includes (20) 12-24 mounting screws.


  • Technical Specifications for Freedom Rack Plus with 12-24 Rails, 38U, 19":

    Rack Units (U) — 38U
    Overall Height — 72" (182.9 cm)
    Width — 20.25" (51.43 cm)
    Depth — Adjustable from 17.72 to 41.34" (45 to 104.93 cm) in 1" (2.5-cm) increments
    Rack Load Capacity — 2500 lb.
    Standards — UL® 1863 Listed; EIA 310-D; cUL
    Weight — 65 lb. (29.5 kg)
    This product works with:
  • Freedom Rack Plus Waterfall Kit
  • Freedom Rack Plus Vented Shelves
  • Freedom Rack Plus Keyboard Shelf
  • Freedom Rack Plus Joining Kit
  • 19" Sliding, Pivoting Keyboard Tray with Side Mouse Tray
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
