FTK1000

Photo may show similar product

Other views

Fluke Networks SimpliFiber Pro Multimode Fiber Verification Kit

The fiber-loss tester with advanced time-saving features.

FTK1000

Extended Double Diamond™ Warranty Available
(30 DAY)

Product Highlights

  • Completes testing in half the time!

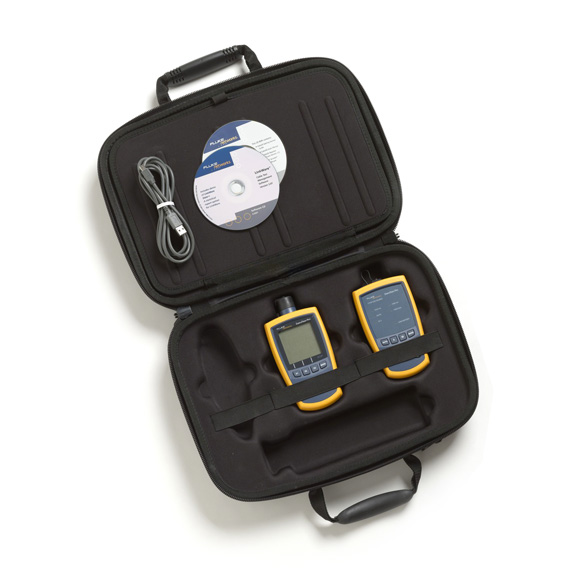

  • Includes the SimpliFiber ®Pro optical power meter, 850/1300 multimode source, carrying case, and an SC power-meter adapter.

  • Description

    Fluke Networks SimpliFiber Pro Multimode Fiber Verification Kit


    Quick Facts

  • Completes testing in half the time!
  • Includes the SimpliFiber ®Pro optical power meter, 850/1300 multimode source, carrying case, and an SC power-meter adapter.

  • Further Details

  • The SimpliFiber Pro features single-port, simultaneous dual-wavelength testing, which provides results in half the time.
  • The tester saves measurements from both 850- and 1300-nm wavelengths into one record.
  • The CheckActive feature emits an audible tone and displays an icon when the tester detects a live fiber.
  • The FindFiber Remote ID enables you to quickly identify cable connections without the need for another person at the other end of the link.
  • Minimum-maximum capability makes it easy to track intermittent power fluctuations.
  • A large memory enables you to save 1000 results for continuous testing and recording.
  • LinkWare Cable Test Management software helps to analyze test results and create professional test reports.

  • The SimpliFiber Pro from Fluke Networks® is an invaluable helper when you're installing and maintaining fiber optic cable. It provides basic fiber verification capabilities, advanced troubleshooting and inspection, and documented loss and power measurements.


    Technical Specifications for Fluke Networks SimpliFiber Pro Multimode Fiber Verification Kit:

    Optical Power Meter:
    Auto Dual-Wavelength Switching Yes
    Auto-Wavelength Detection Yes
    Calibrated Wavelengths 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm
    Data Storage 1000 records, multiple wavelengths per record
    Detector Type InGaAs
    Display Resolution (dB or dBm): 0.01 dB;
    Update Rate: 1 reading per second
    Display Units: dBm, mW, µW
    Environmental Operating Temperature: +14 to +122° F (-10 to +50° C);
    Storage Temperature: -4 to +122° F (-20 to +50° C);
    Operating Humidity: 95% (+14 to +95° F) Non-Condensing,
    75% (+95 to +104° F) Non-Condensing,
    Uncontrolled: (under +14° F)
    Measurement Range +10 to -52 dBm (850 nm);
    +10 to -60 dBm (1300, 1310, 1490, 1550, 1625 nm)
    Power Measurement Linearity ±0.2 dB at 850 nm (For 850 nm, ±0.2 dB for power from 0 to -45 dBm, ±0.25 dB for power < -45 dBm)
    ±0.1 dB at 1300, 1310, 1490, 1550, 1625 nm (±0.1dB for power from 0 to -55 dBm, ±0.2 dB for power > 0 dBm and < -55 dBm)
    Power Measurement Uncertainty ±0.25 dB (23°C ±2°C, power level -20 dBm, continuous wave, 62.5/125µm at multimode wavelengths, 9/125 µm at 1310, 1490, 1550, and 1625 nm; add 0.1 dB for 1625 nm)
    Connectors (1) USB 2.0; (1) removable SC adapter (ST and LC are also available, for details, contact our FREE Tech Support)
    Power (2) AA alkaline batteries;
    Typical battery life: > 50 hours;
    Automatic power off: 10, 20, 30, or 60 minutes (can be disabled by user)
    Size 1.5"H x 3.2"W x 6.4"L (3.8 x 8.1 x 16.3 cm)
    Weight 0.7 lb. (0.3 kg)
    Warranty 1 year
    Multimode Optical Source:
    Central Wavelength 850 nm, 1300 nm
    Emitter Type LED
    FindFiber Code Generation 1 through 8 (Default is 3)
    Connectors (1) SC
    Power (2) AA alkaline batteries;
    Typical battery life: >80 hours;
    Automatic power off: 30 minutes (can be disabled by user)
    Size 1.6"H x 3.2"W x 5.6"L (4 x 8.1 x 14.2 cm)
    Weight 0.1 lb. (<0.1 kg)
    Warranty 30 days
