Testers & Tools > Testers

click photo to enlarge

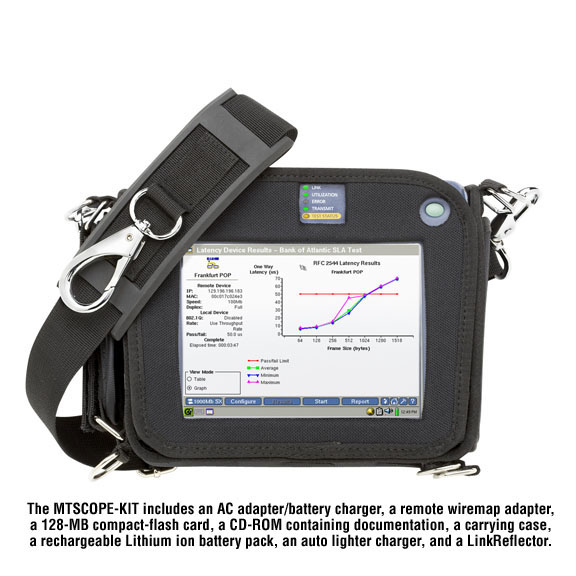

MTSCOPE-KIT

Photo may show similar product

Other views

Fluke Networks® MetroScope Mainframe Kit

Perfect for service providers, this Ethernet tester provides SLA testing, detailed IP analysis, and remote capabilities.

MTSCOPE-KIT


30 DAYS Warranty

Product Highlights

  • Ideal for use by service providers.
  • Provides RFC 2544 SLA testing.
  • Measures jitter and server response time.
  • Enables complete IP analysis.
  • The kit includes a remote LinkReflector unit—use this instead of a second MetroScope to test up to seven links.

  • Description

    Fluke Networks® MetroScope Mainframe Kit


    Quick Facts

  • Ideal for use by service providers.
  • Provides RFC 2544 SLA testing.
  • Measures jitter and server response time.
  • Enables complete IP analysis.
  • The kit includes a remote LinkReflector unit—use this instead of a second MetroScope to test up to seven links.

  • Further Details

  • Supports throughput, latency, frame loss, and back-to-back testing modes for RFC 2544 automated test suite.
  • Monitors traffic and discovers and analyzes active networks.
  • Full VGA color display offers resolution and detail that other handheld testers can’t match.
  • Simply touch the screen to run advanced tests such as VLAN discovery and monitoring.
  • Enables SNMP management.
  • Customizes scripting for optimum testing.
  • Control the tester with a Web browser.

  • When a network connection fails, users expect fast and complete troubleshooting from their service provider. For 10/100/1000BASE-T and 1000BASE-FX Ethernet connections, the Fluke MetroScope Mainframe Kit pinpoints problems to get your network up and running again—fast.

    Via a simple user interface, the MetroScope provides complex testing. Just connect the tester to your copper or fiber network via its 10/100/1000BASE-T RJ-45 or 1000BASE-FX SFP’s dual SC connectors. Or use a Web browser to test a remote network.

    The MetroScope supports throughput, latency, frame loss, and back-to-back testing modes. This enables it to perform RFC 2544 testing. The tester generates customized reports. These reports include data about server response time, physical layer and BERT testing (the tester measures optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage). The tester also provides VLAN monitoring.

    In addition to RFC 2544 testing, you can even test jitter with accuracy in microseconds. This feature gives you SLAs for VoIP and IPTV.

    Because it complies with SLA standards for response time, the tester handles advanced services (think DNS or e-mail). IP analysis monitors traffic to provide troubleshooting for customer or network connections.

    Since the tester supports SNMP, you can query switches and routers, find overloaded ports, and pinpoint offending devices.

    Choose the kit for inexpensive remote testing.

    The kit includes a remote LinkReflector unit—use this instead of a second MetroScope to test up to seven links. You pay only for the cost of the kit, not for two MetroScope testers.

    For remote testing, the kit's LinkReflector unit enables a technician at a customer site to consult with experts remotely using a Web browser.


    Technical Specifications for Fluke Networks® MetroScope Mainframe Kit:

    MetroScope Mainframe:
    Approvals: — MetroScope Mainframe unit: Shock and vibration: MIL-PRF-28800F for Class 3 equipment;
    Safety: CSA, CE, FCC Part 15 Class A, C-TICK N10140;
    AC adapter: UL® listed, CSA approved;
    Other: EMC EN61326, Class A, Criteria C
    SFP Modules Supported — 100BASE-LX, -SX, -ZX, -BX, 100BASE-FX
    Connectors — Testing ports: (1) RJ-45 10/100/1000BASE-T Ethernet, (1) pair of SC on SFP module, Communication ports: (1) USB, (1) PCMCIA (PC Card type II). (1) SFP, (1) CompactFlash (Card Type I/II), (1) DB9 serial, (1) headphone jack, (1) microphone jack, (1) Kensington lock receptacle
    Indicators — (6) LEDs: Power, NEED OTHER 5 LEDs here
    Temperature — Operating: 32 to 122°F (0 to 50°C);
    Storage: -4 to +140°F (-20 to +60°C)
    Battery charging: 50 to 104°F (10 to 40°C);
    Power — AC input: 90 to 264 VAC, 28 to 62 Hz, 1.5 A external AC adapter/battery charger;
    Battery: (1) 7.2 VDC, 4.2 A Lithium ion removable/rechargeable battery (TECH: IS 4.2 A correct?);
    Battery life: Typical: 4 hours; Standby: 10 hours
    Auto charger: 12 V charger (fits in cigarette lighter) with 6-foot (1.8-m) cord (fully extended) and LED power indicator
    Size —  7.5"H x 6"W x 1.75"D (19.1 x 15.2 x 4.4 cm)
    Weight (with battery) — 1.9 lb. (0.9 kg)

    LinkReflector:
    Address Setting — Manual or DHCP
    Cable Tests — Pair lengths, opens, shorts, splits, crossed, straight-through, and cable ID
    Media Access —  10BASE-T, 100BASE-TX, 1000BASE-T (IEEE 802.3), and PoE (IEEE 802.3af)
    Ping — Pings default router automatically, or configure it to ping up to 10 more devices
    Ports — Test: (2) RJ-45; Application: mini-USB, Kensington lock receptacle
    User Controls — (5) pushbuttons, (1) on/off button
    User Interface — Black and white 2" x 1" display
    Tone Generator — Digital tone: 500 kHz; Analog tones: 400 Hz, 1 kHz
    Indicators — (1) Link LED
    Power — (4) AA batteries or Lithium ion battery back with AC charger (included in kit)
    Size — 5.4"H x 3.1"W x 1.3"D (13.5 x 7.9 x 3.3 cm)
    Weight — 0.6 lb. (0.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
