CIQ-100

Photo may show similar product

Other views

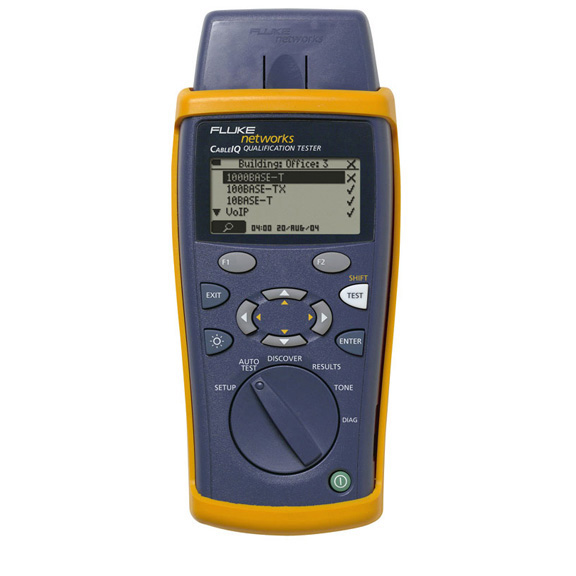

Fluke Networks CableIQ Qualification Tester

Troubleshoot and qualify speed on copper cable.

CIQ-100

Extended Double Diamond™ Warranty Available
(1 Year)

Product Highlights

  • Tests twisted-pair, coax, and audio copper cabling.
  • Qualifies your existing cabling for different bandwidth requirements: 10-/100-/1000-Mbps Ethernet, voice, and VoIP.
  • Pinpoints cable problems so you know where the cable fails.

  • Description

    Fluke Networks CableIQ Qualification Tester


    Quick Facts

  • Tests twisted-pair, coax, and audio copper cabling.
  • Qualifies your existing cabling for different bandwidth requirements: 10-/100-/1000-Mbps Ethernet, voice, and VoIP.
  • Pinpoints cable problems so you know where the cable fails.

  • Further Details

  • Detects the device at the end of the cable and displays its speed, duplex, and pairing.
  • Identifies unused switch ports so you can reallocate them.
  • Maps wiring configurations and shows distance to faults with Intelligent Wiremap.
  • For a complete testing solution, order one of our CableIQ kits (sold separately).

  • Use the CableIQ™ Qualification Tester to quickly troubleshoot cabling problems, so you can efficiently identify and fix cabling deficiencies, such as those caused by network adds and changes. And because the tester works with all UTP Ethernet—10BASE-T, Fast Ethernet, and Gigabit Ethernet—as well as VoIP and voice, it's the ideal tester for most of your copper testing needs.

    What's more, by testing cable at installation, you ensure a smooth transition when upgrading to a faster Ethernet standard.

    The Qualification Tester tests for a wide range of problems.
  • Tests UTP and coax cable.
  • Tests to see how much bandwidth a cable can support and gives you detailed information on bandwidth faults.
  • Shows cable length.
  • Detects and locates switches and shows link configuration (speed/duplex/pairing).
  • Measures crosstalk and impedance.
  • Detects location of large point sources as well as distributed sources.
  • Includes intelligent wiremapping to show the distance to a specific cable fault.
  • Detects duplex settings.
  • Distinguishes between network and cable problems.
  • Compatible with Fluke Networks IntelliTone Pro Probe.
  • Stores up to 250 results so you can later transfer them to a PC through the USB port.

  • The Qualification Tester is easy to use.
  • Intuitive interface.
  • Backlit graphical display for easy viewing.
  • Rotary knob keeps operation simple.
  • Portable, lightweight, rugged design for field use.
  • Safely tests an active network.
  • Long battery life—four AA batteries provide weeks of testing.


  • Technical Specifications for Fluke Networks CableIQ Qualification Tester:

    Cable Types Supported UTP, STP, FTP, SSTP, RG-6, RG-59, audio, security
    Qualification Autotests 1000BASE-T, 100BASE-T, 10BASE-T, VoIP, 1394b S100, Telco, Wiremap only, Coax
    Supported Tests Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection
    Wiremap Detects single wire faults; supports MultiMap mode with up to seven remote office identifiers; draws proportional wire length to breaks; detects split pairs
    Connectors (1) RJ-45, (1) Coax F-Type, (1) USB
    Power Batteries: (4) AA (NEDA 15A, IED LR6) alkaline or (4) AA photo lithium (nickel metal hydride, nickel cadmium);
    Battery life: 20 hours of typical use without backlight on alkaline batteries
    Size 7"H x 3.5"W x 1.75"D (17.8 x 8.9 x 4.5 cm)
    Weight 1.2 lb. (0.6 kg)
    Warranty 1 Year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
