Testers & Tools > Testers

click photo to enlarge

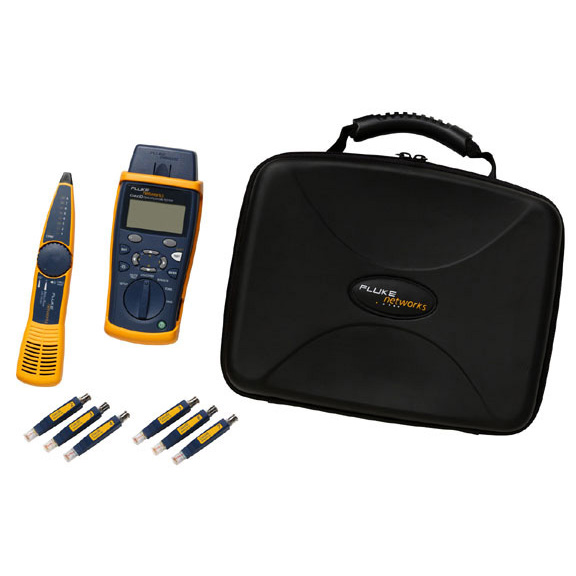

CIQ-KIT

Photo may show similar product

Other views

Fluke Networks CableIQ Advanced IT Kit

Qualify copper cable and ID cables quickly with this convenient kit.

CIQ-KIT


One year Warranty

Product Highlights

  • Tests twisted-pair, coax, and audio copper cabling.
  • Qualifies your existing cabling for different bandwidth requirements: 10-/100-/1000-Mbps Ethernet, voice, and VoIP.

  • Description

    Fluke Networks CableIQ Advanced IT Kit


    Quick Facts

  • Tests twisted-pair, coax, and audio copper cabling.
  • Qualifies your existing cabling for different bandwidth requirements: 10-/100-/1000-Mbps Ethernet, voice, and VoIP.

  • Further Details

  • Pinpoints cable problems so you know where the cable fails.
  • Detects the device at the end of the cable and displays its speed, duplex, and pairing.
  • Identifies unused switch ports so you can reallocate them.
  • Maps wiring configurations and shows distance to faults with Intelligent Wiremap.

  • Use the CableIQ™ Qualification Tester to quickly troubleshoot cabling problems, so you can efficiently identify and fix cabling deficiencies, such as those caused by network adds and changes. And because the tester works with all UTP Ethernet—10BASE-T, Fast Ethernet, and Gigabit Ethernet—as well as VoIP and voice, it’s the ideal tester for most of your copper testing needs. What's more, by testing cable at installation, you ensure a smooth transition when upgrading to a faster Ethernet standard.

    The kit also includes the IntelliTone 200 Probe so you can find cables quickly, even on active networks. The Smart Cable IDs enable you to quickly do up to seven qualification tests without returning to the patch panel. Each Smart ID can perform either a simple wiremap test or a full qualification test.

    The Qualification Tester tests for a wide range of problems.
  • Tests UTP and coax cable.
  • Tests to see how much bandwidth a cable can support and gives you detailed information on bandwidth faults.
  • Shows cable length.
  • Detects and locates switches and shows link configuration (speed/duplex/pairing).
  • Measures crosstalk and impedance.
  • Detects location of large point sources as well as distributed sources.
  • Includes intelligent wiremapping to show the distance to a specific cable fault.
  • Detects duplex settings.
  • Distinguishes between network and cable problems.
  • Compatible with Fluke Networks IntelliTone Pro Probe.
  • Stores up to 250 results so you can later transfer them to a PC through the USB port.

  • The Qualification Tester is easy to use.
  • Intuitive interface.
  • Backlit graphical display for easy viewing.
  • Rotary knob keeps operation simple.
  • Portable, lightweight, rugged design for field use.
  • Safely tests an active network.
  • Long battery life—four AA batteries provide weeks of testing.


  • Technical Specifications for Fluke Networks CableIQ Advanced IT Kit:

    Cable Types Supported — UTP, STP, FTP, SSTP, RG-6, RG-59, audio, security
    Qualification Autotests — 1000BASE-T, 100BASE-T, 10BASE-T, VoIP, 1394b S100, Telco, Wiremap only, Coax
    Supported Tests — Wiremap, length, cable signal performance, digital toner, analog toner, Ethernet port detection and identification, analog telephone detection, blink port light, continuity, speaker test, cable fault finding, video signal detection
    Wiremap — Detects single wire faults; supports MultiMap mode with up to seven remote office identifiers; draws proportional wire length to breaks; detects split pairs
    Connectors — (1) RJ-45, (1) Coax F-Type, (1) USB
    Power — Batteries: (4) AA (NEDA 15A, IED LR6) alkaline or (4) AA photo lithium (nickel metal hydride, nickel cadmium);
    Battery life: 20 hours of typical use without backlight on alkaline batteries
    Size — 7"H x 3.5"W x 1.75"D (17.8 x 8.9 x 4.5 cm)
    Weight — 1.2 lb. (0.6 kg)
    Warranty — 1 year


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
