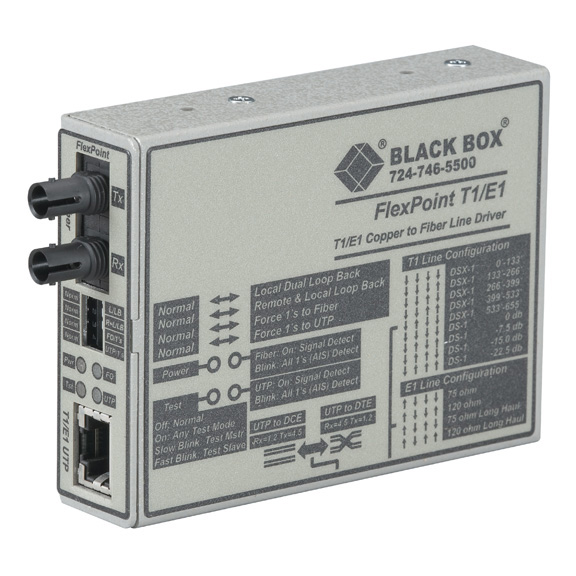

MT661A-SM

Photo may show similar product

Other views

FlexPoint T1/E1 to Fiber Line Driver, Single-Mode, 28 km, ST

Use fiber cabling to extend T1/E1 communications as far as 28 kilometers!

MT661A-SM

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Works as a standalone or hot-swappable chassis-based extender.
  • Includes an AC power supply. Or you can power multiple FlexPoint units with the space-saving 19" rackmountable FlexPoint Power Chassis, which holds 14 converters and AC or DC power supplies.


  • Description

    FlexPoint T1/E1 to Fiber Line Driver, Single-Mode, 28 km, ST


    Quick Facts

  • Works as a standalone or hot-swappable chassis-based extender.
  • Includes an AC power supply. Or you can power multiple FlexPoint units with the space-saving 19" rackmountable FlexPoint Power Chassis, which holds 14 converters and AC or DC power supplies.

  • Further Details

  • Easy to install.
  • Connects T1 or E1 PBXs, CSUs, or routers over fiber to protect against noise and increase network reliability.
  • Supports AMI, B8ZS, and HDB3 line codes.
  • A crossover switch on the RJ-45/RJ-48 port enables easy equipment connections.
  • Extensive diagnostics, including local and remote fiber loopback switches.
  • LEDs display T1/E1 link status, modes of operation, and line segment errors.
  • To conveniently rackmount up to five FlexPoint Fiber Converters, use the optional 5-Position Rackmounting Kit (LMC205). To order, see "Related Products".
  • Use optional Wallmounting Hardware (LMC206-WALL) to mount individual FlexPoint Fiber Converters on virtually any surface (also available under "Related Products".)

  • Use this flexible converter/line driver to connect your T1 or E1 devices to single-mode fiber to get extra distance, as well as protection from environmental noise.

    FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.

    The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

    Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.
    NOTE: Must be used in pairs.

    This product works with:
  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
    Also be sure to see the rest of the FlexPoint family:
  • FlexPoint 10BASE-T to BNC Media Converter (LMC210A)
  • FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3, etc.)
  • FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
  • FlexPoint Gigabit UTP to Fiber Media Converters (LMC1003A-R3, etc.)
  • FlexPoint Token Ring UTP to Fiber Media Converters (LTM215A)
  • FlexPoint 100-Mbps Multimode to Single-Mode Converters (LMC252A-ST, etc.)
  • FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters (LMC1001A, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST, etc.)
    Questions? Contact our FREE Tech Support.


  • Technical Specifications for FlexPoint T1/E1 to Fiber Line Driver, Single-Mode, 28 km, ST:

    Encoding AMI, B8ZS, HDB3
    Fiber Type 50/125-, 62.5/125-, or 9/125-µm single-mode
    Operation Asynchronous, point-to-point
    Speed (Maximum) T1: 1.544 Mbps;
    E1: 2.048 Mbps
    CE Approval Yes
    Connectors Network side: RJ-45/RJ-48 (selectable);
    Fiber side: (1) pair of ST
    Power 110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from Power Chassis
    Size 1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
    Weight 0.4 lb. (0.2 kg)
    NOTE: Must be used in pairs.

    This product works with:
  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
    Also be sure to see the rest of the FlexPoint family:
  • FlexPoint 10BASE-T to BNC Media Converter (LMC210A)
  • FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3, etc.)
  • FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
  • FlexPoint Gigabit UTP to Fiber Media Converters (LMC1003A-R3, etc.)
  • FlexPoint Token Ring UTP to Fiber Media Converters (LTM215A)
  • FlexPoint 100-Mbps Multimode to Single-Mode Converters (LMC252A-ST, etc.)
  • FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters (LMC1001A, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST, etc.)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for FlexPoint T1/E1 to Fiber Line Driver, Single-Mode, 28 km, ST:

    Manuals

    • FlexPoint T1/E1 to Fiber Line Driver
      Installation and User Guide (Mar-06)
    • FlexPoint T1/E1 to Fiber Line Driver
      Installation and User Guide (Dec-04)

    Product Data Sheets

    Black Box Explains


    Connect your FlexPoint T1/E1 to Fiber Line Driver, Single-Mode, 28 km, ST with:
