Networking > Media Converters

click photo to enlarge

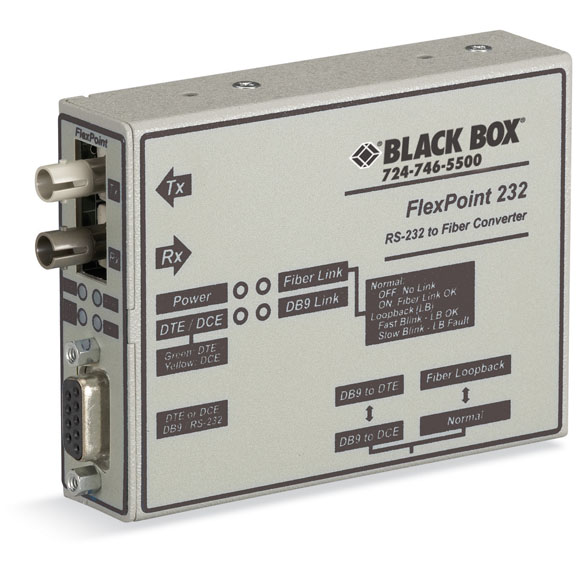

ME661A-MRJ

Photo may show similar product

Other views

FlexPoint RS-232 to Fiber Converter, 1310-nm Multimode, 5 km, MT-RJ

Extend RS-232 communications up to 5 kilometers on multimode fiber.

ME661A-MRJ

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Works as a standalone converter or as a hot-swappable chassis-mount converter in a FlexPoint Media Converter Chassis.
  • Works as serial RS-232 fiber converter and extender.
  • Supports distances to 5 kilometers (3.1 miles).

  • Description

    FlexPoint RS-232 to Fiber Converter, 1310-nm Multimode, 5 km, MT-RJ


    Quick Facts

  • Works as a standalone converter or as a hot-swappable chassis-mount converter in a FlexPoint Media Converter Chassis.
  • Works as serial RS-232 fiber converter and extender.
  • Supports distances to 5 kilometers (3.1 miles).

  • Further Details

  • Autosenses speeds up to 115.2 kbps.
  • Works as a standalone or a hot-swappable chassis-based extender.
  • Easy to install.
  • Includes a DC power supply. Or you can power multiple units with the space-saving 19" rackmountable FlexPoint Power Chassis.
  • Features DTE/DCE configuration for easy connections to DTE or DCE devices using straight-through cabling.
  • Supports half- and full-duplex.
  • Remote loop capability for remote fiber testing and LEDs for status monitoring.


  • Technical Specifications for FlexPoint RS-232 to Fiber Converter, 1310-nm Multimode, 5 km, MT-RJ:

    Flow Control — Software: X-ON, X-OFF;
    Hardware: RTS, CTS, DCD, DCR
    Operation — Asynchronous, point-to-point
    Speed (Maximum) — 115.2 kbps
    CE Approval — Yes
    Connectors — RS-232 side: DB9 F;
    Fiber side: (1) pair of MT-RJ
    Power — From the included DC power supply (9 VDC/500 mA or 5 VDC/750 mA); or from the FlexPoint Power Chassis
    Size — 1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
    Weight — 0.4 lb. (0.2 kg)

    This product works with:
  • FlexPoint 14-Port Power Chassis (LMC200)
  • FlexPoint 5-Position Mounting Kit (LMC205)
  • Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for FlexPoint RS-232 to Fiber Converter, 1310-nm Multimode, 5 km, MT-RJ:

    Manuals

    • FlexPoint RS-232 to Fiber Converter, Multimode, 2.5 km, SC
      Installation and User Guide

    Product Data Sheets

    Black Box Explains


    Connect your FlexPoint RS-232 to Fiber Converter, 1310-nm Multimode, 5 km, MT-RJ with:

    Accessory: LMC200-2PS

    FlexPoint 14-Slot Power Chassis, Dual AC Power Supplies

    FlexPoint 14-Slot Power Chassis, Dual AC Power Supplies

    Accessory: LMC200

    FlexPoint 14-Slot Power Chassis, Single AC Power Supply

    FlexPoint 14-Slot Power Chassis, Single AC Power Supply

    Accessory: LMC205

    FlexPoint Modular Media Converter 5-Position Rackmount Kit

    FlexPoint Modular Media Converter 5-Position Rackmount Kit

    Accessory: LMC204A

    FlexPoint DC Power Converter, 18 VDC to 72 VDC

    FlexPoint DC Power Converter, 18 VDC to 72 VDC

    Accessory: LMC206-WALL

    FlexPoint Wallmounting Hardware

    FlexPoint Modular Media Converter Wallmounting Hardware

    Accessory: LMC207-DRM

    FlexPoint DIN Rail Mounting Kit

    FlexPoint DIN Rail Mounting Kit
