Networking > Media Converters


click photo to enlarge

LMC1006A-R3

Photo may show similar product

Other views

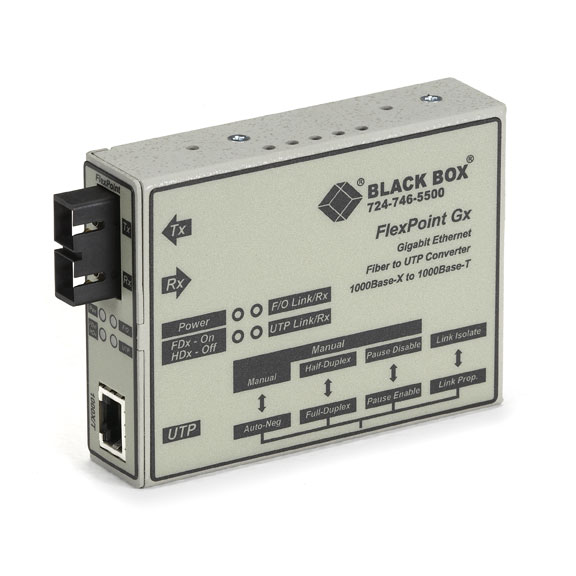

FlexPoint Modular Media Converter, 1000BASE-T to 1000BASE-ZX, 1550-nm Single-Mode, 65 km, SC

Extend your Gigabit Ethernet network up to 65 kilometers over fiber.

LMC1006A-R3

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Easy installation and transparent operation—no software required.
  • Convert your copper Gigabit Ethernet network to fiber.
  • Supports 1000BASE-T and 1000BASE-ZX standards.
  • Both UTP and fiber ports support full- and half-duplex operation.


  • Description

    FlexPoint Modular Media Converter, 1000BASE-T to 1000BASE-ZX, 1550-nm Single-Mode, 65 km, SC


    Quick Facts

  • Easy installation and transparent operation—no software required.
  • Convert your copper Gigabit Ethernet network to fiber.
  • Supports 1000BASE-T and 1000BASE-ZX standards.
  • Both UTP and fiber ports support full- and half-duplex operation.

  • Further Details

  • Sends data up to 65 kilometers (40.3 mi.) on single-mode fiber.
  • Manual switches give you the option to control port operation.
  • Diagnostic LEDs report power availability and status of attached devices.
  • Hardware available for mounting the converter to a wall or a DIN rail.
  • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.

  • This FlexPoint Modular Media Converter provides plug-and-play conversion from 1000-Mbps UTP to 1000-Mbps fiber.

    FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.

    The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

    Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies.


    This product works with:
  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
  • FlexPoint DC Power Converter (LMC204A)

    Also be sure to see the rest of the FlexPoint family:
  • FlexPoint 10BASE-T to BNC Media Converter (LMC210A)
  • FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3, etc.)
  • FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
  • FlexPoint Token Ring UTP to Fiber Media Converter (LTM215A)
  • FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
  • FlexPoint 100-Mbps Fiber to Fiber Converters (LMC252A-ST, etc.)
  • FlexPoint 1000-Mbps Fiber to Fiber Mode Converters (LMC1001A, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST, etc.)
  • FlexPoint T1/E1 Copper to Fiber Line Drivers (MT660A-MM, etc.)
  • FlexPoint RS-232 to Fiber Converters (ME660A-MST, etc.)
    Questions? Contact our FREE Tech Support.


  • Technical Specifications for FlexPoint Modular Media Converter, 1000BASE-T to 1000BASE-ZX, 1550-nm Single-Mode, 65 km, SC :

    CE Approval Yes
    Power 110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from Power Chassis
    Size 1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
    Weight 0.4 lb. (0.2 kg)

    This product works with:
  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
  • FlexPoint DC Power Converter (LMC204A)

    Also be sure to see the rest of the FlexPoint family:
  • FlexPoint 10BASE-T to BNC Media Converter (LMC210A)
  • FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3, etc.)
  • FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
  • FlexPoint Token Ring UTP to Fiber Media Converter (LTM215A)
  • FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
  • FlexPoint 100-Mbps Fiber to Fiber Converters (LMC252A-ST, etc.)
  • FlexPoint 1000-Mbps Fiber to Fiber Mode Converters (LMC1001A, etc.)
  • FlexPoint Fiber-to-Fiber Mode Converters for ATM OC-3 and OC-12 (LMC156A-ST, etc.)
  • FlexPoint T1/E1 Copper to Fiber Line Drivers (MT660A-MM, etc.)
  • FlexPoint RS-232 to Fiber Converters (ME660A-MST, etc.)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for FlexPoint Modular Media Converter, 1000BASE-T to 1000BASE-ZX, 1550-nm Single-Mode, 65 km, SC :

    Manuals

    • FlexPoint Modular Media Converter Manual
      Manual for LMC1003A-R3, LMC1003AE-R3, LMC1004A-R3, LMC1004AE-R3, LMC1005A-R3, LMC1005AE-R3, LMC1006A-R3, LMC1006AE-R3, LMC1007A-R3, LMC1007AE-R3, LMC1008A-R3, LMC1008AE-R3, LMC1009A-R3, LMC1009AE-R3, LMC1010A-R3, LMC1010AE-R3, LMC1011A-R3, LMC1011AE-R3, L (Version 2)
