Networking > Media Converters


click photo to enlarge

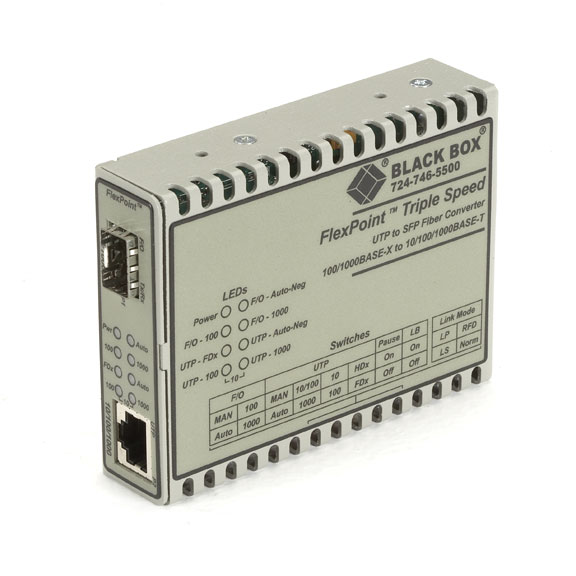

LMC1017A-SFP

Photo may show similar product

Other views

FlexPoint Media Converter - 10BASE-T/100BASE-TX/1000BASE-T to 100BASE-X/1000BASE-X SFP

Get SFP flexibility when extending copper Gigabit Ethernet over fiber.

LMC1017A-SFP

Extended Double Diamond™ Warranty Available (3 Additional Year)

Product Highlights

  • Convert your copper 10-/100-/1000-Mbps network to 100-Mbps or Gigabit-speed fiber.
  • Equipped with modular SFP slot for your choice of fiber transceiver.
  • Easy installation and transparent operation—no software required.


  • Further Details

  • Enables you to send data much farther and more securely than what's possible for copper Ethernet.
  • Autonegotiates for speed to achieve the best possible mode of operation.
  • UTP port supports full- and half-duplex operation.
  • To prevent congestion, supports automatic and manual pause function for flow control.
  • Supports jumbo frames up to 10,240 bytes.
  • Remote fault indicators signal loss of link for far-end fault and link fault conditions.
  • Loopback mode supports end-to-end testing.
  • Manual switches give you the option to control port operation.
  • Hardware available for mounting the converter to a wall or a DIN rail.
  • Can also be used in the FlexPoint 14-Slot Power Chassis or the FlexPoint 5-Position Rackmount Kit.
  • RoHS compliant.

  • FlexPoint™ Media Converters from Black Box are versatile and cost-effective standalone converters that provide the ultimate in flexibility and reliability for your expanding LAN.

    The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

    Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC or DC power supplies.

    The model featured here connects to 10-, 100-, or 1000-Mbps Ethernet on the copper side and to your choice of optical fiber on the SFP transceiver side, depending on what you require for fiber type, speed, and distance. The media converter supports duplex and single-fiber 155- and 1250-Mbps SFPs for standard communications as well as CWDM wavelengths for increased fiber bandwidth capacity.

    For easy installation and troubleshooting, LEDs indicate the availability of power, port activity and link status, and duplex mode. Remote fault indicators signal loss of link for far-end fault and link fault conditions. Detection of these indicators or link modes can be propagated to the other port to notify connected end devices of faults.

    This product works with:
  • FlexPoint Power Chassis (LMC200A)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
    Questions? Contact our FREE Tech Support.

  • Approvals CE
    Power 110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from optional FlexPoint Power Chassis; 9 watts maximum
    Dimensions 1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
    Weight 0.4 lb. (0.2 kg)

    This product works with:
  • FlexPoint Power Chassis (LMC200A)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

  • Manuals

    • FlexPoint Media Converter User Manual
      User Manual for the LMC1017A-SFP, LMC1017A-MMST, LMC1017A-MMSC, LMC1017A-SMST, LMC1017A-SMSC, LMC1017A-SMSC-LH, & LMC1017AE (Version 1)

    Black Box Explains


    Accessory: LMC206-WALL

    FlexPoint Wallmounting Hardware

    FlexPoint Modular Media Converter Wallmounting Hardware

    Accessory: LMC207-DRM

    FlexPoint DIN Rail Mounting Kit

    FlexPoint DIN Rail Mounting Kit

    Accessory: LFP402

    SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, 2 km, LC

    SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, 2 km, LC

    Accessory: LFP403

    SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, Plus, 30 km, LC

    SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, Plus, 30 km, LC

    Accessory: LFP411

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 550 m

    Accessory: LFP413

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 10 km

    Accessory: LFP401

    SFP, 155-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 2 km

    SFP, 155-Mbps Fiber with Extended Diagnostics, 850-nm Multimode, LC, 2 km

    Accessory: LFP404

    SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, Plus, 60 km, LC

    SFP, 155-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, Plus, 60 km, LC

    Accessory: LFP412

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, LC, 2 km

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Multimode, LC, 2 km

    Accessory: LFP414

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 30 km

    SFP, 1250-Mbps Fiber with Extended Diagnostics, 1310-nm Single-Mode, LC, 30 km

    Double Diamond Warranty
    Extended Double Diamond™ Warranty Available (3 Additional Year)
    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The FlexPoint Media Converter - 10BASE-T/100BASE-TX/1000BASE-T to 100BASE-X/1000BASE-X SFP comes with a standard 2 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    FlexPoint Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-SX, Multimode ST, 550 m LMC1017A-MMST $701.90

    FlexPoint Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-SX, Multimode SC, 550 m LMC1017A-MMSC $701.90

    FlexPoint Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-LX, Single-Mode ST, 12 km LMC1017A-SMST $791.80

    FlexPoint Media Converter, 10BASE-T/100BASE-TX/1000BASE-T to 1000BASE-LX, Single-Mode SC, 12 km LMC1017A-SMSC $791.80



    Add to Cart

    Price: $756.63

    Quantity Available: 13

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.937 lbs.
    HxWxD: 3.2 x 4.25 x 6.75 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
