Networking > Media Converters

click photo to enlarge

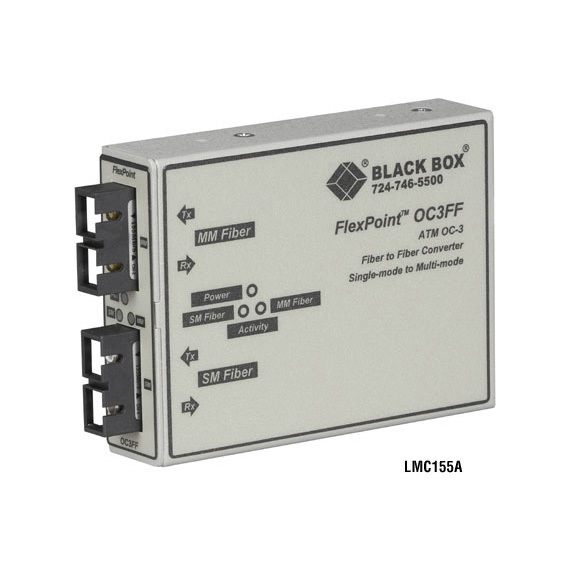

LMC155A

Photo may show similar product

Other views

FlexPoint Fiber-to-Fiber Mode Converter, ATM OC-3, 1300-nm Multimode to 1300-nm Single-Mode, 5 km to 28 km, SC to SC

Add distance to your ATM network by converting multimode to single-mode fiber.

LMC155A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Easy installation and transparent operation—no software required.
  • LEDs on each media converter display status.

  • Description

    FlexPoint Fiber-to-Fiber Mode Converter, ATM OC-3, 1300-nm Multimode to 1300-nm Single-Mode, 5 km to 28 km, SC to SC


    Quick Facts

  • Easy installation and transparent operation—no software required.
  • LEDs on each media converter display status.

  • Further Details

    This FlexPoint Mode Converter for ATM OC-3 converts multimode to single-mode fiber and supports OC-3 standards over ATM networks as well as the Synchronous Optical NETwork (SONET). It’s perfect for extending line drops in large corporations, regional and national telco switching offices, and other intercampus telecommunication systems. The multimode port supports distances up to 5 kilometers (3.1 mi.); the single-mode port supports up to 28 kilometers (17.3 mi.). The converter is protocol transparent at speeds from 1 Mbps to 155 Mbps.

    FlexPoint™ Converters from Black Box are versatile and cost-effective standalone converters that you can upgrade to a chassis-based system. They provide the ultimate in flexibility and reliability for your expanding multimedia LAN.

    The incredible variety and versatility of this system make it ideal for networks that are subject to constant upgrades and changes.

    Tailor the system to your requirements. Get the converters you need now and use them individually. Then, when your LAN grows, mount your converters on the wall, in the FlexPoint 5-Position Rackmounting Kit, or in the FlexPoint Power Chassis. The chassis holds 14 converters and single or dual AC power supplies.


    Technical Specifications for FlexPoint Fiber-to-Fiber Mode Converter, ATM OC-3, 1300-nm Multimode to 1300-nm Single-Mode, 5 km to 28 km, SC to SC:

    CE Approval — Yes
    Connectors — (2) pairs of SC
    Power — 110-VAC, 60-Hz, external power supply (230-VAC, 50-Hz version on request) or from Power Chassis
    Size — 1"H x 3"W x 4"D (2.5 x 7.6 x 10.2 cm)
    Weight — 0.4 lb. (0.2 kg)

    This product works with:
  • FlexPoint Power Chassis (LMC200A, etc.)
  • FlexPoint 5-Position Rackmounting Kit (LMC205)
  • FlexPoint Wallmounting Hardware (LMC206-WALL)
  • FlexPoint FlexPoint Media Converter DIN Rail Kit (LMC207-DRM)
    Also be sure to see the rest of the FlexPoint family:
  • FlexPoint 10BASE-T to BNC Media Converter (LMC210A)
  • FlexPoint 10BASE-T to 10BASE-FL Media Converters (LMC212A-MM-R3, etc.)
  • FlexPoint 100BASE-TX to 100BASE-FX Media Converters (LMC213A-MMST-R2, etc.)
  • FlexPoint Token Ring UTP to Fiber Media Converters (LTM215A)
  • FlexPoint 10/100 Rate Converters (LMC100A-R2, etc.)
  • FlexPoint Gigabit UTP to Fiber Media Converters (LMC1003A-R3, etc.)
  • FlexPoint 100-Mbps Fiber to Fiber Converters (LMC252A-ST, etc.)
  • FlexPoint 1000-Mbps Fiber to Fiber Mode Converters (LMC1001A, etc.)
  • FlexPoint T1/E1 Copper to Fiber Line Drivers (MT660A-MM, etc.)
  • FlexPoint RS-232 to FIber Converters (ME660A-MST, etc.)
    Questions? Contact our FREE Tech Support.



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
