Video & Multimedia > Extenders


click photo to enlarge

AC446A-RX

Photo may show similar product

Other views

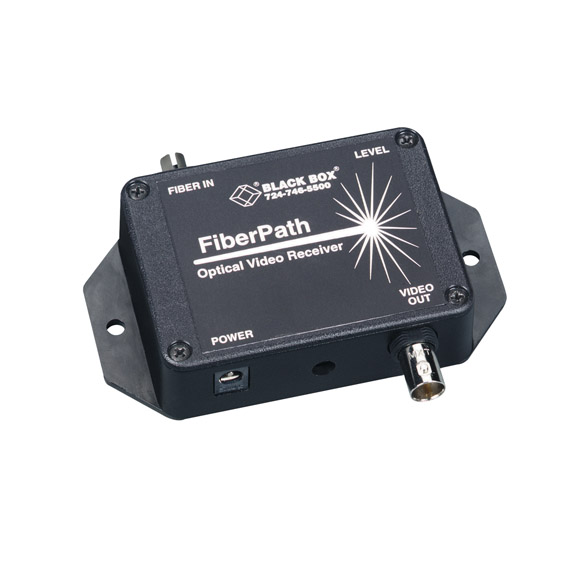

FiberPath Receiver (without Power Supply)

No interference, high bandwidth, and low cost for CCTV to fiber.

AC446A-RX

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Sends video in color or black and white up to 1.5 miles (2.4 km).
  • Operates over standard simplex multimode fiber optic cable.
  • Ideal for long-distance information displays, signs, and security systems.


  • Description

    FiberPath Receiver (without Power Supply)


    Quick Facts

  • Sends video in color or black and white up to 1.5 miles (2.4 km).
  • Operates over standard simplex multimode fiber optic cable.
  • Ideal for long-distance information displays, signs, and security systems.

  • Further Details

  • Compatible with all standard video formats, including NTSC, PAL, and SECAM.
  • Eliminates ground-loop problems.
  • Immune to electrical interference.
  • Easy to install—all you need is a screwdriver.


  • The FiberPath from Black Box is the cost-effective way to transmit video over fiber. It delivers clean, crisp video transmissions by transmitting quality color or black-and-white video over standard multimode fiber optic cable. The FiberPath is ideal for use in both indoor and outdoor industrial environments.

    Your video camera can be up to 1.5 miles (2.4 km) from your video monitor. Simply attach your CCTV camera or other video source to the transmitter with standard coax cable. The FiberPath is compatible with all standard analog video formats, including NTSC, PAL, and SECAM. Then connect terminated fiber optic cable between the transmitter and receiver—all you need is a screwdriver. Once it’s installed, the FiberPath operates without any attention from you for years to come!


    Technical Specifications for FiberPath Receiver (without Power Supply):

    Distance (Maximum) 1.5 miles (2.4 km)
    Optical Loss Budget (Minimum) 12 dB
    Optical Wavelength 850 nanometers
    CE Approval Yes
    Connectors (1) 62.5 µm multimode ST®, (1) BNC coax
    Power 115-VAC, 60-Hz wallmount adapter, not included
    Size 1.08"H x 3.43"W x 4.18"D (2.7 x 8.47 x 10.6 cm)
    NOTE: This replacement receiver must be used with a transmitter.
    NOTE: A replacement transmitter (AC445A-TX) is available separately. NOTE: To get both the transmitter, receiver, and power supplies, order the FiberPath Kit (AC444A).

    This product works with:
    • Multimode, General-Purpose, Breakout-Style Bulk Fiber Optic Cables (EXN050A)
    • Coax Cable, RG-59 PVC (ETN59-BNC)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for FiberPath Receiver (without Power Supply):

    Manuals

    • FiberPath
      Installation/User (May-01)
    • Fiber Path
      Installation and User Guide (Jun-00)

    Product Data Sheets


    Connect your FiberPath Receiver (without Power Supply) with:

    Accessory: EXN0625A-0500

    62.5-Micron Multimode, General-Purpose, Zipcord Duplex, Fiber Optic Bulk Cable, PVC, 500-ft. (152.4-m)

    62.5-Micron Multimode, General-Purpose, Zipcord Duplex, Fiber Optic Bulk Cable, PVC, 500-ft. (152.4-m)

    Accessory: EXN050A

    50-Micron Multimode, General-Purpose, Zipcord Duplex, Fiber Optic Bulk Cable, PVC, Custom Length

    50-Micron Multimode, General-Purpose, Zipcord Duplex, Fiber Optic Bulk Cable, PVC, Custom Length

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $21.70

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $43.39

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    FiberPath Kit AC444A $431.95

    FiberPath Transmitter (without Power Supply) AC445A-TX $216.95

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $216.95

    Quantity Available: 71

    Quantity

    Warranty

    Total

    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 0.687 lbs.
    HxWxD: 3.25 x 6.75 x 9.75 in.
