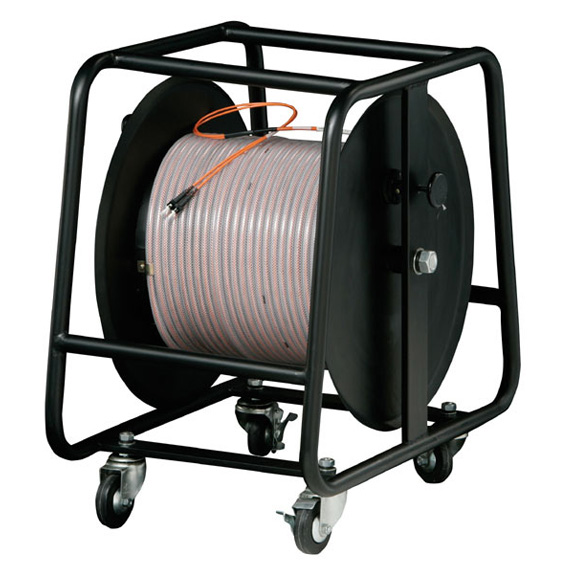

Fiber Snake on a Reel, 91.4-m (300-ft.)

The portable, durable solution for temporary fiber optic connections.

FSRI100M-STST

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • Double-wall tubing is crush-proof up to 3000 pounds (1360.8 kg) to protect fiber cable.
  • Makes temporary fiber optic cable connections easy.
  • Ideal for concerts, rallies, and other events where cable connections are only needed for the short term.
  • Guaranteed for life!
  • more...


    Description

    Fiber Snake on a Reel, Multimode, 62.5-Micron, Duplex, ST–ST, PVC, 91.4-m (300-ft.)


    Quick Facts

  • Double-wall tubing is crush-proof up to 3000 pounds (1360.8 kg) to protect fiber cable.
  • Makes temporary fiber optic cable connections easy.
  • Ideal for concerts, rallies, and other events where cable connections are only needed for the short term.
  • Guaranteed for life!
  • more...

    Further Details

  • Perfect for emergency data center operations where cable runs need to be set up quickly.
  • Use at construction and renovation sites where long-term connections aren't required.
  • Can be used indoors or outdoors.
  • Because fiber cable is immune to EMI/RFI, it's a smart choice for use in industrial and harsh environments.
  • Fiber is extremely lightweight compared to copper, making it easy to transport.
  • Reel makes pulling cable much easier.
  • Frame features heavy-duty wheels with locking casters for safety.

  • Customize your own Fiber Snake on a Reel!
    Need different connectors, fiber counts, single-mode, or specific lengths? No problem. We can customize a Fiber Snake on a Reel for you. Just contact our FREE Tech Support.


    Technical Specifications for Fiber Snake on a Reel, 91.4-m (300-ft.):

    Reel:
    Size Frame: 25"H x 16.25"W X 25.5"D (63.5 x 41.3 x 64.8 cm);
    Flange diameter: 18.75" (47.6 cm);
    Drum diameter: 11.25" (28.6 cm);
    Traverse length: 12.75" (32.4 cm)
    Weight Reel in the box: 62 lb. (28.1 kg)
    Tubing:
    Construction PVC with braided reinforcement
    Crush Resistance Tested to 3000 lb. (1360.8 kg)
    Operating Temperature -10 to +130° F (-23 to +54° C)
    Weight 10.3 lb./100 ft. (4.7 kg/30.4 m)
    Cable:
    Connector Durability = 0.2 dB change, 1000 rematings, FOTP-21
    Connector Tensile Strength = 0.2 dB change, 20 lb. FOTP-6
    Ferrule Ceramic
    Fiber Count 2
    Fiber Type Multimode
    Outer Diameter 5/8" (1.6 cm)
    Standards TIA/EIA 604-2
    Weight 32 lb./300 ft.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Connect your Fiber Snake on a Reel, 91.4-m (300-ft.) with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.



    Add to Cart

    Price: $1,338.95

    Quantity Available: 0

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 83 lbs.
    HxWxD: 27.25 x 19 x 26.5 in.

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
