Fiber Optic Installation Kit

The complete fiber optic installation tool kit.

FT500A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Here's everything you need to make anaerobic fiber terminations.
  • Installation kit includes everything needed to install SC, ST, FC, and many other commercially available connectors.
  • Includes parts for approximately 100 connectors.
  • Anaerobic installation method.

  • Description

    Fiber Optic Installation Kit


    Quick Facts

  • Here's everything you need to make anaerobic fiber terminations.
  • Installation kit includes everything needed to install SC, ST, FC, and many other commercially available connectors.
  • Includes parts for approximately 100 connectors.
  • Anaerobic installation method.

  • Further Details

  • Custom soft-sided zipper case.
  • Low-cost and lightweight.
  • Economical refill kits available.
  • Step-by-step installation manual included.

    This kit is a field installer's dream. It's affordable, compact, and complete! The kit includes everything you need to make high-quality fiber terminations using anaerobic adhesive. It includes the adhesives, polishing tool, crimp tool, strippers, and more.

    Use the Fiber Optic Installation Kit to install approximately 100 connectors. And you can use it with a wide variety of connectors such as 3M, Pine Valley Precision, and Methode.

    Econo Connectors are ST® style connectors with a zirconia ferrule, a metal housing, and a pre-radiused domed end-face for a physical-contact finish. The connector can be installed on breakout- or distribution-style fiber cable.

    To make a termination with the kit, just dip the end of the fiber optic cable into the primer. Then apply the adhesive to the connector using the syringe. The adhesive seizes in about 30 seconds.

    Handy refill kits are available. Or you can choose just to refill the individual parts you need. For details, see "Buying Tips."

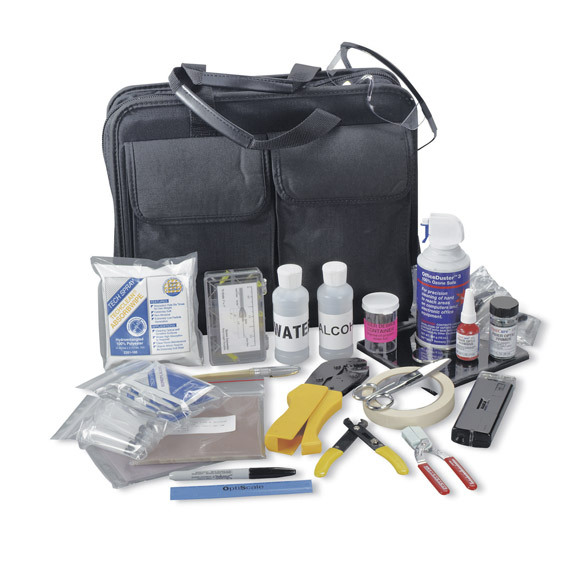

    What's in the Fiber Optic Installation Kit:
    • Crimp tool frame
    • Crimp die
    • Ruler
    • Polishing tool (FT580A)
    • Polishing pad
    • Adhesive, OptiCure™ formula
    • Primer, OptiCure formula
    • Primer stand
    • Cable jacket stripper
    • Strip template
    • (100) wipes, 4 x 4 (FT533A)
    • (50) sheets of 1-µm polishing paper, 5.5"; x 5.5" (FT551A)
    • (50) sheets of 5-µm polishing paper, 5.5" x 5.5" (FT552A)
    • (10) syringes (FT554A)
    • (10) needle tips
    • Scribe
    • Scissors
    • (10) alcohol-soaked pads
    • Alcohol bottle
    • Water bottle
    • Debris bottle
    • Bufferstrip tool
    • Plastic box with dividers
    • Safety glasses
    • Canned air
    • Marking pen
    • Masking tape
    • Case
    • (10) ST Econo connectors (FO557A)

    To refill the consumables in your Fiber Optic Installation Kit:
  • Fiber Optic Refill Kit (FT550A)
    or just refill the individual parts you need:
  • Polishing Paper Refills (FT551A)
  • Wipe Refills (FT553A)
  • Syringe Refills (FT554A)
  • Polishing Tool (FT580A)
  • Fiber Econo Connectors (FO557A)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for Fiber Optic Installation Kit:

    To refill the consumables in your Fiber Optic Installation Kit:
  • Fiber Optic Refill Kit (FT550A)
    or just refill the individual parts you need:
  • Polishing Paper Refills (FT551A)
  • Wipe Refills (FT553A)
  • Syringe Refills (FT554A)
  • Polishing Tool (FT580A)
  • Fiber Econo Connectors (FO557A)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
