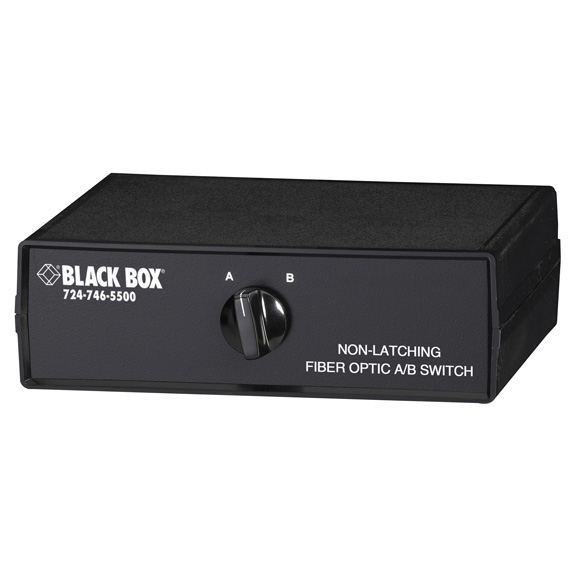

SW1033A

Photo may show similar product

Other views

Fiber Optic A/B (2-to-1) Non-Latching ST Switch, Single-Mode

For ultra-secure, critical-circuit switching in single-mode networks, use this non-latching micro-mirror ST switch.

SW1033A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • No optical-to-electrical conversion between fiber connections. Instead, the switch uses an internal mirror to optically move data between ports—technology that's trusted and time tested!


  • Description

    Fiber Optic A/B (2-to-1) Non-Latching ST Switch, Single-Mode


    Quick Facts

  • No optical-to-electrical conversion between fiber connections. Instead, the switch uses an internal mirror to optically move data between ports—technology that's trusted and time tested!

  • Further Details

  • Connect a single workstation to two or more networks or remote devices.
  • Simple to use. To route signals, just turn a knob on the front panel.
  • Ideal for government, healthcare, financial, or other applications where a private, data-sensitive network connects to a publicly accessible network.
  • For reliable switching in mission-critical environments, the micro-mirror is bonded to precise positioning servers.
  • Air-gap isolation provides a physical break in the circuit connection.
  • Falls back to C-to-A position if power is lost.
  • Operates transparently to signal rates, formats, and wavelengths, and doesn't require an upgrade when your data protocols change or speeds increase.
  • Works with 9-/125-micron single-mode fiber.
  • Universal 100–240-VAC power supply.

  • There's a reason why this type of manual switch continues to be the switch of choice for networking professionals everywhere: This tried-and-true optical switch performs as promised year after year.

    This type of switch is reliable because it uses a micro-mirror instead of electronics to route data signals from one fiber optic port to the next. And unlike conventional electronic switches, there are no complex and vulnerable electronic circuits to monitor and protect from intrusion, component failure, or interference.


    Technical Specifications for Fiber Optic A/B (2-to-1) Non-Latching ST Switch, Single-Mode:

    Compatibility 9-/125-micron single-mode fiber
    Crosstalk -45 dB (typical) per FOTP-42
    MTBF 100,000 hours or 1,000,000 cycles
    Optical Loss 0.5 dB (typical) at 1300 nm per FOTP-34 method B
    Sensitivity 750 to 1440 nanometers
    Switching Speed Typical: 5 msec;
    Maximum: 10 msec
    CE Approval Yes
    Connectors (3) pairs of ST®;
    Power: (1) 3.5-mm input
    Power Input: 100-240 VAC, 50-60 Hz, autosensing;
    Output: 5 VDC


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
