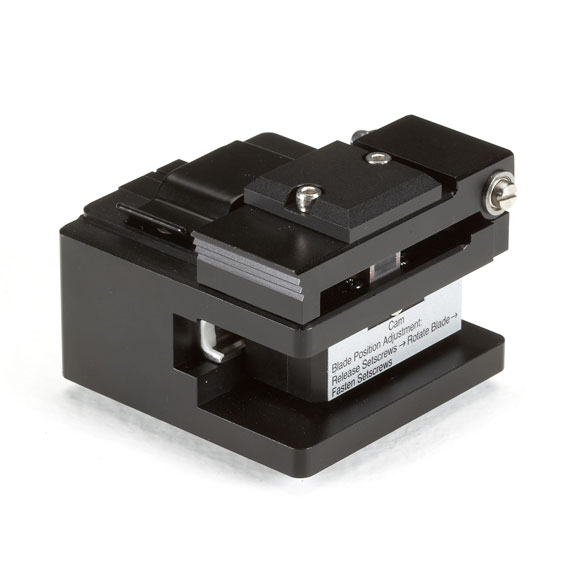

Fiber Cleaver

Precisely cleave all 125-µm multimode or single-mode optical fiber.

FOCLVR

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • The intuitive design of the single-pass cleave mechanism ensures the Fiber Cleaver is reliable, quick, and easy to use in the field.
  • Diamond blade can perform up to 60,000 cleaves with a typical angle of 90±0.5°.
  • Blade is adjustable and replaceable.
  • Includes a leather carrying case.


  • Description

    Fiber Cleaver


    Quick Facts

  • The intuitive design of the single-pass cleave mechanism ensures the Fiber Cleaver is reliable, quick, and easy to use in the field.
  • Diamond blade can perform up to 60,000 cleaves with a typical angle of 90±0.5°.
  • Blade is adjustable and replaceable.
  • Includes a leather carrying case.

  • Further Details



    Technical Specifications for Fiber Cleaver:

    Cladding Diameter 125-µm
    Cleave Angle Capability <5°
    Cleave Length 5-20 mm
    Coating Diameter250-900 µm
    Fiber Type Multimode or single-mode
    CE Approval Yes
    RoHS Yes
    Dimensions 2.3"H x 2.2"W x 1.9"D (5.9 x 5.5 x 4.9 cm)
    Weight 0.6 lb. (0.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
