Testers & Tools > Tools

click photo to enlarge

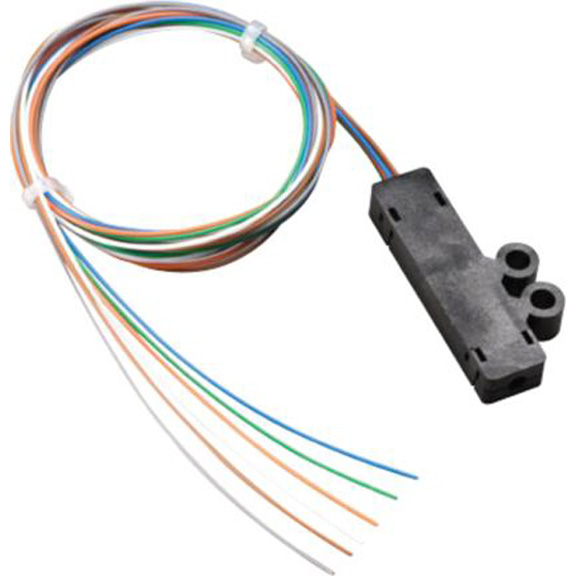

EFN06-36

Photo may show similar product

Other views

Fan-Out Kits, 6-Fiber Buffer Tube, 36-in.

Prepare 6- or 12-fiber loose-tube cables for termination.

EFN06-36


One year Warranty

Product Highlights

  • For field termination of loose-tube cable at cross-connects.
  • Color-coded fan-out tubing makes it easy to keep track of your connections.
  • Snap-together unit eliminates the need for epoxy.
  • Can be bolted to a wall or to your hardware for extra stability.
  • Ideal for fiber routing.

  • Description

    Fan-Out Kits, 6-Fiber Buffer Tube, 36-in.


    Quick Facts

  • For field termination of loose-tube cable at cross-connects.
  • Color-coded fan-out tubing makes it easy to keep track of your connections.
  • Snap-together unit eliminates the need for epoxy.
  • Can be bolted to a wall or to your hardware for extra stability.
  • Ideal for fiber routing.

  • Further Details

    BLACK BOX® Fan-Out Kits are specifically designed to enable you to terminate 6- and 12-fiber loose-tube cables.

    Loose-tube distribution cable protects each strand of fiber in its own buffer sheath. Although the buffers are ideal for protecting each strand of fiber in multifiber cables, they’re too narrow to terminate with standard fiber optic connectors.

    The Fan-Out Kit solves that problem. Just strip the buffer sheath off the cable and thread each strand through the fan-out assembly. You don’t need any more space than you would for any other cable termination or any additional hardware. And because the fan-out assembly snaps together, you don’t even need epoxy!

    The fan-out is color-coded to match your fiber cable’s color scheme and it’s available in lengths of 25 or 36 inches (63.5 or 91.4 cm) for 6- or 12-fiber cables.


    Technical Specifications for Fan-Out Kits, 6-Fiber Buffer Tube, 36-in.:

    NOTE: For indoor use only.

    These products work with:
    • Buffer Tube Fan-Out Assembly Tool Kits (FT700, FT701-C)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Fan-Out Kits, 6-Fiber Buffer Tube, 36-in.:
