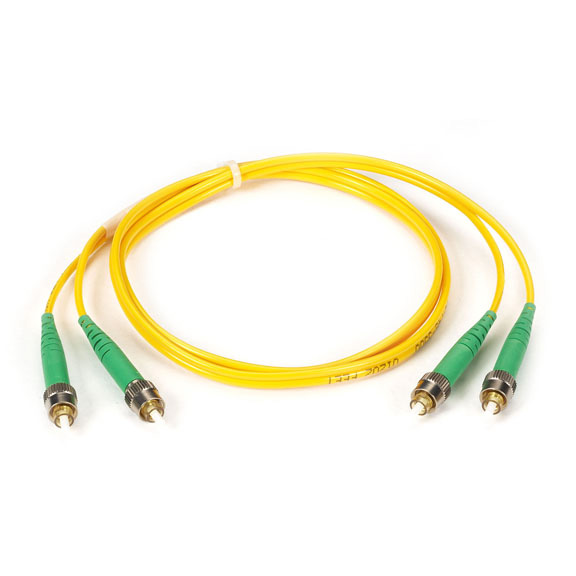

FC UPC/APC Single-Mode Fiber Optic Cable, FC/APC-FC/APC, Duplex, 2-m (6.5-ft.)

The FC patch cable you want with UPC and APC connectors.

EFN6002-002M

Extended Double Diamond™ Warranty Available
(Lifetime)

Product Highlights

  • While supplies last!
  • Guaranteed for life!


  • Description

    FC UPC/APC Single-Mode Fiber Optic Cable, FC/APC-FC/APC, Duplex, 2-m (6.5-ft.)


    Quick Facts

  • While supplies last!
  • Guaranteed for life!

  • Further Details

  • Ultra Physical Contact (UPC) connectors provide a better surface finish with less back reflection.
  • For the top-of-the-line quality, choose our Angled Physical Contact (APC) connectors with even lower back reflection.
  • Lower lightwave reflectance—≤ -55 dB for UPC connectors and ≤ -65 dB for APC connectors—make these cables ideal for system components that are light-sensitive.
  • Connector design results in less insertion loss (0.2 dB) at the interface.
  • High-quality ceramic ferrules for long-lasting reliability and precision.
  • 900-µm TBII® tightly buffered fiber surrounded by aramid yarn strength members.
  • PVC jacket rated for riser and general applications.
  • Feature a 8.3-µm core and 125-µm cladding.

  • Technical Specifications for FC UPC/APC Single-Mode Fiber Optic Cable, FC/APC-FC/APC, Duplex, 2-m (6.5-ft.):

    Application Single-mode riser
    Bend Radius Minimum: 5 cm (2") loaded;
    Maximum: 3 cm (1.2") unloaded
    Buffering Diameter 900 µm
    Fiber Type 8.3/125 µm
    Flame Resistance UL® 1666 (for riser and general building applications)
    NEC®/CSA Listing OFNR/FT-4
    Operating Temperature -4 to +158° F (-20 to +70° C)
    Tensile Strength 250 N (56 lb./25.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
