Industrial > Networking

click photo to enlarge

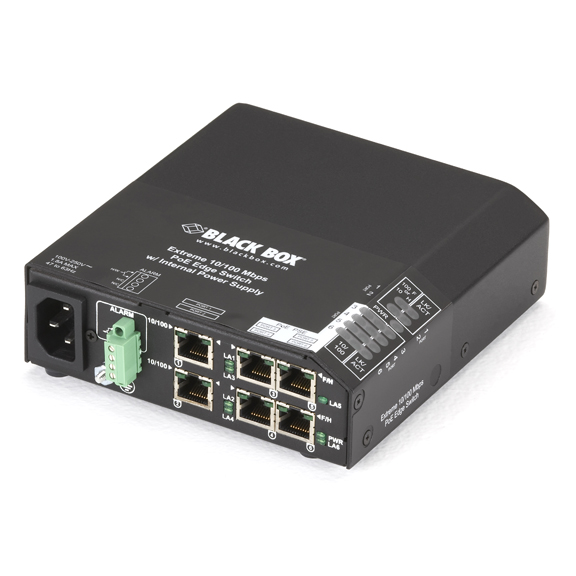

LPH240A-P

Photo may show similar product

Other views

Extreme PoE PSE Switch, (6) 10/100 RJ-45, AC Powered

Powers remote PoE devices in extreme—even outdoor—environments.

LPH240A-P

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Features six 10-/100-Mbps RJ-45 ports, four of which are PoE PSE ports.
  • Extended temperature range of -40 to +167° F (-40 to +75° C).
  • Universal 100–250-VAC power supply.

  • Description

    Extreme PoE PSE Switch, (6) 10/100 RJ-45, AC Powered


    Quick Facts

  • Features six 10-/100-Mbps RJ-45 ports, four of which are PoE PSE ports.
  • Extended temperature range of -40 to +167° F (-40 to +75° C).
  • Universal 100–250-VAC power supply.

  • Further Details

    Extreme PoE PSE Switches from Black Box power remote PoE devices such as security cameras and traffic signals in extreme environments with uncontrolled temperatures. The switches can even be used outdoors with protection from rainfall and standing water. Rugged metal cases serve as a heat sink to dissipate heat, giving these switches a wide temperature range of -40 to +167° F (-40 to +75° C). Plus, the cases are sealed to resist contaminants such as dust, dirt, moisture, smoke, and insects.

    These capable industrial switches are available with six 10-/100-Mbps copper ports, with five 10-/100-Mbps copper ports plus a 100-Mbps fiber uplink port, or with four 10-/100-Mbps copper ports plus two 100-Mbps fiber ports. Fiber ports are available with a variety of connectors, in single- or multimode, and with ranges of up to 20 kilometers. The switches provide 802.3af PoE power for up to four PoE PD devices on four RJ-45 ports.

    The switch featured here has six autosensing 10-/100-Mbps copper Ethernet ports, four of which are PoE PSE ports. It’s powered by an integral 100–250-VAC AC power supply. The switch comes with clips for panel mounting. For DIN rail mounting, order the DIN Rail Mounting Bracket (DIN-RAIL MC2).


    Technical Specifications for Extreme PoE PSE Switch, (6) 10/100 RJ-45, AC Powered:

    Environmental — Operating Temperature: -40 to +167° F (-40 to +75° C);
    Storage Temperature: -58 to +185° F (-50 to +212° C);
    Humidity: 5–95% noncondensing
    CE Approval — Yes
    Connectors — (6) RJ-45
    Power — 100–250-VAC, 47–63 Hz internal power supply
    Size — 6"H x 5.5"W x 1.7"D (15.2 x 14 x 4.3 cm)
    Weight — 1.5 lb. (0.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Extreme PoE PSE Switch, (6) 10/100 RJ-45, AC Powered:

    Manuals

    • PoE PSE Switch Manual
      Manual for LPH240A-H and LPH240A-P (Version 1)
