Cables > RS-232

click photo to enlarge

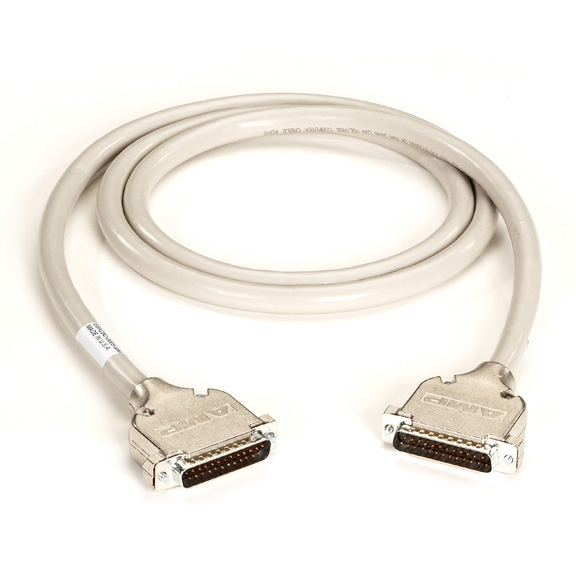

EBN25C-MM

Photo may show similar product

Other views

Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, Custom Lengths, MM

Maximum protection for short RS-232 runs in noisy environments.

EBN25C-MM


Lifetime Warranty

Product Highlights

  • Made for short runs in extra-noisy environments.
  • 100% foil shield plus a tinned copper-braid.
  • 24 AWG stranded copper conductors.
  • Guaranteed for life!

  • Description

    Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, Custom Lengths, MM


    Quick Facts

  • Made for short runs in extra-noisy environments.
  • 100% foil shield plus a tinned copper-braid.
  • 24 AWG stranded copper conductors.
  • Guaranteed for life!

  • Further Details

  • Protect your data from end to end with a 100% foil shield plus an 85% tinned copper-braided shield.
  • Ideal for industrial environments. EMI/RFI-resistant hoods stop damaging noise where cables are most vulnerable—at the connection.
  • In extra-quiet environments, use these cables for long runs—up to 500 feet (152.4 m) at 9600 bps.
  • Removable hoods enable convenient testing or repinning.
  • In extra-quiet environments, use it for long runs up to 500 feet (152.4 m) at 9600 bps.
  • Also available with nonremovable hoods.


  • Noise bursts can come from just about anywhere—fluorescent lighting, radio or cellular transmitters, electrical wiring, and other data cables. Electrical energy from any one of them can scramble your data.

    If you have long cable runs or you work in a noisy area, you need the cable that ensures every bit of your document will be accounted for when it arrives at the printer, the modem, or your PC. Our high-quality ED/Q Cable with Die-Cast Removable Metallic EMI/RFI Hoods gives you extra protection at the ends of the cable. Remove the hoods for convenient testing or repinning.


    Technical Specifications for Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, Custom Lengths, MM:

    Cable Construction — PVC
    Conductor Gauge — 24 AWG (7 x 32) stranded copper
    Mutual Capacitance — 12 pF/ft.
    Resistance — 30 ohms/1000 ft.
    Shield — 100% aluminum foil, 85% tinned copper braid

    RoHS — Yes


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, Custom Lengths, MM:

    Black Box Explains


    Connect your Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, Custom Lengths, MM with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Lifetime warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, Custom Lengths, MM EBN25C-MM $34.60
    Extended-Distance/Quiet Cable with Nonremovable EMI/RFI Hoods, Stranded, DB9, Straight-Wired, 9 (4 1/2 Pairs)—All Pins, 2-ft. (0.6-m), MF EGM12D-0002-MF $22.95

    Extended-Distance/Quiet Cable with Nonremovable EMI/RFI Hoods, Stranded, DB9, Straight-Wired, 9 (4 1/2 Pairs)—All Pins, 5-ft. (1.5-m), MF EGM12D-0005-MF $25.95

    Extended-Distance/Quiet Thumbscrew Cable with Nonremovable EMI/RFI Hoods, 25 (12 1/2 Pairs), Male/Female, 2-ft. EGM25C-0002-MF $35.95

    Extended-Distance/Quiet Cable with Nonremovable EMI/RFI Hoods, Stranded, DB9, Straight-Wired, 9 (4 1/2 Pairs)—All Pins, 10-ft. (3.0-m), FF EGM12D-0010-FF $36.95

    Extended-Distance/Quiet Cable with Nonremovable EMI/RFI Hoods, Stranded, DB9, Straight-Wired, 9 (4 1/2 Pairs)—All Pins, 10-ft. (3.0-m), MF EGM12D-0010-MF $36.95

    Extended-Distance/Quiet Cable with Die-Cast Removable Metallic EMI/RFI Hoods, Stranded, DB25, NEC® CL2, 25 (12 1/2 Pairs)—Pins 1–25, 5-ft. (1.5-m), MF EBN25C-0005-MF $46.95

    Extended-Distance/Quiet Thumbscrew Cables with Nonremovable EMI/RFI Hoods, 25 (12 1/2 Pairs), Male/Female, 10-ft. (3.0-m) EGM25C-0010-MF $54.95

    Extended-Distance/Quiet Thumbscrew Cables with Nonremovable EMI/RFI Hoods, 25 (12 1/2 Pairs), Male/Male, 10-ft. (3.0-m) EGM25C-0010-MM $54.95

    ED/Q Thumbscrew Cable with Nonremovable EMI/RFI Hoods, DB9, 9 (4 1/2 Pairs), 50-ft., M/F EGM12D-0050-MF $67.95

    Extended-Distance/Quiet Thumbscrew Cable with Nonremovable EMI/RFI Hoods, Male/Male, 25 (12 1/2 Pairs), Custom Lengths EGM25C-MM $43.48
    You can find this product in the following subcategory(s)


    Kit Pricing

    Starting At: $34.60

    To order please call
    1-877-877-2269


    Shipping Info

    Usually Ships in 3-5 days


    45-day return policy
