MDE06A

Photo may show similar product

Other views

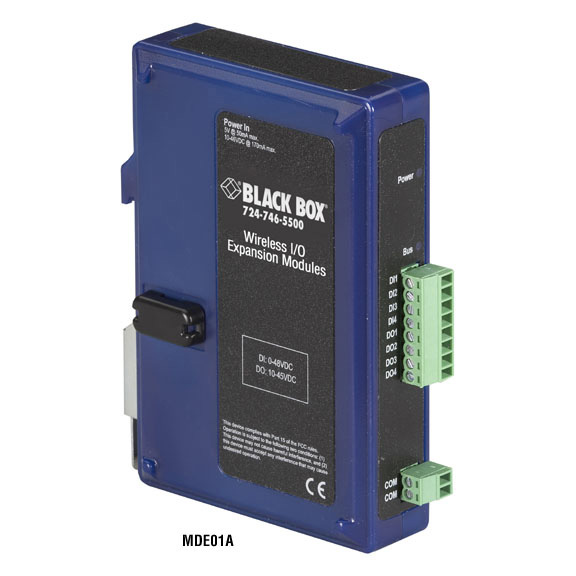

Expansion Module for Wireless Extenders, with (2) Analog Inputs, (2) Analog Out

Get additional I/O connectivity for controlling industrial devices.

MDE06A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Enable you to expand the number of manageable inputs and outputs in your 2.4-GHz or 900-MHz wireless extender system.
  • Plug into base modules from the Black Box® Wireless Extenders for Digital or Analog I/O family.
  • Communicate with sensors, meters, PLRs, and other input/output monitoring equipment.


    • Description

    Expansion Modules for Wireless Extenders for Digital or Analog I/O , with (2) Analog In, (2) Analog Out


    Quick Facts

  • Enable you to expand the number of manageable inputs and outputs in your 2.4-GHz or 900-MHz wireless extender system.
  • Plug into base modules from the Black Box® Wireless Extenders for Digital or Analog I/O family.
  • Communicate with sensors, meters, PLRs, and other input/output monitoring equipment.

    • Further Details

  • DIN rail mountable. Rugged IP30-rated cases protect internal circuitry.
  • Operate in a wide temperature range and work in most indoor and outdoor applications.
  • Fit easily into most industrial power control and automation systems. Work with Modbus® and PROFIBUS® systems—no converters are needed!
  • Receive power through the connected module.
  • RoHS compliant.

    • Why buy a complete wireless control system when all you need are a few links to existing I/O devices? Black Box® Modular Wireless Extenders for Digital or Analog I/O give you the flexibility to order only what you need.

    The products in the family enable you to custom build a system for cable-free links in your demanding application. Start with base modules for several I/O points, and when your site grows, just snap in several of these expansion modules to establish more connections. All modules in the family feature similar enclosures with local bus plugs and receptacles that enable them to be connected together.

    Easy input and output customization for industrial control.
    In all, you can plug up to six expansion modules into the base module to add more I/O capabilities. The expansion modules feature removable screw terminal blocks for the inputs and outputs. Use the digital inputs to detect the presence of contact closures, transistor switches, or on/off, and use the digital outputs to drive external devices such as indicators, relay coils, or other equipment. Use the analog inputs/outputs to accept or produce voltage or current signals.

    You can even choose from several different combinations of digital inputs, digital outputs, analog inputs, and analog outputs. How’s that for customization?

    Work well in existing industrial-control applications.
    The expansion modules are DIN rail-mountable for simple, space-saving integration into your existing industrial application.

    And because the system is Modbus compatible, you can communicate with many popular industrial-control applications, including the legacy systems that you’ve been running for years. Connect to Wonderware® or LabVIEW automation and industrial control applications or a number of Modbus compatible utilities to bring data directly into your PLC system.

    To configure modules and manage your I/O devices, be sure to also order the system’s programming module. It gives you a convenient way to use a PC to interface with base and expansion modules.


    Technical Specifications for Expansion Module for Wireless Extenders, with (2) Analog Inputs, (2) Analog Out:

    Digital/Analog I/O Voltage — Digital inputs: 0–48 VDC;
    Digital outputs: 10–48 VDC (from PNP sourcing transmitters);
    Analog inputs and outputs: 4–20 mA, 0–20 mA or 0–10 VDC (software-selectable)
    DIN Rail Mount — 35 mm
    Temperature Tolerance — 40 to 185º F (4 to 85º C)
    Connectors — I/O: 2-, 4-, or 8-position terminal block(s);
    For plugging modules together: (2) 14-pin local bus connectors (M/F)
    Power — From the connected base module
    Size — 1.2"H x 3.7"W x 5"D (3 x 9.4 x 12.7 cm)
    These products work with:
  • Base Modules for 2.4-GHz Wireless Extenders for Digital or Analog I/O (MDR4241A–MDR4244A)
  • Base Modules for 900-MHz Wireless Extenders for Digital or Analog I/O (MDR4901A–MDR4904A)
  • Programming Modules for the Wireless Extenders for Digital or Analog I/O (MDP01–MDP02)
  • DIN Rail (DR100)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
