Networking > Print Servers

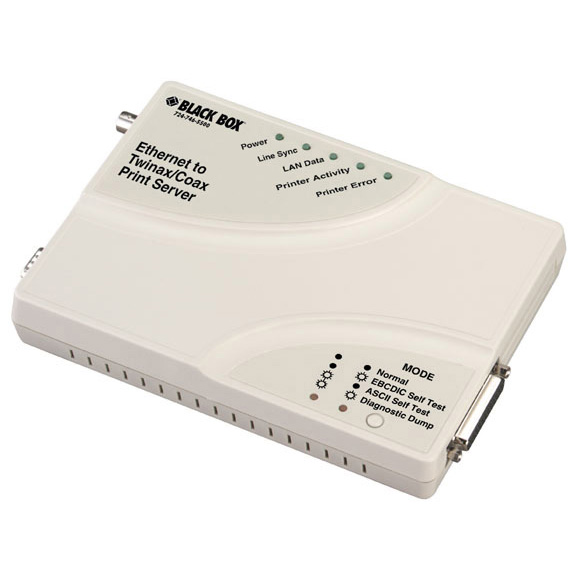

click photo to enlarge

PC435A

Photo may show similar product

Other views

Ethernet to Twinax/Coax Print Server

Connect legacy twinax or coax printers to Ethernet!

PC435A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Easy to set up. Configure it for local or remote use.
  • Connects twinax or coax IPDS™, SCS, or SCS/DSC printers to an Ethernet network.
  • Enables an IPDS twinax or IPDS coax system printer to be addressed via TCP/IP from an AS/400® or 3270-type mainframe.

  • Description

    Enet to Twinax/Coax Print Server


    Quick Facts

  • Easy to set up. Configure it for local or remote use.
  • Connects twinax or coax IPDS™, SCS, or SCS/DSC printers to an Ethernet network.
  • Enables an IPDS twinax or IPDS coax system printer to be addressed via TCP/IP from an AS/400® or 3270-type mainframe.

  • Further Details

  • SCS/DSC coax system printers become available to virtually any host, including AS/400 and 3270-type mainframes as well as Novell, UNIX, and Windows host systems.
  • Autosenses 10- and 100-Mbps speeds.
  • Page range support and Form Alignment available for line printers and dot-matrix printers configured via AnyNet or SNA on an AS/400.
  • Works with laser printers, line printers, and dot-matrix printers.

    Your legacy system’s been reliable since coax was cool. You’ve invested a lot of money in it. Now you want to get more out of it. And with the BLACK BOX® Ethernet to Twinax/Coax Print Server, you can. This solution enables you to connect twinax or coax IPDS or SCS or IPDS SCS/DSC printers to an Ethernet network.

    By using an Ethernet to Twinax/Coax Print Server, you can address an IPDS SCS twinax or IPDS SCS/DSC coax system printer via TCP/IP from an AS/400 or a 3270-type mainframe. And talk about versatility—the printer being addressed can be a laser, line, or dot-matrix printer! The print server communicates the data received over the Ethernet link to the attached coax or twinax printer reliably.

    But this printer server doesn’t just work with IPDS printers—it also works with an SCS twinax or SCS/DSC coax system printer. With the Ethernet to Twinax/Coax Print Server, these printers become available to virtually any host on an Ethernet network. These include AS/400 and 3270-type mainframes, and Novell®, UNIX®, and Windows® 95/98, Windows 2000, Windows Me, and Windows NT® host systems. All such host systems can communicate simultaneously with a printer attached to the Ethernet to Twinax/Coax Print Server.

    Line and dot-matrix printers configured via AnyNet™ or SNA on an AS/400 offer page range support and posting of the Form Alignment message. The Form Alignment feature is particularly valuable when printing on preprinted forms such as checks and invoices.

    What sets this print server apart from many others is its ease of use. By using its PrintControl Windows based utility, setup and configuration is straightforward and effortless. Once you’ve assigned an IP address to the Ethernet to Twinax/Coax Print Server, you can configure it right from your desktop—whether it’s attached locally or remotely.

    The Ethernet to Twinax/Coax Print Server also autosenses 10BASE-T and 100BASE-T speeds. It adapts automatically! Plus its flash memory enables you to download the latest enhancements to protect your investment in both your print server and your legacy system.

  • Technical Specifications for Ethernet to Twinax/Coax Print Server:

    LAN Hosts Supported — IBM® AS/400®, 3270-type mainframes; Novell NetWare®; UNIX; Windows 95/98/Me, Windows 2000, Windows NT
    Operating Environment — Temperature: 40 to 100º F (4 to 38º C);
    Humidity: 10 to 90% noncondensing
    Printers Supported — SCS: All 5250 SCS twinax and 3270 SCS/DSC coax printers;
    IPDS: All 5250 and 3270 laser printers; all 4224, 4230, and 4234 line/dot-matrix printers
    CE Approval — Yes
    Connectors — Coax: (1) BNC for 3270 printer;
    Ethernet: (1) RJ-45;
    Twinax: (1) DB9 for 5250 printer (DB9 to twinax autoterminating “V” barrel connector included)
    Power — 110–240 VAC, 47–63 Hz, autosensing
    Size — 1.4"H x 8.4"W x 5.6"D (3.6 x 21.3 x 14.2 cm)

    This product works with:
    • CAT5e 100-MHz Patch Cable with Molded Boots, 4-Pair, Straight-Pinned (EVNSL25E, etc.)
    • Twinax Cable (EWN010)
    Questions? Contact our FREE Tech Support.


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Ethernet to Twinax/Coax Print Server:


    Connect your Ethernet to Twinax/Coax Print Server with:

    Accessory: EVNSL21E-0001

    CAT5e 100-MHz Patch Cable, UTP, Molded Hoods, 1-ft. (0.3-m)

    CAT5e 100-MHz Patch Cables with Molded Boots, 24 AWG, RJ-45, 4-Pair, T568B, PVC, Straight-Pinning, Blue, 1-ft. (0.3-m)

    Accessory: EWN010-0006-MM

    Twinax Cable, 6-ft. (1.8-m)

    Twinax Cable, PVC (CL2) Male/Male, 6-ft .(1.8-m)
