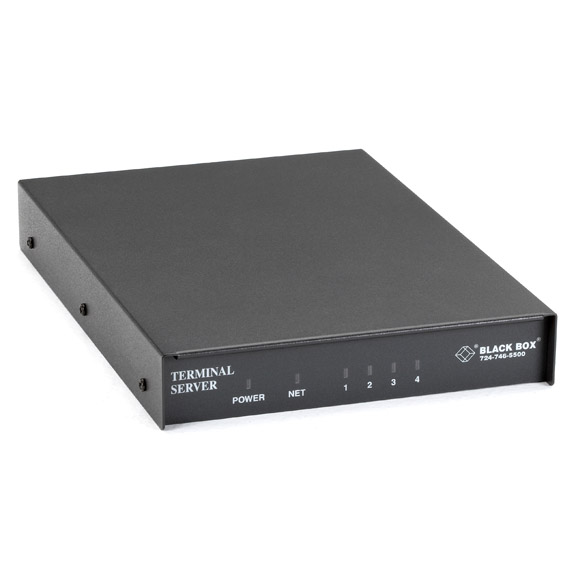

Enhanced TCP/IP Terminal Server, RJ-45 Async, 4-Port

Add multiple RJ-45 serial devices to your network through a single network connection.

Replace expensive point-to-point links and complex cabling with this simple multi-port solution.

Give administrators secure access to remote devices from anywhere, just as if they were connected locally through a serial connection, even across the Internet!

Connects any device with RJ-45 serial connections to your network.

Bidirectional host software and full modem control on all ports.

Asynchronous data speeds up to 115.2 kbps per port.

Flash ROM for easy software upgrades.

In-network or dial-in support for UNIX and Microsoft® networks.

Surge-protected serial ports.

Uses TCP/IP for your software connection.

Supports Reverse Telnet, configurable on a per-port basis.

Multiport remote access using PPP, SLIP, or CSLIP protocols.

Use this 4-port Enhanced TCP/IP Terminal Server from Black Box to connect serial devices to any network, as if you were making a single network connection. You’ll eliminate long serial cable runs between hosts and devices. Changes are easy, too. Just move or add a terminal server instead of recabling. Each terminal server can be configured as a dedicated connection to one host.

Connect virtually anything to your network…
This terminal server enables you to bridge the distance between your remote IT equipment and your technical support staff. You’ll be able to manage a broad range of devices and applications remotely, while reducing costs and maintaining your network security:

Data centers

Remote equipment cabinets and servers

Local and wide area networks

Building access security

Secure networks

Telemetry devices

Environmental controls

Barcode scanners

Point of sale (POS) terminals

Credit card readers

Vending machines

RFID readers

Receipt printers

In fact, you can provide an anywhere, anytime management solution for proactive yet cost-effective support across the entire IT infrastructure. You can even enable all printers, PCs, servers, and peripherals from a remote location to make a single connection to your network. Access and manage them remotely. Minimize network downtime in case they need service, and eliminate unnecessary costs.

…even in health care environments.
This 4-port Enhanced TCP/IP Terminal Server from Black Box is great in health care environments as well, enabling you to connect a variety of devices to your network, including:

Patient monitoring and diagnostic devices

Scanning and X-ray equipment

Infusion pumps

Defibrillators

Diagnostic devices

Ultimate connectivity.
This terminal server supports a variety of protocols, giving you super flexibility. SLIP, CSLIP, PPP, and Reverse Telnet™ support make this box more than just a terminal server. It’s really a communications server. With SLIP and PPP connections, remote users can access the network over serial lines and appear as if they were locally connected. For security, you can configure any dial-in ports for password authentication. In addition, the terminal servers can dial out to any PPP or SLIP server via a modem or ISDN terminal adapter link.

You can also set up any terminal port to be individually configured for Reverse Telnet. In addition to using Reverse Telnet for modems and printers, you can also use it to connect systems that don’t support TCP/IP or Ethernet. The terminal server works as a front-end TCP/IP processor.

Management is easy.
Preloaded ROM host software and SNMP MIB I and II support make management easy. For example, installing a terminal server takes less than 10 minutes. In simple applications, just set the IP address. In more complex applications, a user-friendly menu system guides you step-by-step through port speeds, flow control, password security, and PPP/SLIP connections. You can also choose your instructions in English, Spanish, French, German, or Italian.

For network administration, you can access any terminal server on the network remotely via Telnet. The terminal servers also support MIB I, MIB II, and proprietary MIBs, so you can manage all units on your network from an SNMP workstation.

Other Enhanced TCP/IP Terminal Servers are available with 2, 4, 8, or 16 ports. We have the terminal server for your application!

NOTE: Serial ports are pinned as DTE. To connect modems and other DCEs, use RS-232 cables pinned straight through. For ordering assistance with cables to connect DTEs such as terminals and printers, contact our FREE Tech Support.

This product works with:

Standard RS-232 Low-Noise Cable, 25-Conductor, Male/Male (ECM25T)

RJ-45 (8-Wire) Modular Cable, Straight-Pinned (EL08MS)
