Premises Security > Access Control

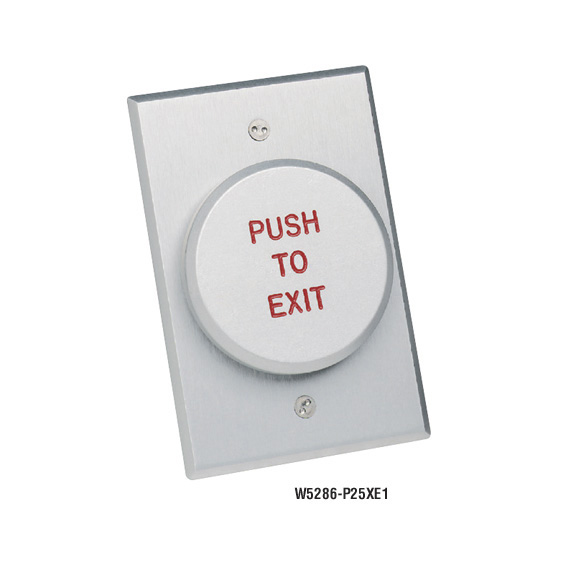

click photo to enlarge

N5286-FTXE1

Photo may show similar product

Other views

Engraved Push-Plate Switch Controls, SPDT with Fixed Delay

Engraved push plates for easy exit.

N5286-FTXE1


Lifetime Warranty

Product Highlights

  • For locations where local codes require a readily apparent and easy-to-use door control or electric lock release.
  • All engraved with “PUSH TO EXIT” instructions. Plates with other standard instructions can be custom ordered (for details, contact our FREE Tech Support).
  • Guaranteed for life!


    • Description

    5286 Series Push-Plate and Push-Button Switch Controls, Push Plate with Clear Aluminum Anodized Finish, Narrow (1.8"W) Back Plate, SPDT with Fixed Delay


    Quick Facts

  • For locations where local codes require a readily apparent and easy-to-use door control or electric lock release.
  • All engraved with “PUSH TO EXIT” instructions. Plates with other standard instructions can be custom ordered (for details, contact our FREE Tech Support).
  • Guaranteed for life!

    • Further Details

  • Provide easy exit access for secure office buildings.
  • Also ideal for hospitals, nursing homes, and other institutions.
  • To prevent tampering, push plates screw to the back plate from the rear of the assembly.
  • Smooth beveled edges on all sides of the back plates and push plates enhance appearance.
  • Various contact switch actions are available: DPDT with momentary action, SPDT with adjustable pneumatic, or SPDT with a fixed, 30-second delay.
  • Available with either standard (3“W) or narrow (1.8“W) back plates.


    • Technical Specifications for Engraved Push-Plate Switch Controls, SPDT with Fixed Delay:

    Adjustable Pneumatic Delay — On W5286-P23DAXE1 and N5286-P23DAXE1 only: 2–60 seconds
    Approvals — UL® and CSA
    Switch Ratings — All momentary-action switches: 6 A at 125 VAC, 4 A at 24 VDC;
    All delay-action switches: 10 A (resistive) at 125 VAC
    Size — All push plates: 3“H x 1.5“W (7.6 x 3.8 cm);
    Standard back plates: 4.5“H x 3“W (11.4 x 7.6 cm);
    Narrow back plates: 4.5“H x 1.8“W (11.4 x 4.6 cm);
    All assemblies require 1.5“ (3.8 cm) clearance on electrical box side
    Warranty — Lifetime
    NOTE: Wide back plates, switches with other types of contacts, and push plates or push buttons with custom engraved instructions are also available. To order, contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Engraved Push-Plate Switch Controls, SPDT with Fixed Delay:


    Connect your Engraved Push-Plate Switch Controls, SPDT with Fixed Delay with:
