Cabinets & Racks > Cabinet Accessories

click photo to enlarge

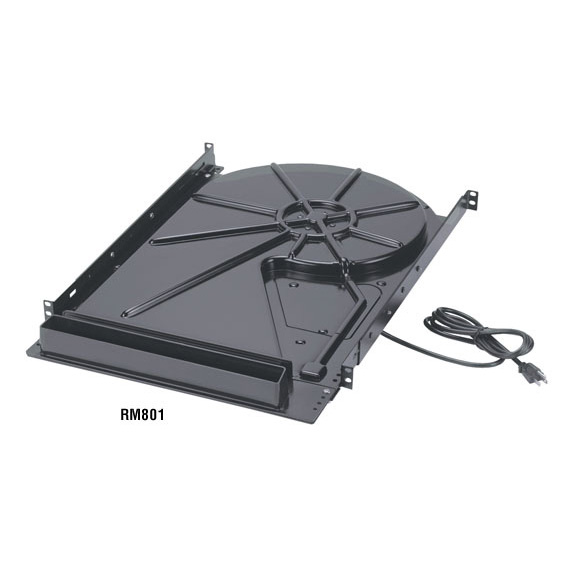

RM801

Photo may show similar product

Other views

Enclosure Blower

Maximum ventilation for your cabinets.

RM801

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Cools cabinets by improving air circulation.
  • Draws cool air from the bottom of the cabinet and delivers it right across the front of servers or other network components.
  • Guaranteed for life!

  • Description

    Enclosure Blower


    Quick Facts

  • Cools cabinets by improving air circulation.
  • Draws cool air from the bottom of the cabinet and delivers it right across the front of servers or other network components.
  • Guaranteed for life!

  • Further Details

  • Fits on standard 19" rails.
  • Requires only 2U of mounting space.

  • Many of today’s network components—especially servers—run hot, making adequate cabinet ventilation a special concern. The Enclosure Blower from Black Box cools your cabinets by drawing cool air from the floor level and blowing it up through the front of the cabinet across server fronts. This high level of ventilation lowers the temperature of cabinet hot spots by up to 15° F. Lowering temperatures protects your electronics against failure caused by overheating and enables you to install more servers.

    The Enclosure Blower installs easily on the bottom of any cabinet with EIA-310 compliant 19" rails and takes only 2U of rack space. The blower works most effectively in cabinets with solid or partially vented front doors with rails set back at least four inches to establish a column of circulating air.

    Add the easy-to-install Filter Assembly (RM802, available separately) to help keep circulating air free of dust—the filter removes up to 80% of 2-micron particles.

    Use the Dual Failover Switch (RM803, available separately) to connect the Enclosure Blower into both a primary and a secondary power source. If the primary power source fails, it automatically switches to the secondary power source.


    Technical Specifications for Enclosure Blower:

    Fan Capacity — 250 cfm
    Power — 115 VAC, 60 Hz, 0.65 amp
    Size — 4.31"H x 18.43"W x 28.45"D plus 6'6" power cord
    Weight — 14 lb.
    This product works with:
  • Enclosure Blower Filter Assembly
  • Enclosure Blower Replacement Filters (1) 12-Pack
  • Enclosure Blower Dual Failover Switch
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
