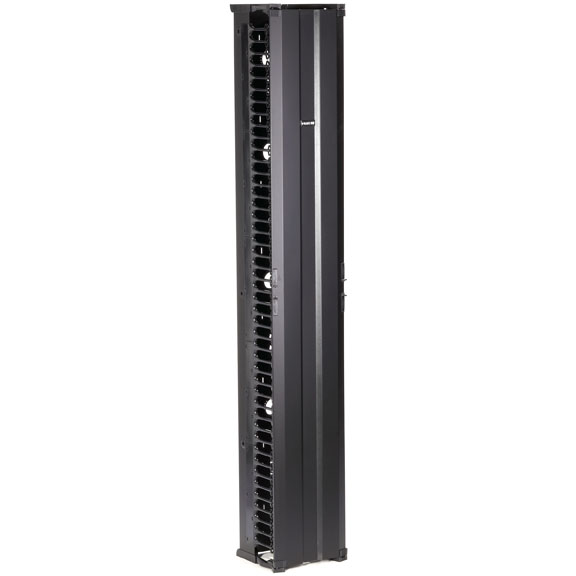

Elite Vertical Cable Manager, 45U, 12"

Run more cable in less time with these highly engineered vertical cable managers.


LIFETIME DoubleDiamond™ Warranty (Standard)

Product Highlights

  • Use to manage and route cables efficiently in EIA standard 19" racks.
  • Can be used alone or together in a 2- or 4- post open frame rack.
  • Double-hinged removable covers provide easier access during installation.
  • No obstructions. An entire unit can be used for cable routing.
  • Easy to put together and run cables through.
  • Guaranteed for life!

  • Further Details

  • Single-sided, 45U (7-ft. high) managers available in 6" and 12" widths.
  • Mount on the side of or between 2- and 4-post open racks. Align easily with the bolt pattern on an open frame rack.
  • Cover has a central spring-loaded latch and opens 180º to allow full access to cables from the left or right, or it can be removed.
  • Generous finger depth for maximum cable density. Fingers are shaped like arrowheads to funnel cables into the base and secure them.
  • Rounded edges on the manager and its grommets protect cable jackets from damage.
  • Provide proper bend radius management.
  • Feature passthrough holes for routing cable front to back, as well as rear cable tiedowns.
  • Post and gates on the rear can be moved easily up and down on the manager. When closed, they support and secure cable bundles.
  • Order extra 6" or 12" posts and gate sets as needed or to create a double-sided manager.
  • Door and cable channel are lightweight aluminum; fingers and hinge points are made of composite material.

  • NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 1-800-316-7107.

    Double Diamond Warranty
    LIFETIME DoubleDiamond™ Warranty (Standard)

    Double Diamond™ Warranty (Standard)


    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Elite Vertical Cable Manager, 45U, 12" comes with a standard Lifetime warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.

    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)

    Add to Cart

    Price: $527.20

    Quantity Available: 3




    Shipping Info

    In Stock - orders received before 5PM ET ship same day

    Weight: 42 lbs.
    HxWxD: 16 x 17.75 x 87.5 in.
