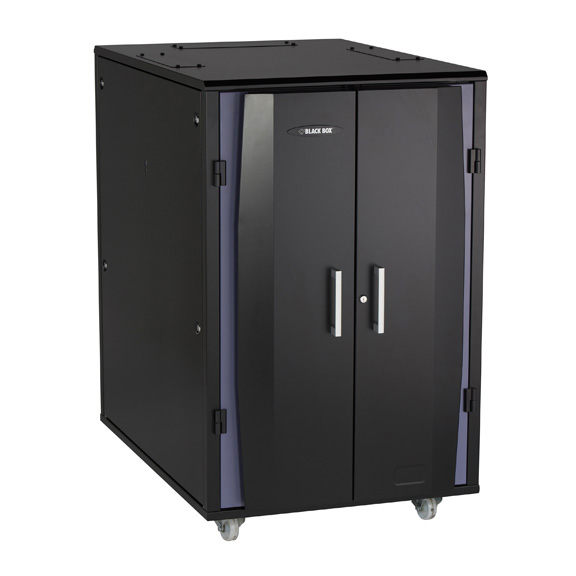

Elite QuietCab, 24U, 49.2"H x 30.7"W x 47.64"D

Reduce noise in your office with QuietCab sound-proof data cabinets.

QCE24U

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Incredibly quiet! Reduces equipment noise to a level below background noise in an average office, or even to a whisper.
  • Attenuates sound by an amazing 28.5 dB—the most you can get today in a soundproof enclosure.
  • Independently tested as the most effective quiet cabinet in the world.
  • Innovative air flow design achieves a staggering 7.2 kW heat dissipation—the equivalent of 37 single processor servers and peripherals.
  • Ideal for environments where you need to store network equipment near workers, such as offices, schools, medical offices, retail establishments, and more.


  • Description

    Elite QuietCab, 24U, 49.2"H x 30.7"W x 47.64"D


    Quick Facts

  • Incredibly quiet! Reduces equipment noise to a level below background noise in an average office, or even to a whisper.
  • Attenuates sound by an amazing 28.5 dB—the most you can get today in a soundproof enclosure.
  • Independently tested as the most effective quiet cabinet in the world.
  • Innovative air flow design achieves a staggering 7.2 kW heat dissipation—the equivalent of 37 single processor servers and peripherals.
  • Ideal for environments where you need to store network equipment near workers, such as offices, schools, medical offices, retail establishments, and more.

  • Further Details

  • Noise reduction is achieved without compromising cooling capability.
  • Designed to handle higher heat loads with variable fan speed control and a temperature sensor for maximum energy efficiency.
  • 19" M6 rails are adjustable.
  • Rear doors feature an exhaust fan.
  • Generous cable management space is built in.
  • Accommodates all leading servers, including blade servers.
  • Lockable front and rear doors keeps equipment safe and secure.
  • Includes casters.
  • 12U, 24U, and 42U models are available.

  • Peace and quiet.
    Why noise control? Increased productivity. Increased profits. Research shows that prolonged exposure to noise creates stress and lowers morale. It can also lead to an increase in accidents and errors. A simple 5 dB reduction in noise can actually cut the risk of hearing loss in half. A quiet office is a productive office. How many times have you gone into work early or on the weekend because you wanted peace and quiet?

    The QuietCab reduces sound by an amazing 28.5 dB—the most you can get today in a soundproof enclosure. And, the cabinet goes through independent, third-party testing to ensure it. So what does that mean? Noise is measured in decibels. So 28.5 dB noise attenuation (or reduction) means that the cabinet is removing that amount of noise from the sound source.

    The noise level in a busy office with people talking measures 78 dB. Normal conversation is about 60 dB. A quiet office with no talking is 48 dB. A whisper is 23 dB. If you put the cabinet in a busy office, you'll reduce the sound to that of an office without speech. If you start with a quiet office, the sound from the cabinet would be as quiet as a whisper. In other words, you won't hear the equipment unless you press your ear against the cabinet!

    The cabinet design ensures noise reduction without compromising cooling capacity. To reduce sound, the inside of the cabinets are heavily lined with one of the most effective acoustic materials available. This heavy-duty, multi-layer composite material covers all inside surfaces. Even the three cable routing panels on top are covered. For ease of use, the panels are hinged and flip up like a door. Another cable routing panel at the base is also covered. Once you route cables, additional foam-insulation is provided to close any crevices.

    Very cool.
    Get the best thermal performance with an incredible thermal load capacity of up to 7.2 kW. That's the equivalent of 37 single-processor servers and peripherals. To cool equipment, the cabinet features two variable-speed fans on the rear doors that are controlled by a temperature sensor to ensure maximum energy efficiency. Cooling occurs as ambient air comes in the front of the cabinet and is exhausted out the rear.

    Very accommodating.
    This 19" cabinet is extremely well-designed and built to serve you for years to come. It holds all leading servers, including blade servers. To accommodate different types of equipment, the 19" M6 mounting rails are adjustable. It can hold a very hefty 1100 pounds of equipment. Load-bearing casters make it easy to move. Locking front and rear doors secure equipment. The cabinet is also designed with very generous cable-management for both horizontal and patch cables.

    A good office mate in open environments.
    Why spend money on a data center when all you need is the QuietCab? It's a very economical and smart solution for environments where you need to locate equipment near workers, such as open offices, schools, medical offices, etc. By eliminating equipment noise, you'll reduce stress and improve productivity. Who can think straight when there's a lot of noise in the background?


    Technical Specifications for Elite QuietCab, 24U, 49.2"H x 30.7"W x 47.64"D:

    Attenuation<28.5 cB
    Capacity 1102.3 lb. (500 kg)
    Depth 47.64" (121 cm)
    Depth, Usable 33.5" (85 cm) between 19" mounting racks
    Footprint, Floor 30.7"W x 43.3"D (78 x 110 cm)
    Footprint, Cladding 30.7"W x 47.64"D (78 x 121 cm)
    Heat Load (Maximum) 7.2kW
    Height, External 49.2" (125 cm) including casters
    Power Consumption (Maximum) 1 Amp
    Rack Units 24
    RoHS Yes
    Width 30.7" (78 cm)
    Weight 394.6 lb. (179 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Elite QuietCab, 24U, 49.2"H x 30.7"W x 47.64"D:

    Manuals

    • Elite QuietCab User Manual
      Removing Cabinet from Pallet Instructions (Version 1)
    • Elite QuietCab User Manual
      Cabinet Disassembly Instructions (Version 1)
    • Elite QuietCab User Manual
      Cabinet Assembly Instructions (Version 1)
    • Elite QuietCab User Manual
      User Manual for the QCE12U, QCE24U, QCE42U (Version 1)

    Product Data Sheets

    Black Box Explains


    Connect your Elite QuietCab, 24U, 49.2"H x 30.7"W x 47.64"D with:

    Accessory: EC24U2442SMMSMNK

    Elite Server Cabinet, 48"H (24U) x 24"W x 42"D, M6 Rails, Mesh Front Door, Mesh Rear Door, Solid Side Panels, Mesh Top Panel, Keyed Locks

    Elite Server Cabinet, 48"H (24U) x 24"W x 42"D, M6 Rails, Mesh Front Door, Mesh Rear Door, Solid Side Panels, Mesh Top Panel, Keyed Locks

    Accessory: RM2500A

    Select Plus Server Cabinet, 15U

    Select Plus Server Cabinet, 15U

    Accessory: RM2540A

    Select Plus Server Cabinet, 42U

    Select Plus Server Cabinet, 42U

    Accessory: RM8042A-R2

    Universal Server Cabinet, 42U, 42"D

    Universal Server Cabinet, 42U, 42"D

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamondâ„¢ warranty!
    Cost: $564.90

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamondâ„¢ warranty!
    Cost: $1,129.80

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Elite QuietCab, 12U, 28.2"H x 30.7"W x 47.64"D QCE12U $3,959.00

    Elite QuietCab, 42U, 80.7"H x 30.7"W x 47.64"D QCE42U $7,599.00
