Power > UPS

click photo to enlarge

86702

Photo may show similar product

Other views

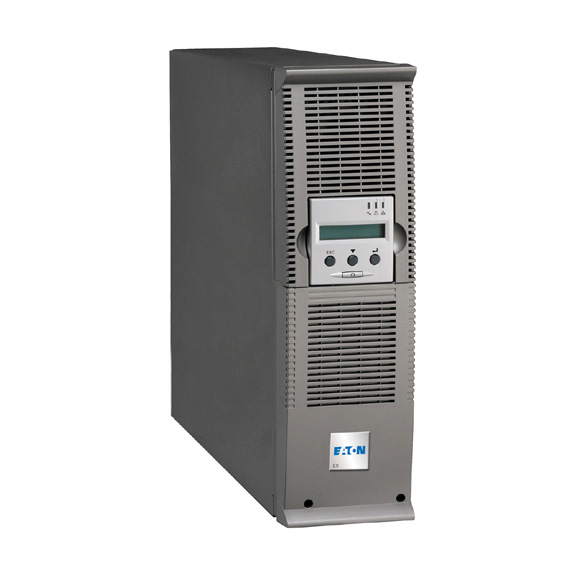

Eaton EX UPS, 1000 VA/900 Watts

Extensive network management capabilities make this UPS ideal for mid-range servers.

86702


Two year Warranty

Product Highlights

  • This double-conversion online UPS features automatic bypass for high availability.
  • Wide input voltage window conserves battery time for blackouts.
  • Add optional Extended Battery Modules (EBMs) for extended runtime.
  • Works with the Intelligent Power Software Suite monitoring, management, and shutdown software (included).
  • Software enables you to remotely reboot locked equipment and perform a sequential start-up through individually switchable outlets.
  • May be rackmounted on four 19" rails or used as a tower. Rackmount hardware is included.

  • Description

    Eaton EX UPS, 1000 VA/900 Watts


    Quick Facts

  • This double-conversion online UPS features automatic bypass for high availability.
  • Wide input voltage window conserves battery time for blackouts.
  • Add optional Extended Battery Modules (EBMs) for extended runtime.
  • Works with the Intelligent Power Software Suite monitoring, management, and shutdown software (included).
  • Software enables you to remotely reboot locked equipment and perform a sequential start-up through individually switchable outlets.
  • May be rackmounted on four 19" rails or used as a tower. Rackmount hardware is included.

  • Further Details



    Technical Specifications for Eaton EX UPS, 1000 VA/900 Watts:

    Battery Type — Maintenance-free sealed lead acid
    Environmental — Operating temperature: 32 to 104° F (0 to 40° C)
    Runtime — @900 Watts: 6 minutes; @450 Watts: 18 minutes
    Software — Included Intelligent Power Software Suite (CD)
    Power — Input: NEMA 5-15P;
    45–65 Hz;
    Input voltage range: 80–142 V;
    Nominal voltage: 120 V;
    Output: (6) 5-15R;
    Voltage range: 100/120/127 Volts;
    Power factor: 0.9
    Connectors — Power input: (1) NEMA 5-15P;
    Power output: (6) 5-15R;
    (1) USB Type B;
    (1) RS-232 serial port and relay contacts;
    (1) mini terminal block for remote On/Off and emergency stop;
    (1) Minislot for Network Management Card
    Size — 3.5"H x 17.25"W x 19"D (8.9 x 43.8 x 48.3 cm)
    Weight — 39.6 lb. (18 kg)
    Warranty — 2 years


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Eaton EX UPS, 1000 VA/900 Watts:


    Connect your Eaton EX UPS, 1000 VA/900 Watts with:

    Accessory: EHBPL1500R-PDU1U

    Eaton HotSwap Maintenance Bypass 1000

    Eaton HotSwap Maintenance Bypass 1000

    Accessory: EHBPL2000R-PDU1U

    Eaton HotSwap Maintenance Bypass 2200

    Eaton HotSwap Maintenance Bypass 2200

    Accessory: EHBL3000R-PDU1U

    Eaton HotSwap Maintenance Bypass 3000

    Eaton HotSwap Maintenance Bypass 3000

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
    Product SKU Price Quantity
    Eaton EX UPS, 1000 VA/900 Watts 86702 $505.18

    Eaton EX 120V 1500 Rack Extended Battery Module (EBM) 86706 $453.15
