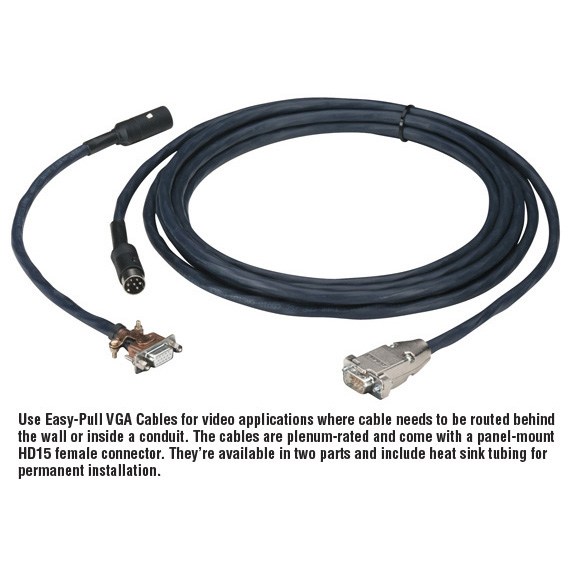

Easy-Pull VGA Cable, Custom Lengths

Run VGA cable through walls or inside tight conduits. This cable goes 150 feet or more!


Extended Double Diamond™ Warranty Available

Product Highlights

  • Panel-mount HD15 connector works perfectly with our DB9 Stainless Steel Wallplates.
  • Perfect for system integration.
  • Guaranteed for life!

  • Description

    Easy-Pull VGA Cable, Custom

    Quick Facts

  • Panel-mount HD15 connector works perfectly with our DB9 Stainless Steel Wallplates.
  • Perfect for system integration.
  • Guaranteed for life!

  • Further Details

  • Connect PC or RGB video sources to display devices like projectors, flat plasma screens, and more.
  • Provide 1024 x 768 video resolution up to 150 feet and 800 x 600 video resolution up to 200 feet.
  • Super flexible! They can be pulled through 3/4" conduits, and they make pull times faster.
  • Includes heat shrink tubing for permanent installation.
  • Available in six standard lengths as well as custom lengths.
  • Plenum-rated jacket.

  • The cable is perfect for system integration and can connect PC or RGB video to display devices such as projectors, video walls, flat plasma screens, and monitors. It maintains excellent signal strength and provides 1024 x 768 resolution up to 150 feet (45.7 m) and 800 x 600 resolution up to 200 feet (60.9 m).

    Designed with a proprietary construction, Easy-Pull VGA Cable is flexible and simplifies system integration. It’s perfect for tight spaces and shortens pull time. In fact, the cable’s construction enables it to be pulled through a 3⁄4" conduit!

    The jacket is plenum rated. It also comes with heat shrink tubing to connect the 6-pin mini DIN permanently.

    Technical Specifications for Easy-Pull VGA Cable, Custom Lengths:

    Attenuation 4.65 dB/100 ft. (30.4 m) nominal at 100 MHz
    Cable Construction 26 AWG tinned, stranded copper
    Capacitance 16.3 pF/ft. nominal
    Impedance 75 ohms nominal
    Insulation Natural foamed fluorinated ethylene propylene, 0.072" (0.2 cm) diameter
    Jacket OFNP PVC
    Resistance 40 ohms/1000 ft. (304.8 m)
    Resolution (Maximum) 1024 x 768: 150 ft. (45.7 m);
    800 x 600: 200 ft. (60.9 m)
    Shield Inner: Aluminum/polyester tape;
    Outer: Spiral 38 AWG tinned copper, 97% coverage
    Time Delay 1.20 ns/ft. nominal
    Velocity of Propagation 85%
    Connectors (1) HD15 M; (1) removable HD15 F; (1) 6-pin DIN M; (1) 6-pin DIN F
    These products work with:
    • Stainless Steel DB9 Wallplates (WP070–WP073)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

    Resources for Easy-Pull VGA Cable, Custom Lengths:

    Application Diagrams

    Connect your Easy-Pull VGA Cable, Custom Lengths with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty

    A warranty is included.


    Double Diamond™ Warranty (Standard)


    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.

    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.

    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Easy-Pull VGA Cable, 15-ft. (4.5-m) EVNPS80-0015 $167.95
    Easy-Pull VGA Cable, 25-ft. (7.6-m) EVNPS80-0025 $204.95
    Easy-Pull VGA Cable, 35-ft. (10.6-m) EVNPS80-0035 $241.95
    Easy-Pull VGA Cable, 50-ft. (15.2-m) EVNPS80-0050 $296.95
    Easy-Pull VGA Cable, 100-ft. (30.4-m) EVNPS80-0100 $479.95
    Easy-Pull VGA Cable, 150-ft. (45.7-m) EVNPS80-0150 $663.95
