Infrastructure Hardware > Jacks & Wallplates

click photo to enlarge

AVS1001

Photo may show similar product

Other views

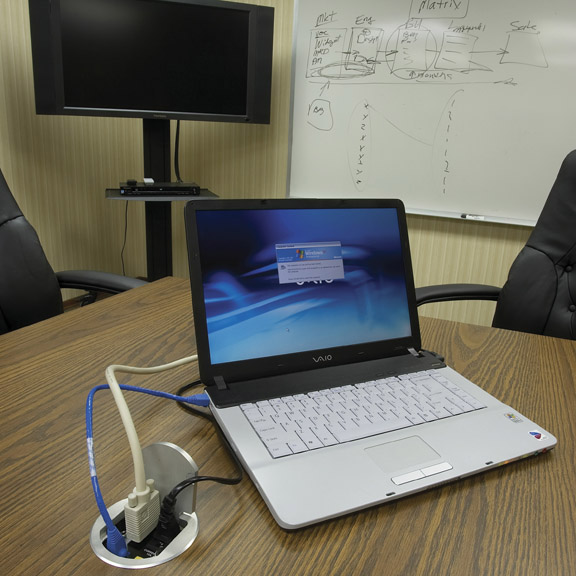

Easy-AV Drop Box with (2) Keystone Openings, (1) AC Power Outlet, (1) HD15 VGA Port, and (1) 3.5-mm Audio Jack, Silver, Square Cover

Stylish box for easy embedding of ports and a power outlet in a conference room table.

AVS1001


Lifetime Warranty

Product Highlights

  • Give you an elegant, unobtrusive way to install drops for audio/video and IT devices, phones, and AC power in a conference room environment.
  • Can be installed in tables, desks, lecterns, control consoles, or any flat surface that’s 3/4" to 2 1/2" thick.
  • Guaranteed for life!

  • Description

    Easy-AV Drop Box with (2) Keystone Openings, (1) AC Power Outlet, (1) HD15 VGA Port, and (1) 3.5-mm Audio Jack, Silver, Square Cover


    Quick Facts

  • Give you an elegant, unobtrusive way to install drops for audio/video and IT devices, phones, and AC power in a conference room environment.
  • Can be installed in tables, desks, lecterns, control consoles, or any flat surface that’s 3/4" to 2 1/2" thick.
  • Guaranteed for life!

  • Further Details

  • Complement any decor. Available in silver or black finish with round or square covers.
  • Chassis is made of rugged, 16-gauge galvanized steel. Milled cover opens more than 90º and stays open when in use.
  • Has two keystone openings for populating with your choice of optional connectors.

  • Black Box® Easy-AV Drop Boxes bring easy connectivity to conference room users who need convenient access to network drops, AC power sources, and audio/video displays.

    The small footprint makes these boxes great for tables and workstations crowded with equipment. Streamlining and organizing work space connections, the drop assemblies eliminate the need to string cables and cords across work areas in various directions. Easy-AV Drop Boxes also offer you a safer alternative to running cables from wall or floor jacks.

    The boxes can also be installed easily in:
  • Lecterns and podiums
  • Classroom desks and computer lab cubicles
  • Hospital and medical lab tables
  • Library settings
  • Internet cafe and cafeteria tables
  • R&D and workbench facilities
  • Retail PoS kiosks and checkout counters

    They’re particularly ideal for schools and publicly accessible workstations, where you want to install connections at desks or cubicles but keep most of the wiring safely and securily concealed from the users.

    Looking to spruce up your boardroom? Then Easy-AV Drop Boxes are the perfect accessories to accomplish that goal. They give you an elegant, stylish way to keep computer, projector, and phone connections out of sight. Undistracted by unsightly wiring, visitors and colleagues can keep focused on important matters.


    Customizable connectivity.
    The boxes are available in two configurations:
  • With a 120-VAC power outlet and a VGA video and audio connector.
  • With dual 120-VAC power outlets.
    All drop boxes also include two keystone openings. You simply order two connectors you want to insert into the openings. Choose from:
  • S-Video plug-ins;
  • RCA connectors for stereo audio and Composite video;
  • CAT5e and CAT6 network connections;
  • RJ-11 telephony jacks;
  • USB Type A/Type B connectors.

    Blank covers and a number of other types of connectors in various colors are also available. To order what you need, call our FREE Tech Support.

    Install easily and built to last.
    Easy-AV Drop Boxes install easily in any flat surface that’s 3/4" to 2 1/2" thick. Using a standard hole saw drill, you simply cut a 3 1/2" diameter round hole in the table or other surface, then drop in the assembly and secure it using the included clamping screws. Drop boxes with round or square top covers are available.

    Plus, they’re built to last. They feature a CNC-milled solid cover with 16-gauge galvanized steel chassis, as well as a cable strain-relief attachment point to minimize physical demands on cables. The cover opens 96º and remains open, and because it features rubber grommets, it snaps shut quietly.

    NOTE: Other connectors and colors are available. Please contact our FREE Tech Support.

  • Technical Specifications for Easy-AV Drop Box with (2) Keystone Openings, (1) AC Power Outlet, (1) HD15 VGA Port, and (1) 3.5-mm Audio Jack, Silver, Square Cover:



    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Easy-AV Drop Box with (2) Keystone Openings, (1) AC Power Outlet, (1) HD15 VGA Port, and (1) 3.5-mm Audio Jack, Silver, Square Cover:

    Manuals

    • Easy-AV Drop Boxes
      Installation/User (2/9/2012)


    Connect your Easy-AV Drop Box with (2) Keystone Openings, (1) AC Power Outlet, (1) HD15 VGA Port, and (1) 3.5-mm Audio Jack, Silver, Square Cover with:

    Accessory: FMT1050

    Panel-Mount USB Coupler, Type A–Type B, Black

    Panel-Mount USB Coupler, Type A–Type B, Black

    Accessory: FMT631-R2

    GigaTrue2 CAT6 Jack, Universal Wiring, Single-Pack, Black

    GigaTrue2 CAT6 Jack, Universal Wiring, Single-Pack, Black

    Accessory: FMT921-R2

    GigaBase2 CAT5e Jack, Universal Wiring, Black, Single-Pack

    GigaBase2 CAT5e Jack, Universal Wiring, Black, Single-Pack

    Accessory: AVS1100

    Easy-AV Drop Box with (2) Keystone Openings, (2) AC Power Outlets, Silver, Round Cover

    Easy-AV Drop Box with (2) Keystone Openings, (2) AC Power Outlets, Silver, Round Cover

    Accessory: FMT239

    USOC RJ-11 Jack, Black, Single-Pack

    USOC RJ-11 Jack, Black, Single-Pack

    Accessory: FMT375

    GigaStation2 S-Video, 110-Punchdown Snap Fitting, Black

    GigaStation2 Snap Fittings, S-Video, 110-Punchdown, Black

    Accessory: FMT400

    RCA Connector, Passthrough, Female/Female, Yellow

    RCA Connector, Passthrough, Female/Female, Yellow
