LMC3005A

Photo may show similar product

Other views

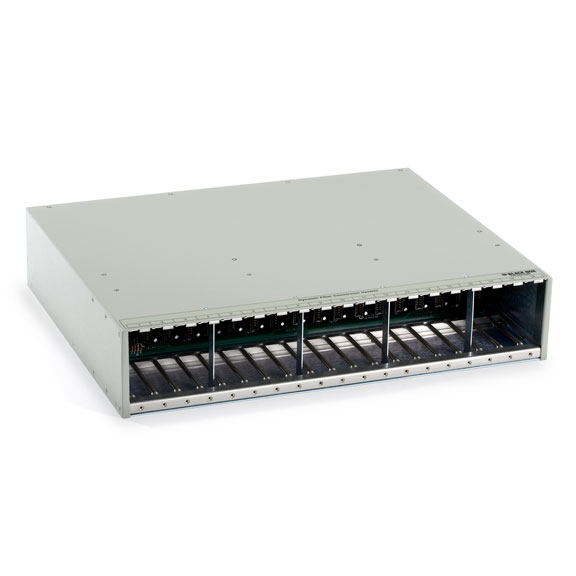

Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) AC Power Supplies

This dynamic modular system grows with your network.

LMC3005A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • AC or DC power supplies.
  • Tough construction for hard use.


  • Description

    Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) AC Power Supplies


    Quick Facts

  • AC or DC power supplies.
  • Tough construction for hard use.

  • Further Details

    The Dynamic Fiber Conversion System is the battleship of media conversion systems. It's tough, extremely versatile, and manageable, making it perfect for the demands of your enterprise network. And now, with the addition of VLAN Tagging modules, you can selectively shut down remote connections during off hours.

    The system is NEBS Level 3 certified, meeting the stringent durability requirements for carrier class applications. NEBS Level 3 certification guarantees that the equipment performs well in harsh environmental conditions and doesn't interfere with nearby electronic devices. To verify certification of individual modules, contact our FREE Tech Support.

    More interface choices
    This professional-grade system has more chassis choices than any other media converter we offer—19-, 5-, 2, and 1-slot power chassis! The system is SNMP manageable, and all modules are hot swappable (although there are special procedures for hot swapping DC power supplies). This wide range of options makes the Dynamic Fiber Conversion System ideally suited for fiber-based, carrier-class or enterprise networks.

    Chassis
    Choose from many different powered chassis with a choice of power supplies. All but the 1-Slot Power Chassis are SNMP manageable with the addition of the SNMP Management Module.



    Technical Specifications for Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) AC Power Supplies:

    Chassis:
    CE Approval Yes
    Power LMC3004A-LMC3005A, LMC3010A, LMC3080A, LMC3014A: 110/230 VAC, 50/60 Hz, autosensing, internal;
    LMC3007A-LMC3008A, LMC3012A, LMC3081A: ± 48 VDC, internal;
    LMC3015A: 110 VAC, 60 Hz, external (220-VAC power supply available on request)
    Size 19-Slot Chassis: 3.5"H x 17.2"W x 14"D (8.9 x 43.7 x 35.6 cm);
    5-Slot Chassis: 1.75"H x 17.2"W x 9"D (4.4 x 43.7 x 22.9 cm);
    2-Slot Chassis: 1.9"H x 6.7"W x 5.5"D (4.8 x 17 x 14 cm);
    1-Slot Chassis: 1"H x 3.8"W x 5.5"D (2.5 x 9.7 x 14 cm)
    Weight 19-Slot Chassis: Single power supply: 16 lb. (7.3 kg); Dual power supplies: 18.5 lb. (8.4 kg);
    5-Slot Chassis: Single power supply: 7.5 lb. (3.4 kg); Dual power supplies: 9 lb. (4.1 kg);
    2-Slot Chassis: 2.5 lb. (1.1 kg);
    1-Slot Chassis: 1.5 lb. (0.7 kg)
    These products work with:
    • GigaBase® 350 CAT5e Patch Cable, 350-MHz, 4-Pair, Straight-Pinned, PVC (EVNSL85, etc.)
    • Premium Ceramic, Multimode 62.5-Micron Fiber Optic Patch Cables (EFN110)
    • Single-Mode, 9.0-Micron Duplex Fiber Optic Cable (EFN310)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) AC Power Supplies:


    Connect your Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) AC Power Supplies with:

    Double Diamond Warranty

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $107.00

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $213.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    The Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) AC Power Supplies comes with a standard 1 Year warranty already included.

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!*

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product** for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Warranty subject to certain exclusions and limitations
    ** Certain products may not be eligible.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (1) AC Power Supply LMC3004A $709.95

    Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (1) -48-VDC Power Supply LMC3007A $1,019.95

    Dynamic Fiber Conversion System, 19-Slot Power Chassis (Managed, Rackmount) with (2) -48-VDC Power Supplies LMC3008A $1,529.95

    Dynamic Fiber Converter System 5-Slot Managed Power Chassis, Rackmount with (1) AC Power Supply LMC3010A $538.95

    Dynamic Fiber Converter System, 5-Slot Power Chassis, Managed, Rackmount, with (1) -48-VDC Power Supply. LMC3012A $709.95

    Dynamic Fiber Conversion System, 2-Slot Power Chassis, Managed, for Desktop Use, AC Powered LMC3014A $179.95

    Dynamic Fiber Conversion System 1-Slot Power Chassis with (1) AC Power Supply LMC3015A $77.95

    Dynamic Fiber Converter System, 5-Slot Power Chassis, Managed, Rackmount, with (2) AC Power Supplies. LMC3080A $845.95

    Dynamic Fiber Converter System 5-Slot Managed Power Chassis, Rackmount LMC3081A $1,119.95



    Add to Cart

    Price: $1,069.95

    On Back Order

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 21.3 lbs.
    HxWxD: 6.3 x 17.4 x 22.4 in.

    What’s more, we also have a 45-day return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.
