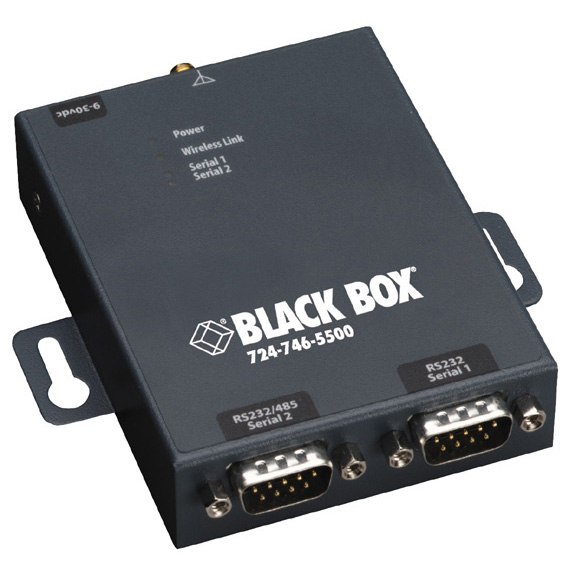

LES2702A-WL

Photo may show similar product

Other views

Dual-Port Wireless Device Server

Connect, monitor, manage, and control two serial devices without wires!

LES2702A-WL

Extended Double Diamond™ Warranty Available
(2 Year)

Product Highlights

  • Access remote equipment over a network or the Internet.
  • Operates on the 802.11b standard.
  • Provides transparent communications. No need to develop special software.

  • Description

    Dual-Port Wireless Device Server


    Quick Facts

  • Access remote equipment over a network or the Internet.
  • Operates on the 802.11b standard.
  • Provides transparent communications. No need to develop special software.

  • Further Details

  • Simplifies connectivity where cabling is unavailable or prohibited.
  • Two DB9 DTE serial ports support RS-232, RS-422, or RS-485 communications.

    Go wireless.
    Want untethered communication with serial equipment? You have it with the Dual-Port Wireless Device Server from Black Box. With this little box, you can quickly connect two serial devices to an 802.11b wireless network. Create ad hoc networks with servers connected to serial equipment. Or use the server to connect serial equipment to your existing Ethernet network via an access point.

    The server works with all types of serial equipment, such as PCs, Point of Sale (POS) equipment, audio/visual equipment, cameras, and more.

    Simplified connectivity.
    By merging wireless communications and device server technology, this box simplifies connectivity in areas where cabling is prohibited or where mobility is required.

    Because the server is transparent to your serial devices, it doesn’t change the way you work. The box simply becomes a conduit between you and your devices over the network or the Internet. It encapsulates serial data into packets and transports it over wireless networks.

    Easy management.
    To enable access to a local network or the Internet, the server integrates a TCP/IP stack and OS. It even includes a built-in Web server, which can be used for configuration or to display operating and troubleshooting information.

    The server can even replace dedicated modems because it accepts AT modem commands on the serial port and establishes a network connection to the end device.

    Quick setup.
    Set up the server locally through the serial port, or remotely over a network using the included software or a Web browser. Flash memory enables future software upgrades.


  • Technical Specifications for Dual-Port Wireless Device Server:

    SPECIFICATIONS
    Management — LANTRONIX® DeviceInstaller GUI, Serial login, SNMP, Telnet™ login, HTTP
    Network Connector — Antenna
    Network Standards — WEP, ARP, UDP/IP, TCP/IP, ICMP, SNMP, AutoIP, DHCP, TFTP, Telnet, HTTP
    Operation — 802.11b
    Processor Characteristics — CPU: DDSTni-EX (enhanced 80186, 88 MHz);
    Memory: 256 KB SRAM, 512 KB flash
    Serial Characteristics — Control Signals: RTS, CTS, DSR, DTR, DCD;
    Data rate: 300 to 921,600 bps;
    Data format: 7 or 8 data bits; odd, even, or no parity; 1 or 2 stop bits;
    Flow control: X-ON/X-OFF, RTS/CTS
    Serial Interface — Port 1: RS-232;
    Port 2: RS-232/422/485, software selectable
    Software — Included: Configuration software for Window® 98/Me/XP, Windows NT®, and Windows 2000;
    CE Approval — Yes
    Indicators — (4) LEDs: (1) Power, (1) Wireless Link, (1) Serial 1, (1) Serial 2
    Power — 115-VAC, 60-Hz adapter, 9 to 30 VDC, 2 W maximum
    Size — 0.9“H x 2.8“W x 3.7“D (2.3 x 7.1 x 9.4 cm)
    Weight — 0.9 lb. (0.4 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
