Power > Power Distribution

click photo to enlarge

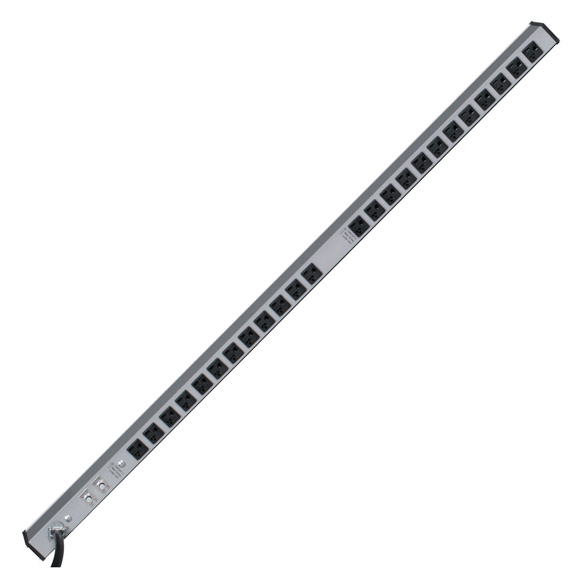

PS585A

Photo may show similar product

Other views

Dual-Circuit Power Distribution Unit, 30-Amp

Twice the capacity of an ordinary power strip.

PS585A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Provides 24 receptacles in two banks of 12.
  • Designed for use in cabinets and enclosures.

  • Description

    Dual-Circuit Power Distribution Unit, 30-Amp


    Quick Facts

  • Provides 24 receptacles in two banks of 12.
  • Designed for use in cabinets and enclosures.

  • Further Details

  • Receptacle banks are clearly labeled.
  • Aluminum housing.
  • Built-in T-slot mounting rail for easy installation.
  • Slim profile for installation in tight corners.
  • Meets UL® 60950-1 1st Edition and ITE standards.
  • Each circuit is independent—when one circuit is overloaded, the other still gets power.
  • Two UL® 489 listed 15-amp circuit breakers are on the front for easy reset.
  • The 30-amp capacity enables you to safely draw twice as much power as a standard 15-amp power strip.


  • Technical Specifications for Dual-Circuit Power Distribution Unit, 30-Amp:

    Circuit Breakers — (2) 15-amp UL® 489 Listed
    Conformance Standards — UL® 60950-1 1st Edition
    Load Capacity — (2) 15-amp UL® 489 Listed
    Outlets — (24) NEMA 5-20R
    Plug — L5-30P on 12-ft. (3.6-m) cord
    Size — 2.8"H x 1.5"W x 48"L (7.1 x 3.8 x 121.9 cm)
    Weight — 8 lb. (3.6 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Dual-Circuit Power Distribution Unit, 30-Amp:


    Connect your Dual-Circuit Power Distribution Unit, 30-Amp with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A Two year warranty is included.

    Extended Two years for one Warranty Available


    Protect your purchase with an additional Two years for oneDouble Diamond™ warranty!
    Cost: $19.00

    Extended Three years for two Warranty Available


    Protect your purchase with an additional Three years for twoDouble Diamond™ warranty!
    Cost: $38.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    The most complete product warranty exclusively from Black Box

    The Double Diamond™ Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most products come with a one- or two-year warranty. Some products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life! Standard Warranty features are as follows:

    Worry-Free Purchases

    If your new Black Box® brand products are accidentally damaged, you're covered with this no-questions asked warranty. FREE

    Coverage

    Double Diamond™ is the standard warranty that comes with your new Black Box® brand product. Most products come with a one- or two-year warranty.

    Lifetime Guarantees

    Many products, such as copper cables, manual switches, cabinets, and racks, are guaranteed for life.

    Fast Service

    During the warranty period, Black Box® Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Extra Coverage

    Extend your warranty or protect a previously purchased Black Box® brand product* for an additional year for only 10% of the current retail price! And when you do, we give you the second year of extended coverage free! FREE Tech Support Hotline. No cost. No contracts. No kidding!

    No-Risk 45-Day Return Policy

    If it's not right, send it back.
    (Excludes custom built products)

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! Forget It.
    Tech Support Hotline 100% FREE! $$$
