TS525A

Photo may show similar product

Other views

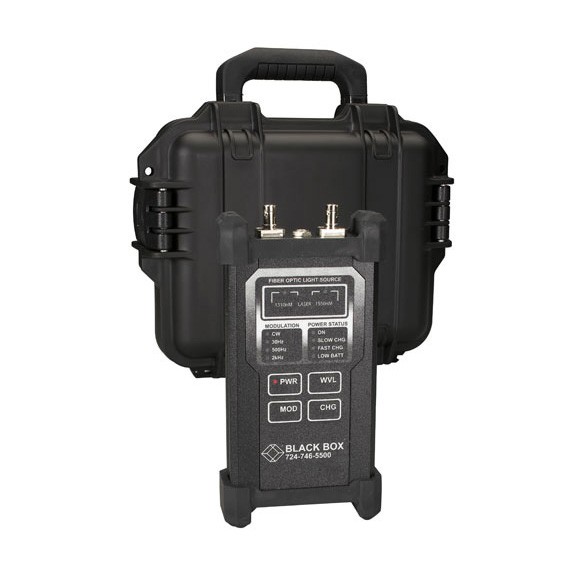

Dual 1310-/1550-nm Laser Source

Accurately measure power loss in your fiber optic LAN with two laser outputs.

TS525A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Double-port design enables both emitters to function simultaneously.
  • Generates 1310- and 1550-nm temperature-stabilized outputs.


  • Description

    Dual 1310-/1550-nm Laser Source


    Quick Facts

  • Double-port design enables both emitters to function simultaneously.
  • Generates 1310- and 1550-nm temperature-stabilized outputs.

  • Further Details



    Technical Specifications for Dual 1310-/1550-nm Laser Source:

    Bandwidth 35/170
    Modulation 30 Hz, 500 Hz, 2 kHz
    Pout -7 dBm minimum
    Stability ±0.10
    Wavelength 1310-/1550-nm
    Connectors (1) pair of SC, (1) pair of ST, (1) pair of FC (interchangeable)
    Power (4) AA alkaline batteries or (1) AC wall pack with (4) nickel-cadmium cells
    Size 6.75"H x 2.25"W x 1.5"D (17.1 x 5.7 x 3.8 cm)
    Weight 0.6 lb. (0.3 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Dual 1310-/1550-nm Laser Source:


    Connect your Dual 1310-/1550-nm Laser Source with:

    Accessory: TS515A-R2

    Multimode Test Sets, 850 nm

    Multimode Test Sets and Laser Source, 850-nm Multimode Test Set
