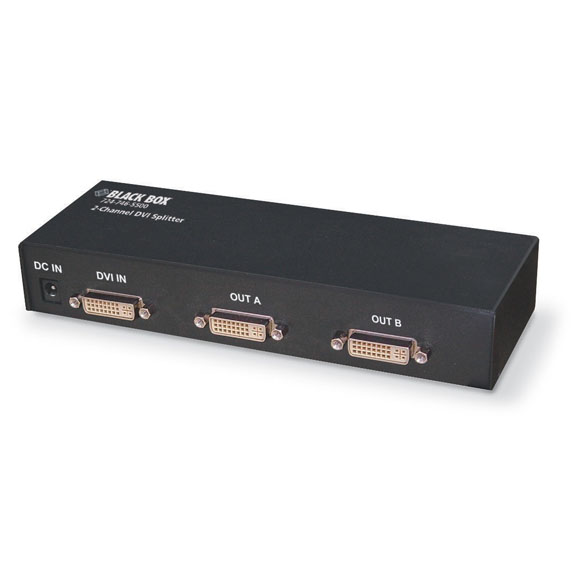

Digital Visual Interface (DVI) Splitter, 2-Channel

For eye-catching digital images on multiple screens, order a splitter.

AC1031A-R2-2

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Reproduce digital video signals without sacrificing quality.
  • Split your PC's DVI signals to two separate DVI displays.


  • Description

    Digital Visual Interface (DVI) Splitter, 2-Channel


    Quick Facts

  • Reproduce digital video signals without sacrificing quality.
  • Split your PC's DVI signals to two separate DVI displays.

  • Further Details

  • Supports DVI-I (integrated analog and/or digital) video signals.
  • Can be cascaded up to two levels deep for additional outputs.
  • Provides resolutions of up to 1920 x 1200 (WUXGA) at 60 Hz and 1080i HDTV.
  • No software needed. Simple, plug-and-play installation for quickly linking to DVI-enabled screens and projectors.
  • Accurately, reliably reproduces the digital video signal without signal attenuation and distortion.
  • Extends video, too. Locate screens up to 33 feet (10 m) away from the splitter and still enjoy clear digital images.
  • Also supports 16.4 feet (5 m) of DVI cabling from the PC to its input port.


  • Technical Specifications for Digital Visual Interface (DVI) Splitter, 2-Channel:

    Distance (Maximum) From PC to splitter: 16.4 ft. (5 m);
    From splitter to DVI displays: 33 ft. (10 m)
    Mean Time Between Failures 90,000 hours (estimate)
    Resolution (Maximum) PC: 1920 x 1200 (WUXGA) at 60 Hz;
    HDTV: 1080i
    Standards DDWG DVI 1.0; DVI-I Single Link
    CE Approval Yes
    RoHS Yes
    Connectors Input: (1) DVI-I;
    Output: (2) DVI-I
    Power Input: 100-240 VAC, 50-60 Hz, autosensing, external;
    Output: 12 VDC, 1 A
    Size 1.8"H x 6"W x 3"D (4.6 x 15.2 x 7.6 cm)
    Weight 1.5 lb. (0.7 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Digital Visual Interface (DVI) Splitter, 2-Channel:

    Manuals

    • Digital Visual Interface (DVI) Splitters
      User Mnauals for the AC1031A-R2-2 and AC1031A-R2-4 (Version 3)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings

    Black Box Explains


    Connect your Digital Visual Interface (DVI) Splitter, 2-Channel with:

    Accessory: EVNDVI03-0006

    Digital Visual Interface (DVI) Cables, 6-ft. (1.8-m)

    Digital Visual Interface (DVI) Cables, DVI-D Male/DVI-D Female Extension , 6-ft. (1.8-m)
