FOPM-200

Photo may show similar product

Other views

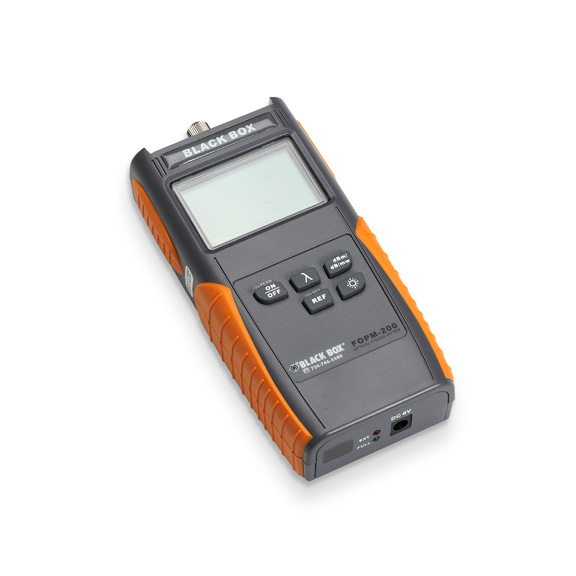

Deluxe Optical Power Meter

Test transmission quality in LANs, WANs, telecomm networks, and more.

FOPM-200

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Ideal for testing transmission quality in LANs, WANs, telecommunications networks, and other long-distance applications.
  • Works at six wavelengths: 850, 1300, 1310, 1490, 1550, and 1625 nm.


  • Description

    Deluxe Optical Power Meter


    Quick Facts

  • Ideal for testing transmission quality in LANs, WANs, telecommunications networks, and other long-distance applications.
  • Works at six wavelengths: 850, 1300, 1310, 1490, 1550, and 1625 nm.

  • Further Details

  • Use to identify optical fiber strands, measure optical attenuation, verify continuity, and test transmission quality.
  • Referencing function helps ensure efficiency, even when two units are far apart.
  • An auto-off feature saves battery power.
  • Includes two rechargeable Ni-MH AA batteries and an AC adapter.
  • Low-battery indicator reminds you to recharge the battery.
  • LCD backlight enables you to work in the dark.
  • Three measurement modes: power (dBm), relative, (dB), and logarithmic (mW).
  • Includes a FC/PC interchangeable connector.

  • This product works with:
  • Fiber Light Sources (FOLS-MM-200, FOLS-SM-200)
  • Questions? Contact our FREE Tech Support.


    Technical Specifications for Deluxe Optical Power Meter:

    Auto Power Off Yes
    Accuracy* ±5% ±1 nW
    Backlight Yes
    Calibrated Wavelength 850, 1300, 1310, 1490, 1550, 1625 nm
    Detector Type InGaAs
    Measuring Range -70 to +10 dBm
    Reference Value Yes
    Resolution 0.01 dB@ -60 to +10 dBm; 0.1 dB @ -70 to -60 dBm
    Temperature Operating: +14 to +122° F (-10 to +50° C);
    Storage: -4 to +158° F (-20 to +70° C)
    Tone Detection (H2) 270 Hz, 1 kHz, 2 kHz
    Connectors FC/PC, SC/PC, and ST/PC interchangeable connectors included
    Power Supply (2) 1.2-V Ni-MH batteries, AC adapter (included)
    Dimensions 4.6"H x 3.0"W x 1.8"D (11.6 x 7.6 x 4.5 cm)
    Weight 0.6 lb. (0.3 kg)

    * Valid at 1500 nm, CW, 23°C ± 3° C, relative humidity less than or equal to 70%, with an FC connector

    This product works with:
  • Fiber Light Sources (FOLS-MM-200, FOLS-SM-200)
  • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Deluxe Optical Power Meter:

    Manuals

    • Deluxe Optical Power Meter Manual
      Manual for the FOPM-200.

    Quick Start Guides

    • Deluxe Optical Power Meter Quick Start Guide (QSG)
      Quick Start Guide (QSG) for the FOPM-200.

    Product Data Sheets

    Black Box Explains


    Connect your Deluxe Optical Power Meter with:

    Accessory: FOVFL

    Visual Fault Locator for Fiber

    Visual Fault Locator for Fiber

    Accessory: FOVFL-PEN

    Visual Light Source Pen for Fiber

    Visual Light Source Pen for Fiber

    Accessory: F3X

    F3X Fiber Fault Finder Gun with Hard Carrying Case

    F3X Fiber Fault Finder Gun with Hard Carrying Case

    Accessory: FOLTI

    Live Traffic Identifier for Fiber

    Live Traffic Identifier for Fiber

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 1 Year Warranty Available


    Protect your purchase with an additional 1 Year Double Diamond™ warranty!
    Cost: $69.50

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamond™ warranty!
    Cost: $139.00

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    Product SKU Price Quantity
    Deluxe Optical Power Meter with Memory FOPM-210 $975.00

    Basic Optical Power Meter FOPM-100 $389.95

    Deluxe Optical Power Meter with Memory and Light Source FOMM-200 $2,975.00
