Testers & Tools > Testers

click photo to enlarge

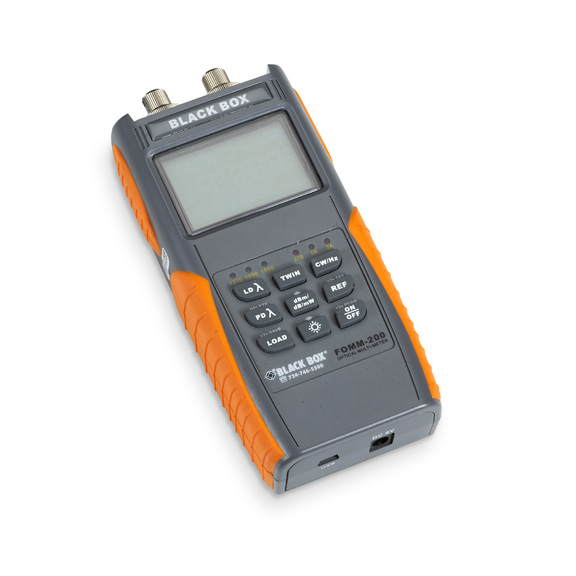

FOMM-200

Photo may show similar product

Other views

Deluxe Optical Power Meter with Memory and Light Source

Get a power meter and 3-wavelength infrared laser light source in one.

FOMM-200

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Get a power meter and 3-wavelength infrared laser light source in one.
  • This compact combo for fiber installation and maintenance is easy to use and lightweight.
  • 2-in-1 unit is ideal for one tech to test cables and data center links.

  • Description

    Deluxe Optical Power Meter with Memory and Light Source


    Quick Facts

  • Get a power meter and 3-wavelength infrared laser light source in one.
  • This compact combo for fiber installation and maintenance is easy to use and lightweight.
  • 2-in-1 unit is ideal for one tech to test cables and data center links.

  • Further Details

  • Auto wavelength recognition automatically uses the proper calibration parameters and decreases the potential for errors.
  • Boasts a large data storage capacity of 999 items.
  • Convenient for field testing and later transferring the results to a PC.
  • Includes software and a USB interface.
  • Interchangeable connectors available for both power meter and laser source.


  • Technical Specifications for Deluxe Optical Power Meter with Memory and Light Source:

    Power Meter:
    Accuracy — ±5% ± 1 nW
    Calibrated Wavelength — 850, 1300, 1310, 1490, 1550, 1625 nm
    Display Precision — 0.01
    Display Units — dB, dBm, mW, µW
    Measuring Range (dBm) — -70 to +10 dBm
    Reference Value — Yes
    Tone Detection — 270 Hz, 1 kHz, 2 kHz (input power less than or equal to -40 dBm) (input power greater than or equal to -40 dBm

    Wavelength Recognition — 1310, 1490, 1550 nm
    Laser Source:
    Calibrated Wavelength — 1310, 1490, 1550 nm
    Modulated Frequencies — 270 Hz, 1 kHz, 2 kHz
    Output Power — -5 dBm ± 0.5 dB
    Output Stability* — Short term (15 minutes): 1310/1550 nm: ±0.05 dB; 1490 nm: ± 0.1 dB;
    Long term (5 hours): 1310/1550 nm: ± 0.1 dB; 1490 nm: ± 0.1 dB

    General:
    Auto Power Off — Yes
    Backlight — Yes
    Temperature — Operating: +4 to +122° F (-10 to +50° C);
    Storage: -4 to +158° F (-20 to +70° C)
    Connectors — Interchangeable FC/SC/ST for PC/APC
    Power Supply — (2) 1.2-V Ni-MH batteries, AC adapter (included)
    Size — 6.6"H x 3"W x 1.7"L (16.8 x 7.6 x 4.3 cm)
    Weight — 0.6 lb. (0.3 kg)
    * Valid at 1550 nm, CW, 23° C ± 3° C; Relative humidity equal to 70%, with an FC connector


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
