Premises Security > Access Control

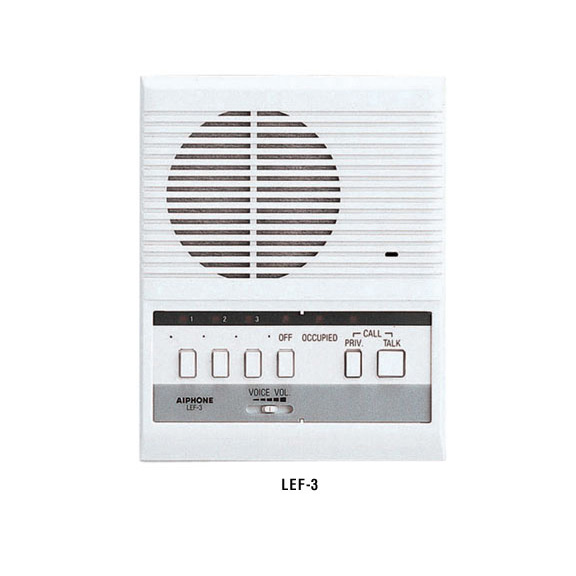

click photo to enlarge

LEF-3L

Photo may show similar product

Other views

Deluxe Open Voice Intercom System, Master Station, 3-Call with Selective Door Release

Receive up to 10 calls and open select doors in the system.

LEF-3L


One year Warranty

Product Highlights

  • Offered with 3-call, 5-call, and 10-call channels (supporting up to 4, 6, or 11 stations).
  • Notify you of incoming calls with an electronic tone and an LED that indicates calling station.
  • Build your system with one or more master stations and a variety of substations (sold separately).

  • Description

    Deluxe Open Voice Intercom System, Master Station, 3-Call with Selective Door Release


    Quick Facts

  • Offered with 3-call, 5-call, and 10-call channels (supporting up to 4, 6, or 11 stations).
  • Notify you of incoming calls with an electronic tone and an LED that indicates calling station.
  • Build your system with one or more master stations and a variety of substations (sold separately).

  • Further Details

  • A privacy button prevents eavesdropping from others in the intercom system.
  • Offer selective calling and feature a single talkpath with push-to-talk operation and voice call-tone volume controls.
  • LEF-10S also offers an “all-call” button that enables an announcement to be broadcast from the master station to all stations.
  • All except for the LEF-3 offer selective door release switch for operating an electric door strike at substations. For each door, order an optional Electric Door Release (EL-9S) and Door-Release Relay (RY-PA).
  • Can also be used to call up a CCTV camera, turn on lights, or control other devices (with the addition of the Door-Release Relay).
  • Can be mounted on a single-gang box. The LEF-5, LEF-10, and LEF-10S units can also be mounted to a desk with one of the optional Desktop Termination Boxes (LEW-5, LEW-10, LEW-10S).
  • Power supply (PS-1225UL) required for each master station.
  • Add options such as door releases, chimes, ceiling speakers, paging adapters, and more.

  • Technical Specifications for Deluxe Open Voice Intercom System, Master Station, 3-Call with Selective Door Release:

    Warranty — 1 year
    NOTE: Wiring distances are 650 feet (198.1 m) over 22 AWG wire or 1600 feet (487.6 m) over 18 AWG wire.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for Deluxe Open Voice Intercom System, Master Station, 3-Call with Selective Door Release:

    Product Data Sheets

    Application Diagrams


    Connect your Deluxe Open Voice Intercom System, Master Station, 3-Call with Selective Door Release with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A One year warranty is included.
