Testers & Tools > Testers

click photo to enlarge

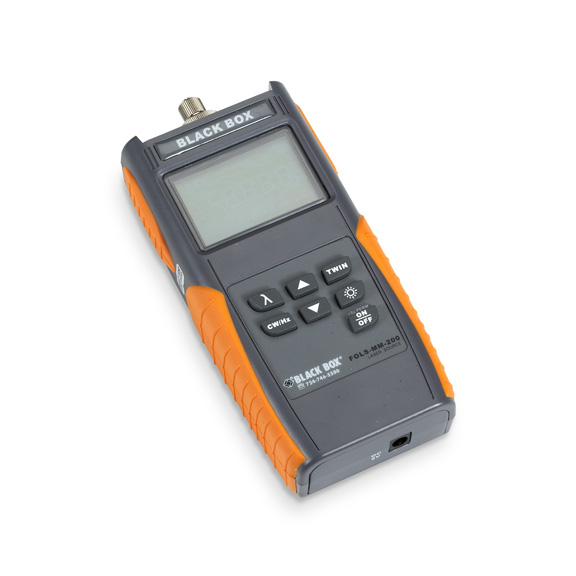

FOLS-MM-200

Photo may show similar product

Other views

Deluxe Multimode Light Source

Auto wavelength recognition and adjustable power save you valuable testing time.

FOLS-MM-200

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Adjust the output power up and down in 0.1 dB increments from -2 to -8 dBm reducing errors and communication time between two techs.
  • Operates in continuous wave (CW ) or modulated mode.
  • Choose from three output frequencies: 270 Hz, 1 kHz, and 2 kHz.


    • Description

    Deluxe Multimode Light Source


    Quick Facts

  • Adjust the output power up and down in 0.1 dB increments from -2 to -8 dBm reducing errors and communication time between two techs.
  • Operates in continuous wave (CW ) or modulated mode.
  • Choose from three output frequencies: 270 Hz, 1 kHz, and 2 kHz.

    • Further Details

  • Advanced light source is ideal for testing long-haul runs.
  • A single-output connector provides stable power at dual wavelengths.
  • Includes two niMH AA rechargeable batteries and an AC adapter.
  • An auto-off feature saves battery power.
  • Low-battery indicator reminds you to recharge the battery.
  • An LCD backlight enables you to work in the dark.
  • Includes FC/PC, SC/PC, and ST/PC interchangeable connectors.
  • Compact unit is lightweight and easy to carry.
  • Light sources are available in basic and deluxe models for single-mode and multimode cable.
  • Works with our Deluxe Fiber Optic Power Meters to measure optical loss.

    • This product works with:
  • Deluxe Fiber Optic Power Meter (FOPM-200)
  • Deluxe Fiber Optic Power Meter with Memory (FOPM-210)
    • Questions? Contact our FREE Tech Support.


    Technical Specifications for Deluxe Multimode Light Source :

    Adjustable Range — ±3 dB, 0.1 dB/steps
    Auto Power-Off — Yes
    Backlightling — Yes
    Central Wavelength —850 ± 10 nm, 1300 ± 20 nm
    Emitter Type— Laser Diode (LD)
    Fiber Type—Multimode
    Laser — Class 1
    Output Frequency —270 Hz, 1 kHz, 2 kHz
    Output Power — -5.0 dBm
    Output Stability* —Short term (15 minutes): ±0.1 dB/15 min. at 850 and 1300 nm
    Long term (5 hours): ± 0.2 dB/5 hr. at 850 and 1300 nm
    Output Wavelength (nm) — 850 nm, 1300 nm
    Spectral Width —5 nm
    Connectors — FC/PC, SC/PC, ST/PC interchangeable connectors included
    Temperature — Operating: +14 to +122° F (-10 to +50° C);
    Storage: -4 to +155° F (-20 to +70° C)
    Power —(2) Ni-MH (AA) rechargeable batteries (included), AC adapter (included)
    Size — 6.3"H x 3"W x 1.8"D (16 x 7.6 x 4.5 cm)
    Weight — 0.6 lb. (0.3 kg)

    * Valid at 1550 nm, CW, 73° F ± 5° F (23° C ± 3° C); Relative humidity: less than or equal to 70% with an FC connector

    This product works with:
  • Deluxe Fiber Optic Power Meter (FOPM-200)
  • Deluxe Fiber Optic Power Meter with Memory (FOPM-210)
    • Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
