Industrial > Cabinets & Racks

click photo to enlarge

RMN350A-R2

Photo may show similar product

Other views

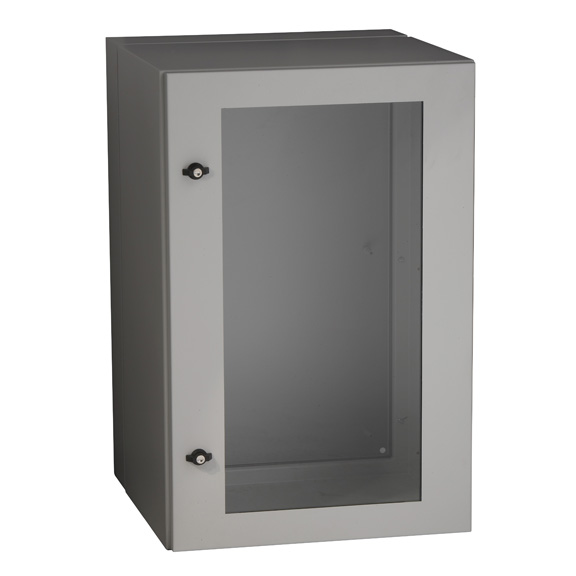

DataSafe NEMA 12 Wallmount Cabinet, 19U

Keep your data equipment safe—but within sight—in harsh indoor environments.

RMN350A-R2


Lifetime Warranty

Product Highlights

  • Weight capacity of 175 pounds.
  • Designed to protect against dust and liquids in indoor settings.
  • Oil-resistant, foam-in-place gasket and adhesive provide a secure seal.
  • Guaranteed for life!

  • Description

    DataSafe NEMA 12 Wallmount Cabinet, 19U


    Quick Facts

  • Weight capacity of 175 pounds.
  • Designed to protect against dust and liquids in indoor settings.
  • Oil-resistant, foam-in-place gasket and adhesive provide a secure seal.
  • Guaranteed for life!

  • Further Details

  • Front compartment opens with a quarter-turn latch to allow for access to rear connections.
  • Front door has a window for easy monitoring of cabinet‘s interior. Glass is bonded in place to ensure maximum visibility with a high degree of safety.
  • Adjustable square hole rack angles and EIA-standard universal spacing make installing 19" equipment of different depths easy.
  • Rear compartment‘s self-aligning latching gives you more reliability.
  • Front door locks with slotted screwdriver.
  • Light gray polyester powder finish over phosphatized surfaces—both inside and outside the cabinet.
  • Wallmount brackets are included. Mount securely on the wall to free your valuable floor space for other uses.
  • Also available in a 13U model (RMN300A-R2).


  • Sized right for the small data center, our durable DataSafe NEMA 12 Wallmount Cabinet combines industrial-strength insulation and space-saving mounting flexibility in an enclosure that keeps everything inside within your view. A full front window, built into the front door, makes this possible. Your sensitive electronic components are kept safely tucked away and can be monitored without opening the cabinet panel.

    The DataSafe NEMA 12 Wallmount Cabinet features a double-hinged front compartment that swings out to enable easy access to the rear of rackmounted equipment. To open and close the compartment, just turn a flush quarter-turn latch.

    Designed for indoor use only, the cabinet meets NEMA Type 12 guidelines for protection against falling dirt, circulating dust, and dripping or splashing noncorrosive liquids, so your mission-critical equipment can be kept safe from dust, moisture, and contaminants.

    For installing “nonrackmountable” devices in the cabinets, order a 19U Panel (RMN351-R2). It mounts on the face of the cabinet’s rear wall.

    To wallmount the cabinet, secure the included wallmount brackets to it. This enables you to slide the cabinet over the screws you mount in the wall.


    Technical Specifications for DataSafe NEMA 12 Wallmount Cabinet, 19U:

    Overall Height — 30.18" (76.65 cm)
    Usable Height — 29.18" (74.12 cm)
    Overall Width — 23.62" (59.99 cm)
    Usable Width — 23" (58.42 cm)
    Overall Depth — 21.65" (54.99 cm)
    Usable Depth — 20.65" (52.45 cm)
    Rack Units — 19U
    Load Capacity — 175 lb. (79.4 kg)
    Warranty — Lifetime
    This product works with:
  • DataSafe NEMA 12 Wallmount Cabinet 19U Panel (RMN351-R2)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Connect your DataSafe NEMA 12 Wallmount Cabinet, 19U with:
