Industrial > Data Sharing

click photo to enlarge

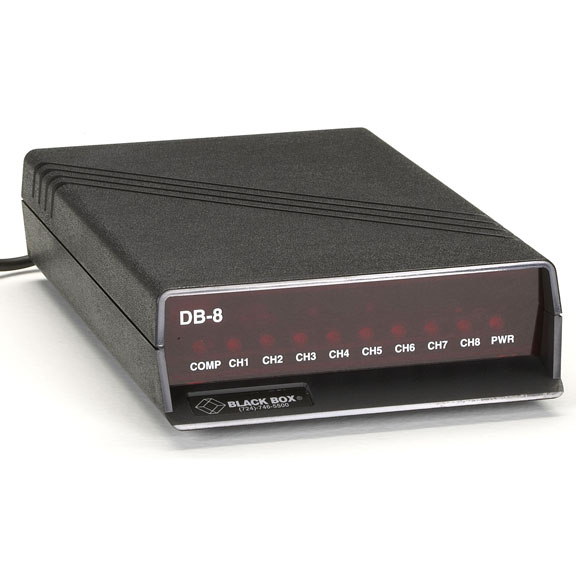

TL159A

Photo may show similar product

Other views

Data Broadcast Unit, RJ-11

Send your training demo to eight PCs—simultaneously.

TL159A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Send async data to as many as eight printers, terminals, PCs, plotters, or other slave devices.

  • Description

    Data Broadcast Unit, RJ-11


    Quick Facts

  • Send async data to as many as eight printers, terminals, PCs, plotters, or other slave devices.

  • Further Details

  • All ports are DTE/DCE switch-selectable.
  • Put one between your async CPU and up to eight terminals. Students see everything on your screen.
  • Ideal for polling applications or other controlled environments.
  • DB25 model is rackmountable and enables you to connect each port directly and quickly to slave ports.
  • Use RJ-11 version in modular wiring environments. Order an optional RJ Adapter Kit to connect it to premise DTEs equipped with DB25 connectors.

  • Technical Specifications for Data Broadcast Unit, RJ-11:

    Flow Control — Software only, transparent to speed and data
    Protocol — Async
    Speed — Transparent
    User Channels — 8
    Interface — RS-232
    Connectors — TL158A-R4: (9) DB25 F;
    TL159A: (9) RJ-11
    Power — 115 VAC, 60 Hz
    Size — TL158A-R4: 2.3"H x 12.2"W x 11.1"D (5.8 x 31 x 28.2 cm);
    TL159A: 1.5"H x 5.5"W x 8.5"D (3.8 x 14 x 21.6 cm)
    Weight — TL158A-R4: 8.3 lb. (3.8 kg);
    TL159A: 2.4 lb. (1.1 kg)
    NOTE: The TL159A is not rackmountable.

    These products work with:
  • Standard RS-232 Low-Noise Cable, 25-Conductor (ECM25T, ECM25C)
  • RJ-11 (4-Wire) Modular Cable, Straight-Pinned (EL04MS)
    The TL158A-R4 also works with:
  • Rackmount Bracket (TL486)
    The TL159A also works with:
  • RJ-11 Adapters (FA252–FA253)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for Data Broadcast Unit, RJ-11:

    Product Data Sheets

    Application Diagrams


    Connect your Data Broadcast Unit, RJ-11 with:

    Accessory: EL04MS-07

    RJ-11 Modular Cable, 4-Wire, Straight-Pinning, 7-ft. (2.1-m)

    RJ-11 Modular Cable, 4-Wire, Straight-Pinning, 7-ft. (2.1-m)

    Accessory: TL486

    Peripheral Switch Rackmount Bracket

    Peripheral Switch Rackmount Bracket

    Accessory: ECM25T-0010-MM

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, Male/Male, 10-ft. (3.0-m)

    Standard RS-232 Low-Noise Cable, 25 Conductors—Pins 1–25, M/M, 10-ft. (3.0-m)
