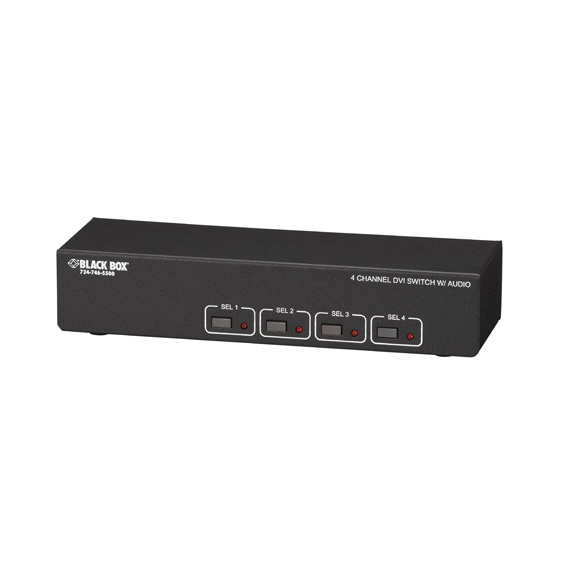

AC1032A-4A

Photo may show similar product

Other views

DVI Switch with Audio and Serial Control, 4-Channel

Switch between DVI-D (digital) video ports locally or via a serial connection—and enjoy audio, too.

AC1032A-4A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Switch video and audio from multiple DVI-D-equipped devices like PCs to a common DVI-D display.
  • HDCP compliant. Use to switch among HDCP inputs.


  • Description

    DVI Switch with Audio and Serial Control, 4-Channel


    Quick Facts

  • Switch video and audio from multiple DVI-D-equipped devices like PCs to a common DVI-D display.
  • HDCP compliant. Use to switch among HDCP inputs.

  • Further Details

  • Resolutions up to 1600 x 1280 on PCs and 1080p on HDTVs.
  • Supports digital video only.
  • Line-level audio inputs transmit clear stereo sound on each channel.
  • Support cabling up to to 65 feet (19.8 m) on the inputs and drive DVI signals as far as 50 feet (15.2 m).
  • Offer convenient remote switching and status monitoring through an RS-232 serial connection.
  • Or you can switch manually on the front panel, or set them up to switch automatically based on input detection.
  • Recall previous settings upon power-up.
  • Compact with a rugged, fully shielded metal enclosure.
  • LEDs show port selection.
  • Package includes switch, manual, and power supply.

  • Ideal for controlling presentations that require high-quality audio, these HDCP-compliant switches give you the option of switching between two or four single-link DVI video channels from a serial console.

    NOTE: Even though the switch physically has DVI-I ports, it will only support digitial video signals.

    This product works with:
    • DVI Cable
    Questions? Contact our FREE Tech Support.


    Technical Specifications for DVI Switch with Audio and Serial Control, 4-Channel:

    Distance (Maximum) Input: 65 ft. (19.8 m);
    Output: 50 ft. (15.2 m)
    Resolution (Maximum) 1600 x 1200 or HDTV up to 1920 x 1080p
    Standards DVI-D single-link
    Connectors Both: Serial: (1) DB9 F (RS-232);
    AC1032A-2A: Video in: (2) DVI F;
    Video out: (1) DVI F;
    Audio in: (2) 3.5-mm mini stereo jacks;
    Audio out: (1) 3.5-mm mini stereo jack;
    AC1032A-4A: Video in: (4) DVI F;
    Video out: (1) DVI F;
    Audio in: (4) 3.5-mm mini stereo jacks;
    Audio out: (1) 3.5-mm mini stereo jack
    Indicators Per port LEDs
    Power Input: 100–240 VAC, 50–60 Hz with universal plug kit;
    Output: 6 VDC
    Size AC1032A-2A: 1.3"H x 8.4"W x 2.6"D (3.3 x 21.3 x 6.6 cm);
    AC1032A-4A: 1.7"H x 8.4"W x 2.7"D (4.3 x 21.3 x 6.9 cm)
    Weight AC1032A-2A: 1.1 lb. (0.5 kg);
    AC1032A-4A: 1.8 lb. (0.8 kg)

    NOTE: If you need analog/VGA support without audio, check out the Black Box AC1031A-R2-2 and AC1031A-R2-4.

    This product works with:
    • DVI Cable
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
