Video & Multimedia > Extenders


click photo to enlarge

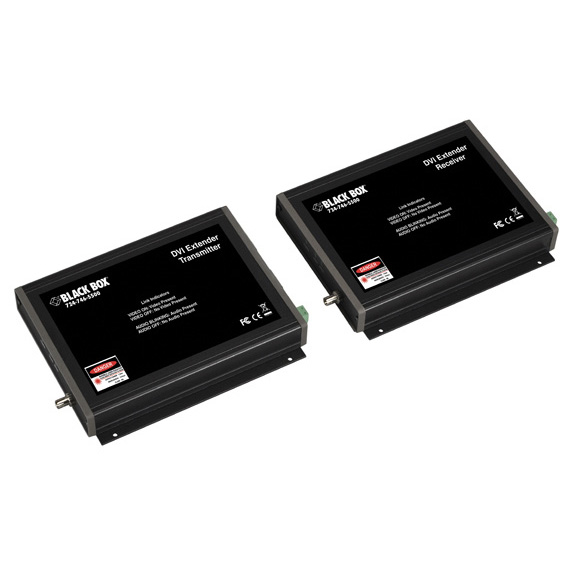

AC1037A

Photo may show similar product

Other views

DVI-D and Stereo Audio FIber Extender Kit, Single-Mode

Extend DVI multimedia over just a single fiber—and display video on two remote displays!

AC1037A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Transmits single-link DVI and stereo audio over a single-mode fiber with no deskewing or compression.
  • Kit includes a transmitter, receiver, and two power supplies.


  • Description

    DVI-D and Stereo Audio FIber Extender Kit, Single-Mode


    Quick Facts

  • Transmits single-link DVI and stereo audio over a single-mode fiber with no deskewing or compression.
  • Kit includes a transmitter, receiver, and two power supplies.

  • Further Details

  • Receiver unit features dual DVI outputs for connecting two DVI displays.
  • No video distortion! Advanced input circuit equalizes and reclocks noisy input signals.
  • Supports up to 1920 x 1200 at 165 MHz.
  • DVI screens can be linked up to 45 feet (13.7 m) from the kit‘s outputs.
  • Enables you to distribute content to the public and keep the video sources locked away in a secure location.
  • RoHS compliant.

  • Use secure, ultra-clear fiber to extend DVI video and stereo audio to the edges of your digital signage or multimedia network with the BLACK BOX® DVI Fiber Extender Kit.

    Ideal for broadcast applications or anywhere you need send high-definition video and stereo audio at great distances, this fiber extender kit transmits single-link DVI resolutions up to 1920 x 1200—without any image skewing. Because it does this over a single fiber, you use your optical media more economically!

    Use the system, for instance, in office lobbies, airports, health care or educational settings, theaters, or retail PoS environments. By deploying DVI video in your application, you get bolder, truer colors and sharper images than conventional CRT or other analog displays, and you make better use of graphics processors at the PC end.

    What‘s more, the DVI Fiber Extender Kit supports distances up to 15 kilometers (9.3 miles)—much farther than what‘s possible with ordinary copper-based technology. And because the system uses all-digital processing and transmission, you're ensured the highest DVI video and audio clarity at the end of the fiber link.

    Even better, the extender's receiver unit has two DVI outputs, so you can display the same image from your PC on two high-definition panels—and, in the process, reach a larger audience!

    The system is easy to set up. No fine-tuning of the image is necessary. You just connect your PC to the DVI input on the transmitter unit and connect the display devices via DVI connectors on the receiver unit. Audio input and output are through stereo jacks on both transmitter and receiver boxes.

    To monitor video on the local side, simply plug in a DVI-compatible screen via the loop-through input on the transmitter unit. This output display, as well as those linked remotely, can be up to 16 feet (5 m) from the DVI Fiber Extender system.

    The DVI Fiber Extender Kit brings a higher level of security to your application, too. Simply lock the PC-based video source in a control room as far as 45 feet (13.7 m) from the transmitter and set up the loop-through monitor in an area easily viewable by others. There's no PC or other video source at the remote end to be tampered with, and fiber optic cable is extremely difficult to tap.

    Fiber also provides extremely reliable data transmission. It's completely immune to many environmental factors that affect copper cable, such as electromagnetic interference and radio-frequency interference (EMI/RFI). For this reason, this system can be used in areas with a lot of interference-emitting equipment.

    It also benefits broadcast applications where you want to keep a noisy PC away from the audio pickups in the studio, as well as any area where there simply isn't room for both a PC and a display.

    This kit works with:
  • Digital Visual Interface (DVI) Cable (EVNDVI01)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for DVI-D and Stereo Audio FIber Extender Kit, Single-Mode:

    Audio Channels (2) unbalanced
    Audio Crosstalk 100 dB (1 kHz)
    Audio Impedance Input: >24 kohms;
    Output: <1 ohm
    Audio Level (Maximum) +10 dBu
    Color Space Format Supported RGB or Y-Pr-Pb
    Distance (Maximum) Fiber interconnect: 9.3 mi. (15 km);
    Input (from PC to transmitter unit): 45 ft. (13.7 m);
    Output (to local loop-through display or remote displays): 16 ft. (5 m)
    Fiber Loss Budget 0-15 dB
    Fiber Type 8 to 10/125-µm single-mode
    Fiber Wavelength 1300 to 1600 nm
    Pixel Clock Range 25-165 MHz, continuous
    RoHS Yes
    Video Channels (1) single-link DVI-D up to 1920 x 1200
    Video Processing 24 bits, no compression or scaling
    Video Scanning System Supported Progressive or Interlaced
    CE Approval Yes
    Power Input: 100-240 VAC, 50-60 Hz, autosensing, with U.S. plug;
    Output: 12 VDC
    Connectors Transmitter unit: Video input: DVI-D or DVI-I (digital signal only) single-link; Video output: (1) DVI (in loop-through EDID DDC mode); Interconnect: (1) ST® (single fiber); Audio input: (1) stereo jack;
    Receiver unit: Output: (2) DVI; Interconnect: (1) ST (single fiber); Audio output: (1) stereo jack
    Size Each unit: 1.2"H x 8"W x 6.5"D (3 x 20.3 x 16.5 cm)
    Weight Each unit: 1 lb. (0.5 kg)
    This kit works with:
  • Digital Visual Interface (DVI) Cable (EVNDVI01)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for DVI-D and Stereo Audio FIber Extender Kit, Single-Mode:

    Manuals

    • DVI Video with Stereo Audio Fber Optic Transmission System
      Installation/User Guide (Jul-07)

    Product Data Sheets

    Application Diagrams


    Connect your DVI-D and Stereo Audio FIber Extender Kit, Single-Mode with:

    Accessory: EVNDVI01-0006

    Digital Visual Interface (DVI) Cable, DVI-A Male, Straight Hood/VGA HD15 Male, 6-ft. (1.8-m)

    Digital Visual Interface (DVI) Cable, DVI-A Male, Straight Hood/VGA HD15 Male, 6-ft. (1.8-m)
