Digital Signage & Multimedia > Video Infrastructure

click photo to enlarge

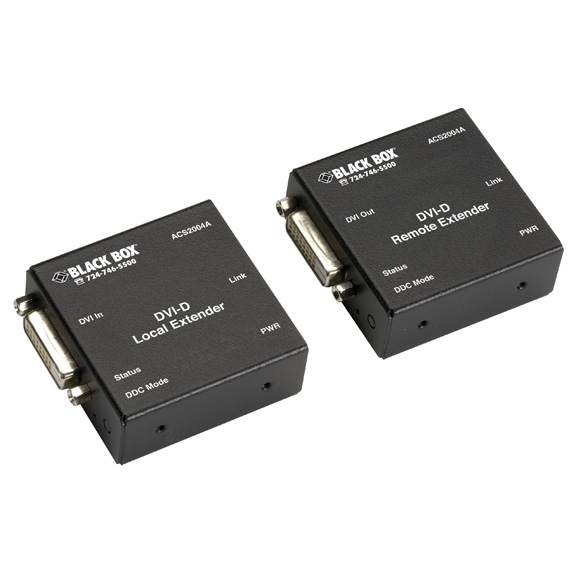

ACS2004A

Photo may show similar product

Other views

DVI-D Single Link Fiber Extender

Extend high-resolution single-link DVI-D video for digital signage up to 400 meters.

ACS2004A

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Extends high-res DVI-D video up to 400 meters (1312 ft.) over just one fiber.
  • No compression and no delay.
  • Resolutions from 640 x 480 to 1920 x 1200.
  • Supports HDTV 1080p.

  • Description

    DVI-D Single Link Fiber Extender


    Quick Facts

  • Extends high-res DVI-D video up to 400 meters (1312 ft.) over just one fiber.
  • No compression and no delay.
  • Resolutions from 640 x 480 to 1920 x 1200.
  • Supports HDTV 1080p.

  • Further Details

  • Ultra compact for discrete installation.
  • Transparent or emulated EDID and HDCP support.
  • Easy to install.

  • The DVI-D Single Link Fiber Extender is compact and easy to install but packed with features to optimize your picture quality. The ACS2004A is perfect for digital signage. It can transmit to a full 400 meters at 1920 x 1200 using just a single simplex multimode 50-micron fiber.

    Transmission is totally transparent with no compression and no delay, so you will experience no loss of picture quality. DDC is also transmitted transparently for a quick and easy installation with no DDC troubleshooting required. In fact, this compact unit is completely plug-and-play, with no set-up or adjustments needed.

    This extender is ideal for a wide range of applications, from digital signage to industrial automation and control. Use the ACS2004A in any DVI extension application where video quality is paramount and space and fiber are at a premium.


    Technical Specifications for DVI-D Single Link Fiber Extender:

    Compatible Cable — 50-/125-µm multimode fiber, OM3 preferred;
    Link distance using 62.5-/125-µm fiber is reduced to 576 ft. (180 m)
    Emulation Mode — Supports extended EDIDs up to 256 bytes
    Housing — Metal, black powder-coated
    Distance (Maximum) — 1280 ft. (400 m)
    Optical Wavelength — 6 ch. CWDM 725–925 nm
    Output Laser Class — TX unit: 1M; RX unit: 1
    Pixel Rates — Supports DVI 1.0 single-link signals with pixel rates from 25 MHz to 165 MHz
    Transparency Mode — EDID, including HDCP® support on most sources
    User Controls — TX unit: (1) pushbutton for EDID mode select;
    Interface: (1) TX; (1) RX
    Connectors — TX interface: (1) DVI-D (24 + 1 pin), (1) HDMI (via optional adapter), (1) SC, (1) 2.1/5.5-mm barrel connector for power;
    RX interface: (1) DVI-D (24 + 1 pin), (1) HDMI (via optional adapter), (1) SC, (1) 2.1/5.5-mm barrel connector for power
    Indicators — TX interface: (1) multicolor LED shows signal presence and mode: Blue: Transparent; Green: EDID; Red flashing: EDID read incorrect; Green flashing: EDID read OK;
    RX interface: (1) multicolor LED shows link quality and operation mode: Green: Link OK; Red flashing: No link
    Power — (2) wall adapters: Input: 120 VAC, 60 Hz or 230 VAC, 50 Hz;
    Output: 5 VDC, 0.5 A, 2.5 W on barrel connector, 2.1/5.5 mm positive on inner contact (local unit usually does not require a power supply because it draws power from the DVI interface)
    Size — 1.5"H x 2.2"W x 2.2"D (2 x 5.5 x 5.5 cm)
    Weight — Each unit: 0.2 lb. (0.1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
