Video & Multimedia > Switches

click photo to enlarge

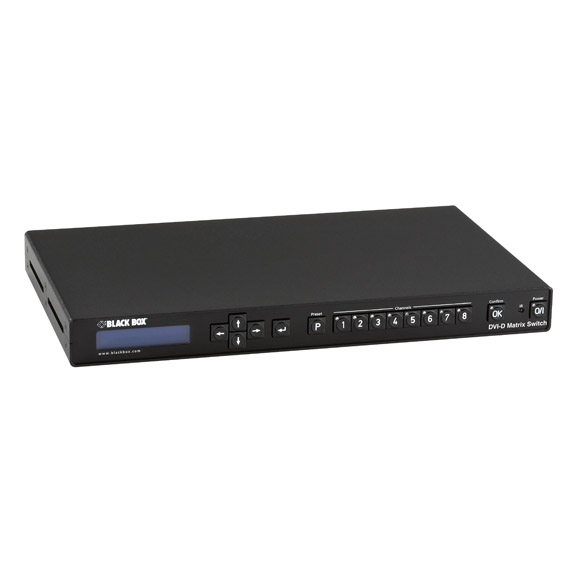

XPT-DVI8X8

Photo may show similar product

Other views

DVI-D Matrix Switch, 8 x 8

High-resolution, 8 x 8 switching for your demanding DVI video applications.

XPT-DVI8X8

Extended Double Diamond™ Warranty Available
(Three years for two)

Product Highlights

  • Easily route video from eight DVI sources to eight DVI display devices (LCDs, plasma screens, projectors).
  • Supports resolutions up to 1920 x 1200 at 60 Hz, including 1080p HDTV displays.
  • Links to DVI sources up to 114.8 feet (35 m) away without any video degradation.

  • Description

    DVI-D Matrix Switch, 8 x 8


    Quick Facts

  • Easily route video from eight DVI sources to eight DVI display devices (LCDs, plasma screens, projectors).
  • Supports resolutions up to 1920 x 1200 at 60 Hz, including 1080p HDTV displays.
  • Links to DVI sources up to 114.8 feet (35 m) away without any video degradation.

  • Further Details

  • Each video input port supports EDID emulation for optimized source-to-display communications.
  • User friendly. Easy to configure through its front-panel display interface.
  • Control via a TCP/IP Ethernet or RS-232 connection, or using its front panel.
  • Works in point-to-point or multipoint applications.
  • Ideal for digital signage, broadcasting studio, multimedia conference, and classroom applications.
  • Slim design. Includes hardware for mounting in 1U of rack space.
  • RoHS compliant.

  • Distribute digital video from eight PCs, servers, DVD players, HDTV players, or other DVI sources to eight DVI displays or projectors with the Black Box® DVI-D Matrix Switch, 8 x 8.

    Any input can be directed to any output, making the switch the ideal solution for point-to-point to multipoint applications. It’s particularly useful in any digital signage or distributed video application whether you need to frequently reroute source input for screen output—whether at the switch itself or from a remote console on a network.

    The DVI-D Matrix Switch supports resolutions from 640 x 480 up to 1920 x 1200 at 60 Hz, including HDTV resolutions of 720p, 1080i, and 1080p. Use it anywhere you need high-definition video switching, such as multimedia conference rooms and healthcare imaging applications, and government command and control centers.

    The system can be used with the newest panels featuring EDID capabilities, so your source devices can optimize video for the connected displays. Each video input port on the matrix switch supports EDID emulation. Plus, it supports HDCP feed-through in point-to-point applications.

    It even works as an DVI extender to source devices. A built-in equalizer preserves video quality on long runs from the switch to your PCs, servers, or media players—which can be as far as 114.8 feet (35 m) away. This makes the DVI-D Matrix Switch great for remote display or digital signage applications where you want to distribute images from a central secure room to public or non-secure areas.

    The DVI-D Matrix Switch offers easy configuration and control. Its 2-line, vacuum-fluorescent display with an intuitive menu leads you through video switch settings and monitors the status of each port. To switch, use its 16 front-panel push buttons, a serial RS-232 console link, or a 10-/100-Mbps Ethernet TCP/IP network. It features a built-in Web server and uses ICMP (ping) and Telnet for remote control.

    What’s included:
  • DVI-D Matrix Switch
  • Power cord
  • (4) black rubber stick-on feet
  • Set of 19" rackmount ears with (8) screws
  • RS-232 cable, DB9 male/DB9 female, 6.5-ft. (2-m)
  • User manual

    As a replacement, you may also need:
  • DVD-D Matrix Switch Spare Rackmount Ears (XPT-DVIEAR)
    Questions? Contact our FREE Tech Support.

  • Technical Specifications for DVI-D Matrix Switch, 8 x 8:

    Resolution (Maximum) — 640 x 480 to 1920 x 1200 at 60 Hz
    Video Format — DVI single-link, supporting the maximum TDMS rate of 165 MHz
    CE Approval — Yes
    Connectors — Video in: (8) DVI-D;
    Video out: (8) DVI-D;
    Serial control: (1) DB9 M (RS-232);
    Network control: (1) RJ-45
    Power — Input: 90–264 VAC, 47–63 Hz; 40 W maximum
    Size — 1.7"H x 17.2"W x 10.3"D (4.3 x 43.7 x 26.2 cm)
    Weight — 6.4 lb. (2.9 kg)
    As a replacement, you may also need:
  • DVD-D Matrix Switch Spare Rackmount Ears (XPT-DVIEAR)
    Questions? Contact our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for DVI-D Matrix Switch, 8 x 8:

    Manuals

    • DVI-D Matrix Switch User Manual
      User Manual for XPT-DVI4X4, XPT-DVI4X8, XPT-DVI8X4, XPT-DVI8X8, XPT-DVI+4, and XPT-DVIEAR (1)
