AC2000A

Photo may show similar product

Other views

DVI-D Extender with Audio and EDID

Extend DVI and EDID monitor info up to 300 feet over CAT5e or CAT6 cable!

AC2000A

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Transmits PC video up to 300 feet (91.4 m) over CAT6 cables and 200 feet (60.9 m) over CAT5e cables. Supports 1920 x 1080 PC resolutions at shorter distances.
  • For HDTV, it extends 1080p video up to 150 feet (45.7 m) over CAT6 and 100 feet (30.4 m) over CAT5e. Lower HD resolutions (480p to 1080i) go farther, up to 300 feet over CAT6.


  • Description

    DVI-D Extender with Audio and EDID


    Quick Facts

  • Transmits PC video up to 300 feet (91.4 m) over CAT6 cables and 200 feet (60.9 m) over CAT5e cables. Supports 1920 x 1080 PC resolutions at shorter distances.
  • For HDTV, it extends 1080p video up to 150 feet (45.7 m) over CAT6 and 100 feet (30.4 m) over CAT5e. Lower HD resolutions (480p to 1080i) go farther, up to 300 feet over CAT6.

  • Further Details

  • Reads Extended Display Identification (EDID) information from a monitor connected to either the local DVI output port or the DVI port on the remote unit, optimizing the display to the fullest capability of the video card.
  • EDID information can also be learned or set to a default.
  • EDID info learned from an output device can be used to emulate that actual device.
  • Multiple control methods, including locally from the front panel or remotely using serial commands or its GUI software.
  • Download EDID info from a PC using the CLI.
  • Also drives stereo audio and bidirectional RS-232 serial data over long cable runs.

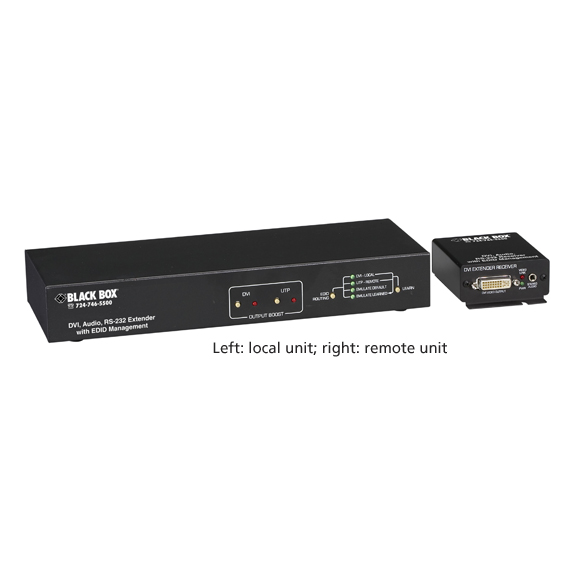

  • What's included:
  • (1) local unit
  • (1) remote unit
  • (1) serial control adapter


  • Technical Specifications for DVI-D Extender with Audio and EDID:

    MTBF 90,000 hours (est.)
    Video Level 0 to 0.7V p-p
    Connectors Local unit: Video: Input: (1) DVI-D; Output: (1) DVI-D;
    Remote unit: Video: Output: (1) DVI-D;
    Both units: Audio: Input: (1) 3.5-mm mini-stereo; Output: (1) 3.5-mm mini-stereo; Interconnect: (2) RJ-45; Serial: (1) Terminal Block for RS-232
    Power 100-240 VAC, 50-60 Hz, 0.3 A
    Size 1.7"H x 11.25"W x 4.1"D (4.3 x 28.5 x 10.4 cm)
    Weight 2.1 lb. (1 kg)


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for DVI-D Extender with Audio and EDID:

    Manuals

    • DVI, Audio, RS-232 Extender With EDID Management
      Installation/User

    Product Data Sheets

    Application Diagrams


    Connect your DVI-D Extender with Audio and EDID with:

    Accessory: AC1035A-R2

    DVI-D Digital Video Extender Kit

    DVI-D Digital Video Extender Kit

    Accessory: FOT200-R2

    Fiber Optic Connector, Ceramic Ferrule, ST Single-Mode Simplex, 126–µm/0.9-mm/2.0-mm/3.0-mm

    Fiber Optic Connector, Ceramic Ferrule, ST Single-Mode Simplex, 126–µm/0.9-mm/2.0-mm/3.0-mm
