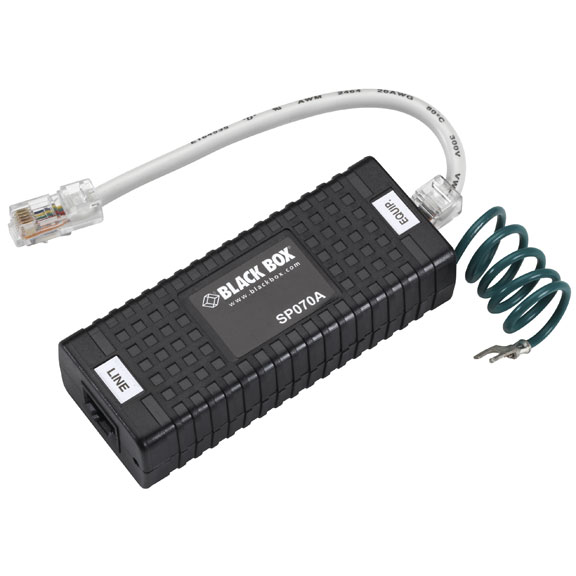

SP070A

Photo may show similar product

Other views

DSL Surge Protector

Protect your DSL channel: Transform it into a Don’t Surge Line.

SP070A

Extended Double Diamond™ Warranty Available
(10 Year)

Product Highlights

  • Provides 6-wire RJ-11, all-pin protection.
  • Defends against surges, power interference, ground loops, and discharges.
  • High-speed, high-energy handling capability.
  • Compact, for simple in-line installation.
  • Low shunt capacitance reduces signal loss.
  • Guaranteed for life!


  • Description

    DSL Surge Protector


    Quick Facts

  • Provides 6-wire RJ-11, all-pin protection.
  • Defends against surges, power interference, ground loops, and discharges.
  • High-speed, high-energy handling capability.
  • Compact, for simple in-line installation.
  • Low shunt capacitance reduces signal loss.
  • Guaranteed for life!

  • Further Details

    The BLACK BOX® DSL Surge Protector guards your sensitive 6-wire RJ-11 DSL data lines against lightning-induced surges, AC power interference, electrostatic discharge (ESD), and ground loop energies.

    State-of-the-art high-speed avalanche diode and thyristor technology is used with low-shunt capacitance circuitry. These enable the protector to function at a much greater bandwidth without causing signal degradation.

    Installation is simple. Just insert the unit in series between the incoming data line and the I/O port of the device being protected. A self-resetting circuit means no maintenance is required.


    Technical Specifications for DSL Surge Protector:

    Clamping Voltage 240 V peak
    Maximum Shunt Capacitance <95 pF
    Peak Pulse Current 75 A
    Response Time <5 ns
    CE Approval Yes


    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.


    Resources for DSL Surge Protector:

    Manuals

    • DSL Surge Protector Manual
      Manual for SP070A (Version 1)


    Connect your DSL Surge Protector with:

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Add to Cart

    Price: $58.95

    Quantity Available: 18

    Quantity

    Warranty

    Total

    Shipping Info

    Weight: 0.028 lbs.
    HxWxD: 2.25 x 3 x 5 in.
