KVM > HD Video & Peripheral Matrix Switching


click photo to enlarge

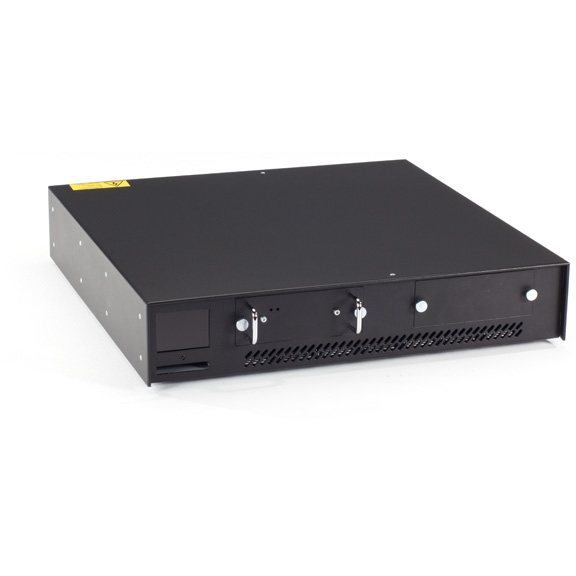

ACX0000

Photo may show similar product

Other views

DKM HD Video and Peripheral Matrix Switch Traditional Empty Chassis and (1) Power Supply

Ideal for DKM configurations with fiber extensions.

ACX0000

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • No OSD cards or I/O cards populate this DKM chassis.
  • Supports USB keyboard and USB mouse KVM extension.
  • Maximum resolution of 1920 x 1200 at 60 Hz.


  • Description

    DKM HD Video and Peripheral Matrix Switch Traditional Empty Chassis and (1) Power Supply


    Quick Facts

  • No OSD cards or I/O cards populate this DKM chassis.
  • Supports USB keyboard and USB mouse KVM extension.
  • Maximum resolution of 1920 x 1200 at 60 Hz.

  • Further Details

  • Uses CATx cabling, or single- or multimode fiber, and extends signals up to 10 kilometers (6.2 mi.).
  • Need (1) OSD board (ACXOSD) for every 8 users.

  • Virtually instantaneous switching and the transmission of high-quality DVI-D signals are what make the Black Box® DKM HD Video and Peripheral Matrix switching system a milestone in innovative KVM switching.

    DKM is a crosspoint matrix switch that supports DVI-D, and transmits DVI-D, VGA, USB Human Interface Device (HID), USB 2.0, stereo analog or digital audio, and RS-232 signals.
    Extend KVM signals up to 460 feet (140 m) over CATx, up to 400 meters (1312.3 ft.) over multimode fiber, or up to 10 kilometers (6.2 mi.) over single-mode fiber.


    What's included:
  • (1) DKM switch with (1) internal power supply
  • (2) 6-ft. (1.8-m) U.S. power cords
  • (1) 32-button IR remote control
  • (1) 6-ft. (1.8-m) DB9 M/F serial cable
  • (2) rackmount ears with (10) mounting screws
  • CD ROM with user's manual

  • Technical Specifications for DKM HD Video and Peripheral Matrix Switch Traditional Empty Chassis and (1) Power Supply:


    This product works with:
  • DKM DVI-D KVM On-Screen Display Circuit Board (ACXOSD)


    NOTE: Transmitters and receivers can be copper or fiber based. Computer and expansion cards can also be copper or fiber based.

    These new DKM components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your ServSwitch DKM setup, call our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.

  • Resources for DKM HD Video and Peripheral Matrix Switch Traditional Empty Chassis and (1) Power Supply:

    Manuals

    • ServSwitch DKM User Manual
      User Manual for the ACX0000, ACX0808, ACX0816, ACX0824, ACX0832, ACX1616, ACX1624, and ACX1632 (Version 2)

    Visio Stencils

    • Visio Stencil
      Stencil Drawings


    Connect your DKM HD Video and Peripheral Matrix Switch Traditional Empty Chassis and (1) Power Supply with:

    Accessory: ACX8OSD

    DKM DVI-D KVM On-Screen Display (OSD) Circuit Board

    DKM DVI-D KVM On-Screen Display (OSD) Circuit Board

    Double Diamond Warranty

    Standard Manufacturer's Warranty


    A warranty is included.

    Extended 3 Year Warranty Available


    Protect your purchase with an additional 3 Year Double Diamondâ„¢ warranty!
    Cost: $1,666.99

    Diamond

    Double Diamond™ Warranty (Standard)

    Coverage:

    Take the risk out of equipment purchases with the Double Diamond™ Warranty from Black Box Network Services.


    The Double Diamond Warranty is our no-questions-asked warranty that protects your Black Box® brand products* from accidental damage, including drops, water, and power surges.

    Most of our products come with a one- or two-year warranty. Some products—such as copper cables, manual switches, cabinets, and racks—are even guaranteed for life!

    During the warranty period, Black Box Network Services will repair or replace your damaged equipment within one week of receipt at NO CHARGE!

    Plus, get an Extended Double Diamond Warranty.


    You can also extend your warranty or protect a previously purchased Black Box® brand product* for an additional year—for only 10% of the purchase price! Or, extend your coverage for a full three years for only 20% of the purchase price!

    Ordering an extended warranty is easy: When viewing a product in your shopping cart, just select the one or three years of additional coverage in the dropdown menu under “Warranty Options.” For details, contact Customer Service at 724-746-5500.

    * Certain products may not be eligible.

    Warranty Compared

    Black Box® Double Diamond™ Warranty The Competition
    Warranty Length One Year to Lifetime, Depending on the Product. Read the fine print.
    Guaranteed for Life! Black Box® Brand Copper Cables, Manual Switches and More! No.
    Accidental Damage 100% Covered! No.
    Water Damage 100% Covered! No.
    Power Surges 100% Covered! No.
    Warranty Replacements No Questions Asked! ?
    Tech Support Hotline 100% FREE! $$$

    What’s more, we also have a 45-day, no-questions-asked return policy. Simply call Customer Service for a Return Authorization (RA) number, return your product in new condition and in the original package, and receive a full refund.

    You can find this product in the following subcategory(s)


    Call for Pricing

    Quantity Available: 1

    To customize your order, please call

    1-877-877-2269.


    We answer in 30 seconds.

    Shipping Info

    Weight: 25 lbs.
    HxWxD: 8.75 x 22 x 22 in.
