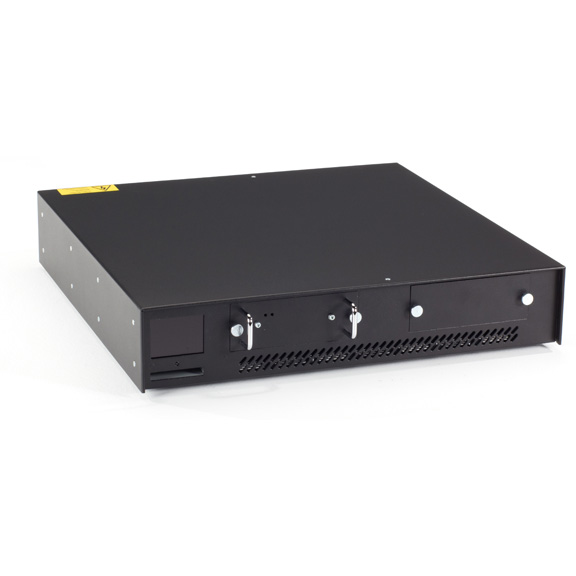

DKM HD Video and Peripheral Matrix Switch, 16 Users to 24 CPUs

One switch that does it all — four modes of switching, plus extension over CATx or fiber.

ACX1624

Extended Double Diamond™ Warranty Available
(3 Additional Year)

Product Highlights

  • Virtually instantaneous switching ensures seamless signal delivery.
  • Four switching modes—matrix, single-head, dual-head, and quad-head.
  • Supports high-resolution DVI-D and USB-style keyboard/mouse, plus USB peripheral and audio options.
  • Maximum resolution of 1920 x 1200 at 60 Hz.


  • Description

    DKM HD Video and Peripheral Matrix Switch, 16 Users to 24 CPUs


    Quick Facts

  • Virtually instantaneous switching ensures seamless signal delivery.
  • Four switching modes—matrix, single-head, dual-head, and quad-head.
  • Supports high-resolution DVI-D and USB-style keyboard/mouse, plus USB peripheral and audio options.
  • Maximum resolution of 1920 x 1200 at 60 Hz.

  • Further Details

  • Uses CATx cabling, or single- or multimode fiber, and extends signals up to 10 kilometers (6.2 mi.).
  • Connects via ServSwitch DVI CATx KVM Extenders (ACS4001A-R2) or ServSwitch DVI Fiber Optic Extenders (ACS4001A-R2-SM), or other CATx and fiber extenders.
  • Available in 19" housings for high-density applications.
  • Virtually instantaneous switching and the transmission of high-quality DVI-D signals are what make the Black Box® DKM HD Video and Peripheral Matrix switching system a milestone in innovative switching and extension.

    DKM is a scalable matrix switch that supports DVI-D and transmits USB Human Interface Device (HID), stereo audio, and RS-232 signals.
    Extend KVM signals up to 460 feet (140 m) over CATx, up to 400 meters (1312.3 ft.) over multimode fiber, or up to 10 kilometers (6.2 mi.) over single-mode fiber.

    Certain modes of the single-head KVM switching support a transparent serial interface at up to 19 kbps and hardware handshaking. Use it to control a single device requiring a full hardware handshaking or up to three devices without handshaking. In dual-head mode, devices support TxD and RxD only, with no hardware handshaking.

    The DKM features hotkey controls and an on-screen display (OSD). Use the OSD to name connected devices and configure the system. A front-panel display with remote control is also available. Switching can be done remotely via the RS-232 serial interface or the TCP/IP interface.

    For ultimate plug-and-play support, DKM has DDC read capability to receive true EDID information from the attached displays. The digital DKM does not need skew compensation like analog KVM switches do; the maximum video resolution is supported over the full distance.

    Setup and Operation Modes
    You can configure the DKM HD Video and Peripheral Matrix Switch in several ways. Connect the switch to CATx or fiber cabling, which then connects to the CPU/server with a local transmitter and, on the other side, connects to a receiver at the USB keyboard/mouse/monitors (user stations).

    Matrix (crosspoint) switching
    The DKM switch can be configured as 16 input to 8 output ports. Transmitters are installed at each of the CPUs, and DVI-D, serial, and audio signals go up to 10 kilometers (62 mi.) depending on the cabling used. Control the switch with the serial (RS-232) port or via the built-in Web interface. The matrix switch mode is especially ideal for post-production and digital signage applications.

    KVM switch
    The 8-by-16 DKM switch operates as a KVM switch in three configurations: 8 users to 16 CPUs (single-head); 4 users to 8 CPUs (dual-head); and 2 users to 4 CPUs (quad-head). When used as a KVM switch, the DKM is cascadable: single-head, up to 1024 ports from one monitor; dual-head, up to 256 ports from two monitors; quad-head, up to 64 ports from four monitors.

    Share Mode
    Share Mode enables more than one user to have access to the same CPU at the same time. This is ideal in classrooms or conference rooms where an instructor or a presenter wants to use a laptop and a projector. It also gives an IT administrator access to a user's monitor for troubleshooting or applying updates.

    Additionally, the switch enables port locking, meaning you can partner ports and ensure they switch in tandem. This way, when you switch CPUs, monitors being used in Share Mode follow automatically.



    What's included:
  • DKM switch with (1) internal power supply
  • (2) 6-ft. (1.8-m) U.S. power cords
  • 32-button IR remote control
  • 6-ft. (1.8-m) DB9 M/F serial cable
  • (2) rackmount ears with (10) mounting screws
  • CD-ROM with user's manual

  • Technical Specifications for DKM HD Video and Peripheral Matrix Switch, 16 Users to 24 CPUs:

    CE Approval Yes
    RoHS Yes
    Connectors Console: (8) RJ-45;
    Computer: (16) RJ-45;
    Network: (1) RJ-45 10/100;
    Configuring: (1) DB9 F;
    Power: (2) IEC320 M, C14, dual power inputs
    Power 100 to 240 VAC, 47 to 66 Hz

    NOTE: Transmitters and receivers can be copper or fiber based. Computer and expansion cards can also be copper or fiber based.

    These new DKM components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your ServSwitch DKM setup, call our FREE Tech Support.

    NOTE: Technical specification weight is the unit weight. It is not the packaged shipping weight. For shipping weight, please contact Black Box customer service at 877-877-2269.
